Dorma EM Series Quick Manual

DORMA
Note importante
F
1. La tension d'alimentation doit être suffisante.
Voir la notice de raccordement
2. L'alimentation doit fournir un courant suffisant
3. Ne jamais percer ni modifier le verrouillage EM
ni la contre plaque
Installation type sur une porte en aluminium
F
22
www.dorma.com

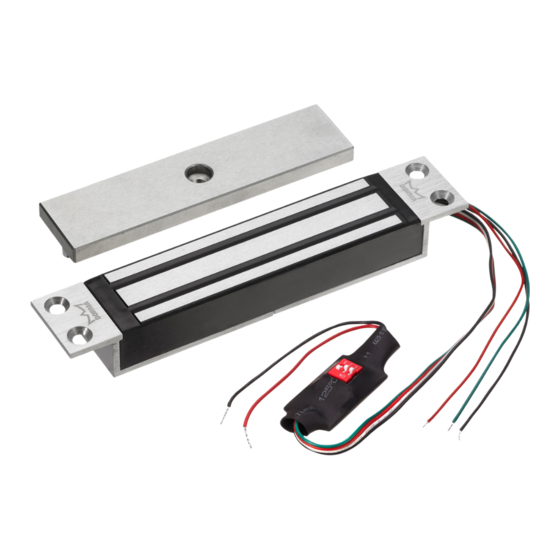

Verrouillages EM
EM 3000-T AM
EM 3000-T NF
Montage externe vissé
36.5
186
OU / OR :
175
15.5
External fixing with screws
Typical installation for aluminium door
1. The power supply has to be enough for the
electromagnet. Look at wiring notice
2. The supply should be able to provide a
sufficient voltage
3. The armature plate and the electromagnet
should no be drilled or modified

Important notice

31
39
187
28
Montage sans vis externe
(par butée vissée)
Montage without external screw
GB
12
GB
