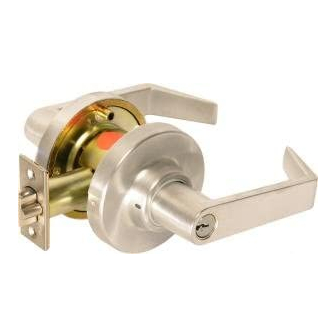

CL800 Series Cylindrical Lever Lock
Installation Instructions

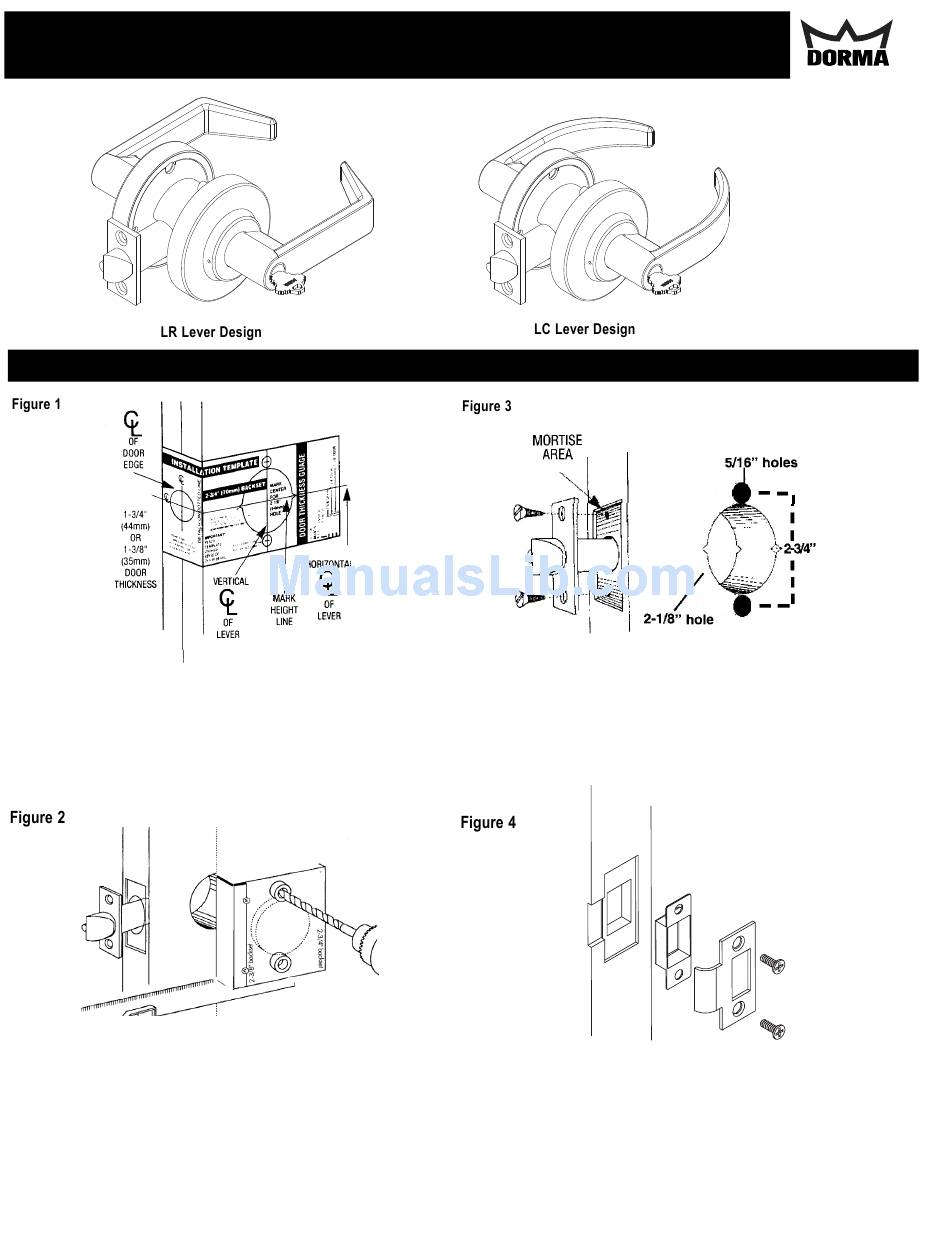

DOOR PREPARATION
DOOR PREPARATION
1. Fold and apply template to high edge of door at desired height
from floor.
2. Mark hole centers on door and door edge.
3. Drill 5/16" thru-bolt first, then drill 2 1/8" hole.
HOLLOW METAL DOORS
Must have horizontal and vertical lock and latch case
support provided by door manufacturer.
1. If 2 1/8" hole exists, use optional DORMA 76002026 Installation Tool
to insure accurate locating and drilling of 5/16" Thru-Bolt holes.
2. For best results, align and clamp the 76002026 tool to door
before drilling.
INSTALL LATCH
1. Drill 1" diameter hole for latch. Mortise for latch front.
(Insert latch and fasten with two screws).
Note: It is important that both 1" and 2 1/8" holes be on
same horizontal center line.
INSTALL STRIKE
1. Align strike with latch.
2. Trace strike outline on door jamb.
3. Mortise jamb and install strike and dust boot.
PAGE 1
CL800 12/0276002009
Advertisement
Table of Contents
Related Manuals for Dorma CL853
Summary of Contents for Dorma CL853
- Page 1 Must have horizontal and vertical lock and latch case INSTALL STRIKE support provided by door manufacturer. 1. If 2 1/8" hole exists, use optional DORMA 76002026 Installation Tool 1. Align strike with latch. to insure accurate locating and drilling of 5/16" Thru-Bolt holes.
- Page 2 2. For 1 3/8" doors Adjust for 1 5/8" door thickness, then install To Adjust For Another Door Thickness spacer rings (Fig. 5). Remove outside lever. NOTE; DORMA rings not included. Part Numbers 76001941[Brass], and 76001942 [Chrome]. Figure 3 3. Reinstall outside lever.
- Page 3 NOTE: When at the maximum counter-clockwise position, turn clockwise 90 degrees Use DORMA tailpieces only. Lock will NOT function with other Insert outside IC core cylinder into lever. tailpieces. Be sure tailpiece is in a vertical orientation.
- Page 4 TROUBLINGSHOOTING Problem Solution NOTES: 1. Lever catch not engaging. Lock may not be centered or door is too thick. Levers pull off 2. Cylinder retainer not flush. 3. Non-standard sized cylinder. 4. Outside rose located improperly. 1. Key orientation incorrect. Unable to assemble 2.
