Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
Instruction No
Instruction No
Version
Version
31307106
31307106
1.0
1.0
IMG-263183
IMG-263183
© Volvo Car Corporation
Part. No.
Part. No.
31307006
31307006
Decor panel, center panel
Decor panel, center panel
Decor panel, center panel- 31307106 - V1.0
Page 1 / 15
Advertisement
Related Manuals for Volvo 31307006
Summary of Contents for Volvo 31307006

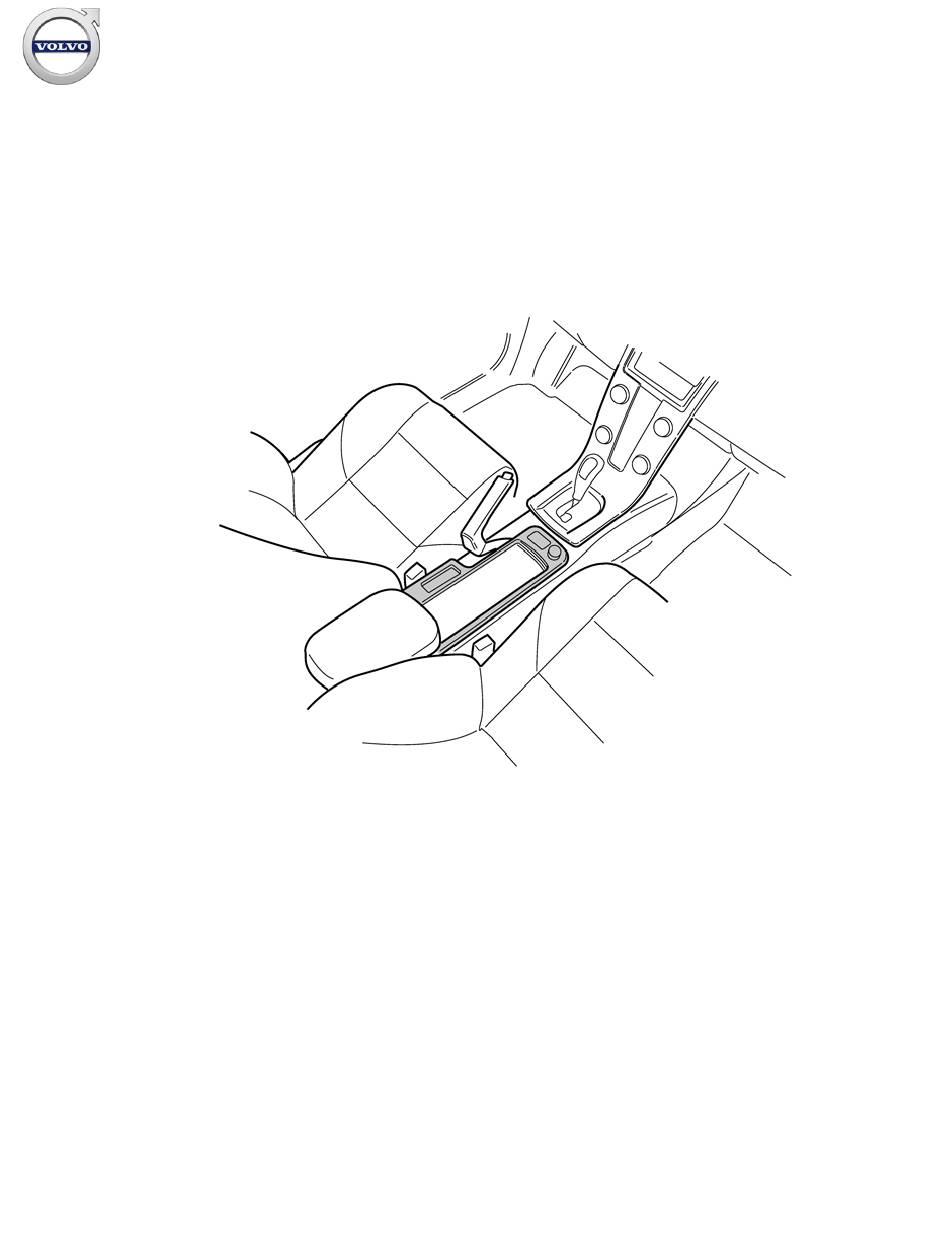

- Page 1 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Instruction No Instruction No Version Version Part. No. Part. No. 31307106 31307106 31307006 31307006 Decor panel, center panel Decor panel, center panel IMG-263183 IMG-263183 © Volvo Car Corporation Decor panel, center panel- 31307106 - V1.0...
- Page 2 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Equipment IMG-345497 IMG-354244 © Volvo Car Corporation Decor panel, center panel- 31307106 - V1.0 Page 2 / 15...
- Page 3 Explanatory text is also given for more complicated steps. In the event of any problems with the instructions or the accessory, contact your local Volvo dealer. Note! Some steps in these installation instructions are presented with illustration only.
- Page 4 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the surround from around the display and media player. Use a small screwdriver and press in the catch in one of the surround's upper corners. Carefully bend loose the surround on the same side with a plastic weatherstrip tool.
- Page 5 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Detach the panel by pulling it carefully sideways. IMG-263205 Fold up the tunnel console's armrest and remove the cover. IMG-263943 © Volvo Car Corporation Decor panel, center panel- 31307106 - V1.0 Page 5 / 15...
- Page 6 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the screws. IMG-263206 Remove the rear seat cushion by first pressing the outer edges of the cushion backwards and then by pulling them upwards so that the outer hooks release. IMG-263944 ©...
- Page 7 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Lift the cushion straight up in the middle so that the inner hooks release. IMG-263945 Remove the rear cup holder from the rear tunnel compartment by prising the front edge and pressing in the two catches.
- Page 8 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the screws. IMG-263947 Remove the rear tunnel compartment by pulling it upward/rearward so that it releases from the hooks. IMG-263948 © Volvo Car Corporation Decor panel, center panel- 31307106 - V1.0...
- Page 9 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the front storage compartment by prying it off at the front edge using a weatherstrip tool and lifting it out. IMG-263949 Carefully lift the catches at the front edge of the tunnel console.
- Page 10 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Pull the bracket backwards approximately 20 mm. IMG-263208 Remove the screws. IMG-263209 © Volvo Car Corporation Decor panel, center panel- 31307106 - V1.0 Page 10 / 15...
- Page 11 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove: the screws the centre stack IMG-263210 Remove the screws. IMG-263211 © Volvo Car Corporation Decor panel, center panel- 31307106 - V1.0 Page 11 / 15...
- Page 12 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Disconnect the large connector, or the dummy, at the front edge of the tunnel console. Lift out the console and turn it upside down. Press in the catches on the switch, or the dummy, and remove.
- Page 13 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-354256 Take the new decor panel from the kit. IMG-354253 © Volvo Car Corporation Decor panel, center panel- 31307106 - V1.0 Page 13 / 15...
- Page 14 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to cars with wood decor panel installed or where existing storage compartments have been transferred Take the front storage compartment and install it. IMG-312784 Take the side storage compartment and install it.
- Page 15 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Press the new decor panel against the tunnel console. Reinstall the detached components in reverse order. IMG-354243 © Volvo Car Corporation Decor panel, center panel- 31307106 - V1.0 Page 15 / 15...
