Crestron UC-SB1-AV Quick Start

UC-SB1-AV
Crestron® Flex UC Smart Soundbar and Camera Solution
The UC-SB1-AV easily upgrades the audio and video capabilities of existing conference rooms
by providing a Microsoft Teams™ or Skype® for Business software-compliant, AEC-enabled
USB speakerphone device (UC-SB1) and high definition 1080p webcam. The UC-SB1-AV can
also be connected to a computer running conference software to convert any space into a
conference space.
Check the Box
Item
UC-SB1-1-AV
UC-SB1 UC Video Conference Smart Soundbar (P/N 6510066)

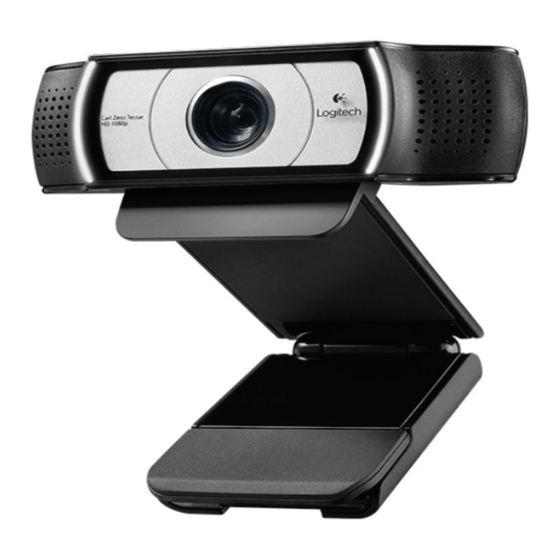

CCS-CAM-USB-F-100 Logitech® Webcam C930e (P/N 6506442)
Additional Requirements
The following items are required to complete the system.
• A computer with conferencing software
• A video display, to be connected to the conference room computer (not included)
Connect the System
UC-SB1 Rear Panel
Qty
1
1
1
• Connect the cable from the webcam to the CAMERA port.
• Connect the included USB cable to the PC port on the UC-SB1 and the
conference room computer.
• Connect the AC power cord to the UC-SB1 AC input and an AC receptacle.
Conference room computer
AC input
Webcam
port on the
