Crestron UC-SB1 Quick Start

UC-SB1 and UC-SB1-CAM
UC Video Conference Smart Soundbars
Crestron® UC Video Conference Smart Soundbars (UC-SB1 and UC-SB1-CAM) are designed to provide speakerphone capabilities for use in a Bring
Your Own Device (BYOD) small to medium-sized meeting space. The soundbars feature a built-in microphone, speakers, and camera (UC-SB1-CAM
only).
NOTE:
With the exception of the integrated camera, the UC-SB1 and UC-SB1-CAM have similar features. For simplicity within this guide, the term
"soundbar" is used for both models except where noted.
Check the Box
Item
UC-SB1 and UC-SB1-CAM
Anchor, Drywall, Plastic, 3/8 in. x 1/2 in. (P/N 2052565)
Cable, USB 3.0, A - B, 6 ft (1.83 m) (P/N 2053077)
Foot, 2.3 in. x 0.96 in. x 0.15 in., Rubber (P/N 2052169)
Key, Anchor (P/N 4529654)
Power Cord (P/N 2052498)
Screw, 8-AB x 1-1/2 in., Pan Head, Combo (P/N 2052567)
Template, Overlay (P/N 4529513)

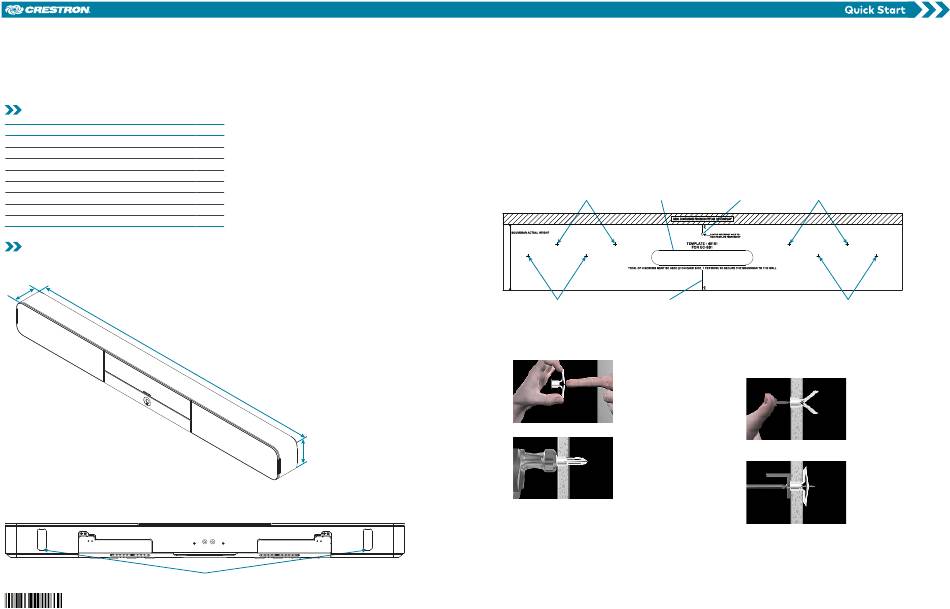

Install the Soundbar
The soundbar can be placed on a flat surface or mounted on a wall. The soundbar has the following dimensions:
Dimensions (UC-SB1-CAM shown)
3.90 in.
(99 mm)
43.60 in.
(1107 mm)
Place on a Flat Surface
If placing the soundbar on a flat surface, attach the included rubber feet to the bottom of the soundbar as shown in the following diagram.
Attach Rubber Feet (UC-SB1 shown)
Attach feet here
Qty
1
4
1
2
1
1
4
1
4.57 in.
(116 mm)
Mount on a Wall
The soundbar includes anchors that are suitable for use on sheetrock walls up to 1/2 in. thickness. Masonry and other materials may require
additional installer-supplied mounting hardware.
NOTES:
• For optimal viewing results, the UC-SB1-CAM should be mounted in a location that places the camera approximately 12 in. above the plane of
the room's conference table.
• When mounting on a wall beneath a display device, leave 3/4 in. (minimum) clearance above the top of the soundbar. Use the included
template to allow for sufficient clearance between the soundbar and display device.
The following tools are required to mount the soundbar:
• Drywall saw (not included)
• Drill with 5/16 in. bit (not included)
To mount the soundbar on a wall:
1. The included template provides drill hole locations for the wall mount hardware. Using the center reference hole of the template as a guide,
attach the template to the desired mounting location with the center reference line of the template at the center of the desired location.
NOTE: The cutout in the center of the template should provide adequate access for all of the required cabling.
Drill one of these two holes Cutout for soundbar cables
Drill one of these two holes Center reference line
2. Drill two pilot holes on each side of the center reference line as shown in the diagram above. Each side should have one pilot hole drilled in
each row of the template.
3. Use a drywall saw to make a cutout for the soundbar cables.
4. Install the four included anchors into the drilled pilot holes.
a. Fold the anchor in the middle and pinch the ends together.
b. Insert the anchor in the hole and tap flush with the wall.
Center reference hole Drill one of these two holes
Drill one of these two holes
c. Insert the included anchor key to pop the anchor open and lock
it behind a hollow wall.
WARNING: Do not force or hammer the key.
d. Drive the screw part of the way into the anchor, leaving
approximately 1/4 in. of the screw exposed.
e. Repeat steps a through d for the other 3 anchors.
