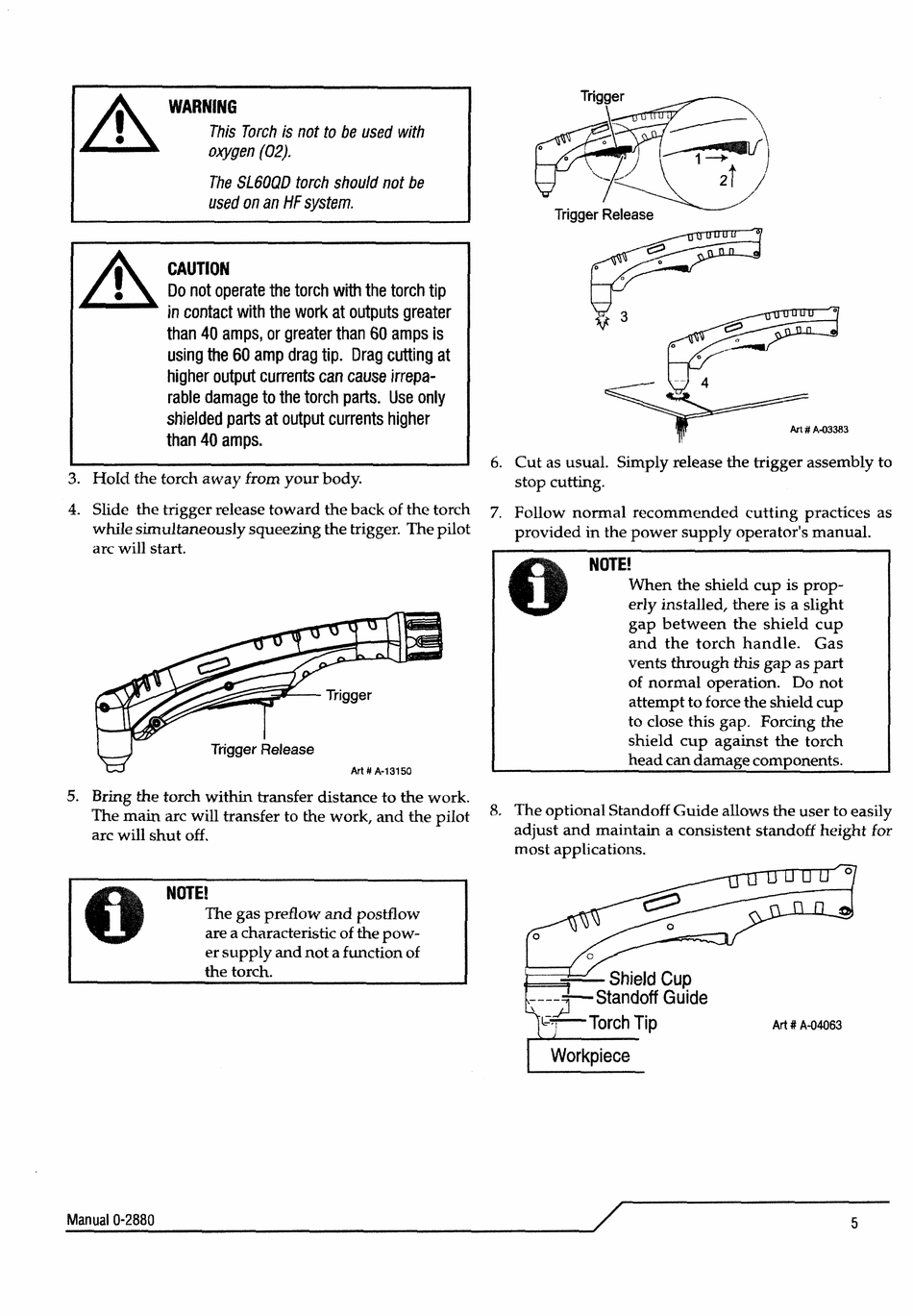

WARNING
This Torch is not to be used with
oxygen (02).
The SL60QD torch shou/d not be
used on an HF system .
.A\.
CAUTION
~ Do not operate the torch with the torch tip
in contact with the work at outputs greater
than 40 amps, or greater than 60 amps is
using the 60 amp drag tip. Drag cutting at
higher output currents can cause irrepa-
rable darnage to the torch parts. Use only
shielded parts at output currents higher
than 40 amps.
3. Hold the torch away from your body.
4. Slide the trigger release toward the back of the torch
while simultaneously squeezing the trigger. The pilot
arc wiJl start.
5. Bring the torch within transfer distance to the work.
The main arc will transfer to the work, and the pilot
arc will shut off.
NOTE!
The gas preflow and postflow
are a characteristic of the pow-
er supply and not a fW1ction of
the torch.
6. Cut as usual. Simply release the trigger assembly to
stop cutting.
7. Follow normal recommended cutting practices as
provided in the power supply operator's manual.
NOTE!
When the shield cup is prop-
erly installed, there is a slight
gap between the shield cup
and the torch handle. Gas
vents through this gap as part
of normal operation. Do not
attempt to force the shield cup
to close this gap. Forcing the
shield cup against the torch
head can darnage components.
8. The optional Standoff Gui.de allows the user to easily
adjust and maintain a consistent standoft height for
most applications.
- - Shield
Cup
~-=,::J- Stand~ff
Guide
l;.-.r
-Torch T1p
Werkpiece
Art # A-ü4063
Manual 0-2880 /
----------------------------~
5
