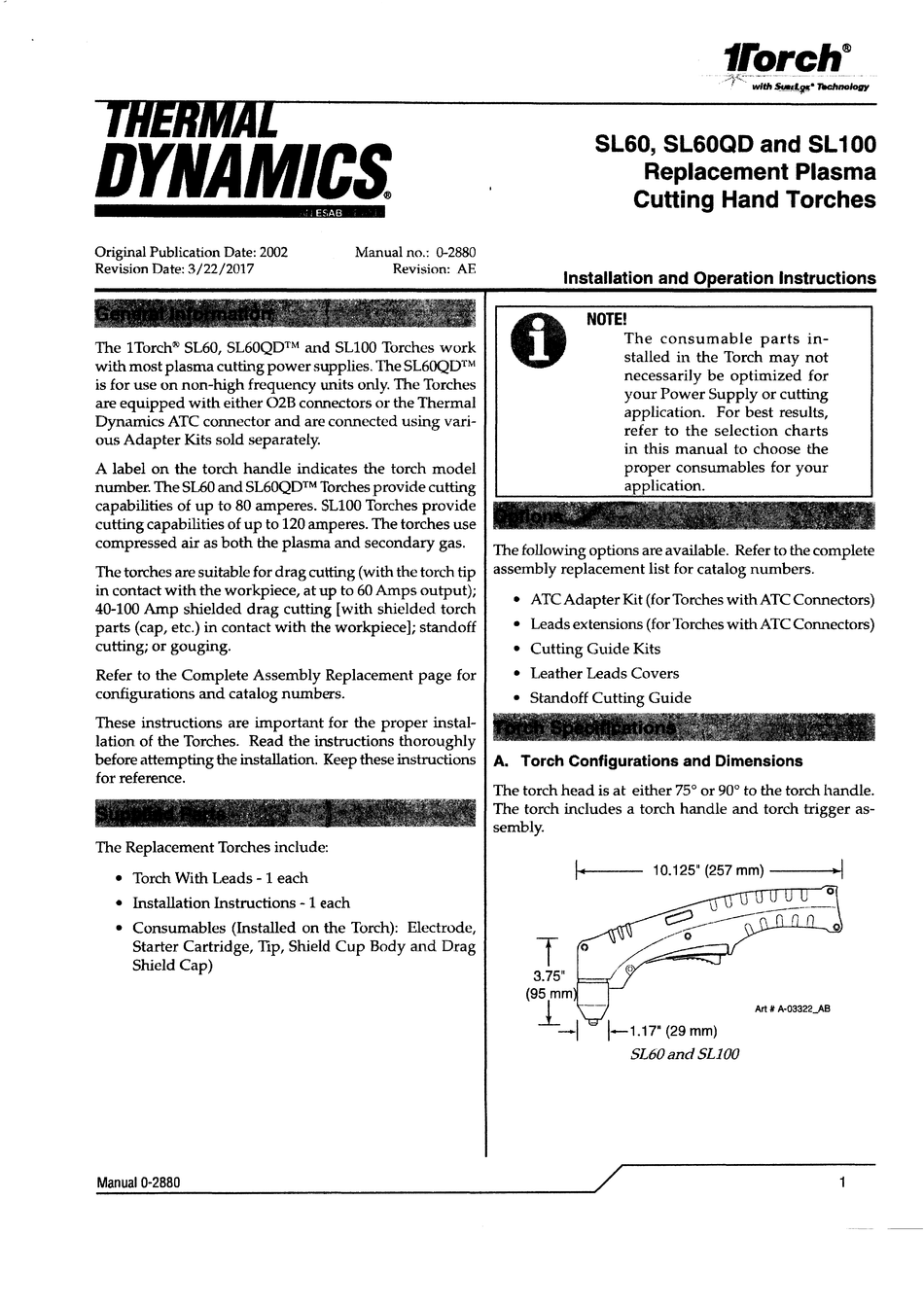

Thermal Dynamics 1Torch SL60 Installation And Operation Instructions Manual

711ERMAL
Original Publication Date: 2002
R.evision Date: 3/22/2017
1vlanual no.: 0-2880
Revision: AE
The lTorch® SL60, SL60QDTM and SLlOO Torches ·work
with most plasn1a cutting power supplies. The SL60QDTM
is for use on non-high frequency units only. The Torches
are equipped with either ()2ß connectors or the Thermal
Dynamics ATC connector and are connected using vari-
ous Adapter Kits sold separately.
A Iabel on the torch handle indicates the torch model
number. The SL60 and SL60QD™ Torches provide cutting
capabilities of up to 80 amperes. SLlOO Torches provide
cutting capabilities of up to 120 amperes. The torches use
compressed air as both the plasma and secondary gas.
The torches are suitable for drag cutting (with the torch tip
in contact with the workpiece, at up to 60 Amps output);
40-100 Amp shielded drag cutting [with shielded torch
parts ( cap, etc.) in conta.ct
wit:h
the workpiece ]; stan.doff
cutting; or gouging.
Refer to the Complete Assembly Replacement page for
configurations and catalog numbers.
These instructions are important for the proper instal-
lation. of the Torches. Read the instructions thorou.ghly
before attempting the installati.on. Keepthese instructions
:for refe:rence.
The Replacement Torches include:
• Torch With Leads- 1 each
• Installation Instructions - 1 each
• Consumables (Installed on the Torch): Electrode,
Starter Cartridge, Tip, Shield Cup Body a.nd Drag
Shield Cap)
1Torch®
:.~}<:~····
·w.y•• • ·•• ····• . •• ·• ... .. ··•· • •·•·· •·••···· • ' . • ...
'
with
~-.~·
ntchnology
SL60, SL60QD and SL 1 00
Replacement Plasma
Cutting Hand Torches
Installation and Operation lnstructions
NOTE!
The consumable parts in-
stalled in the 1brch may not
necessarily be optimized for
your Power Supply or cutting
application. For best results,
refer to the selection charts
in this manual to choose the
proper consumables for your
application.
The following options are available. Refer to the complete
assernbly replacement Iist for catalog numbers.
• ATCAdapter Kit (forTorches withATC Connectors)
• Leads extensions ( for Torches with ATC Connectors)
• Cutting Guide Kits
• Leather Leads Covers
• Standoff Cutting Guide
A. Torch Configurations and Dimensions
The torch head is at either 75° or 90° to the torch handle.
The torch includes a torch handle and torch trigger as-
sembly.
I~
T
3.75 11
(95 mm
.1_,
10.125
11
(257 mm)
--~•I
1~1.17"
(29 mm)
SL60 and SLJ
00
Art # A·03322_AB
