Shift the switch "Mem Up/Down" to "Mem".
The green LED for "Mem" is turned on.
Shift the switch "HS/Off/Auto" to "Auto".
The green LED for "Auto" is turned on.
Switch „Mem Up/Down"
While driving to a memory position, one of the 4 yellow LEDs „M1, M2, M3
und M4" is turned on. While the desk is waiting, the LED for „Break" is
flashing.

3.2 Up/Down mode

With this function the desk will continously drive up and down. The desired duty cycle
can be set with the two knobs „Drive" und „Break".
Drive ....................determines, how long the desk will drive (1 – 60s)
Break ...................determines, how long the desk will wait between driving to
the certain positions (0 – 600s)
Seite 5 von 7

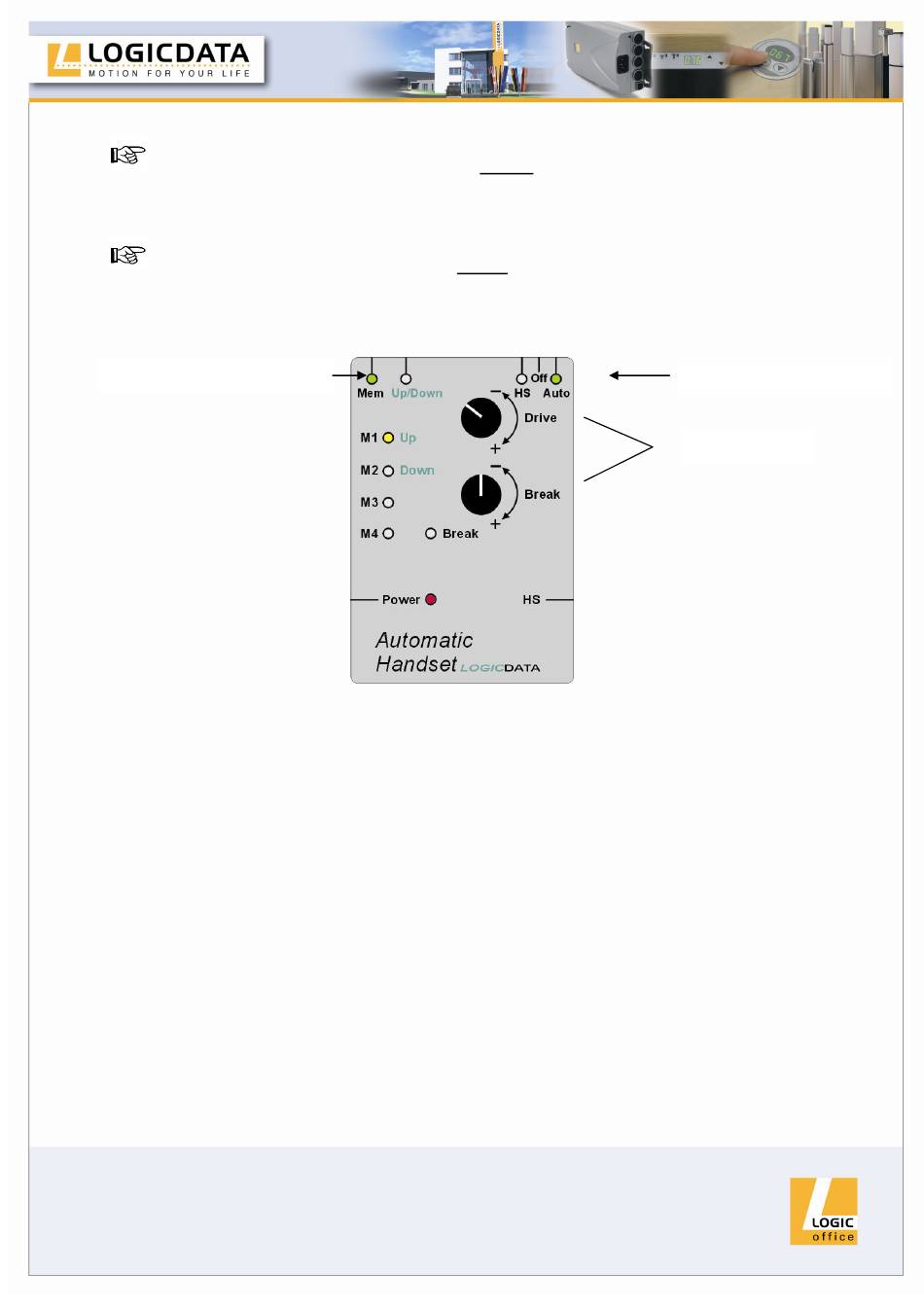

Switch „HS/Off/Auto"
Knobs
