PC830 Firmware Upgrade Instructions
Before you begin
Tools required
Procedure
1. Unconfigure drive to clear non-volatile (NV) memory.
2. Remove all external connections from the drive.

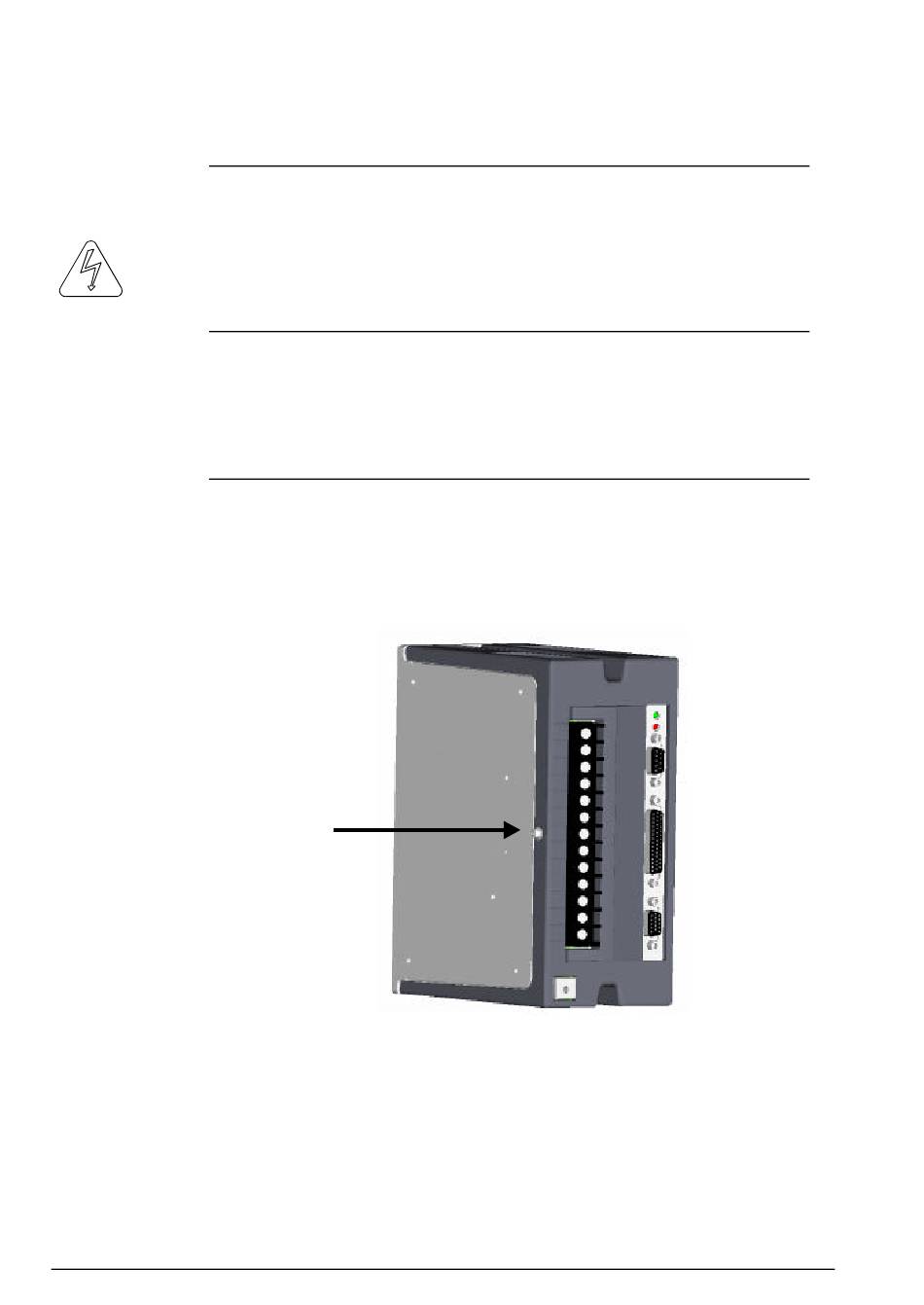

3. Remove the screw that attaches the plastic cover to the aluminum heatsink.
4. Use a small flat head screwdriver to gently lift the two plastic tabs that hold
903-083002-01
Remove AC power from the drive and wait 5 minutes until the bus discharges.
High voltages are present on the PC830 connections. Follow the instructions
outlined below to avoid an electrical shock.
Small flat head screw driver
·
Medium phillips screwdriver
·
Chip extraction tool (supplied in upgrade kit)
·
There are static sensitive devices inside the drive. Perform installation in static
free environment.
Make sure the drive has been powered down for at least 5 minutes.
the cover in place. Once both plastic tabs are free from the aluminum tabs
the cover should slide freely.
PC830 Firmware Upgrade Installation
Warning
1
