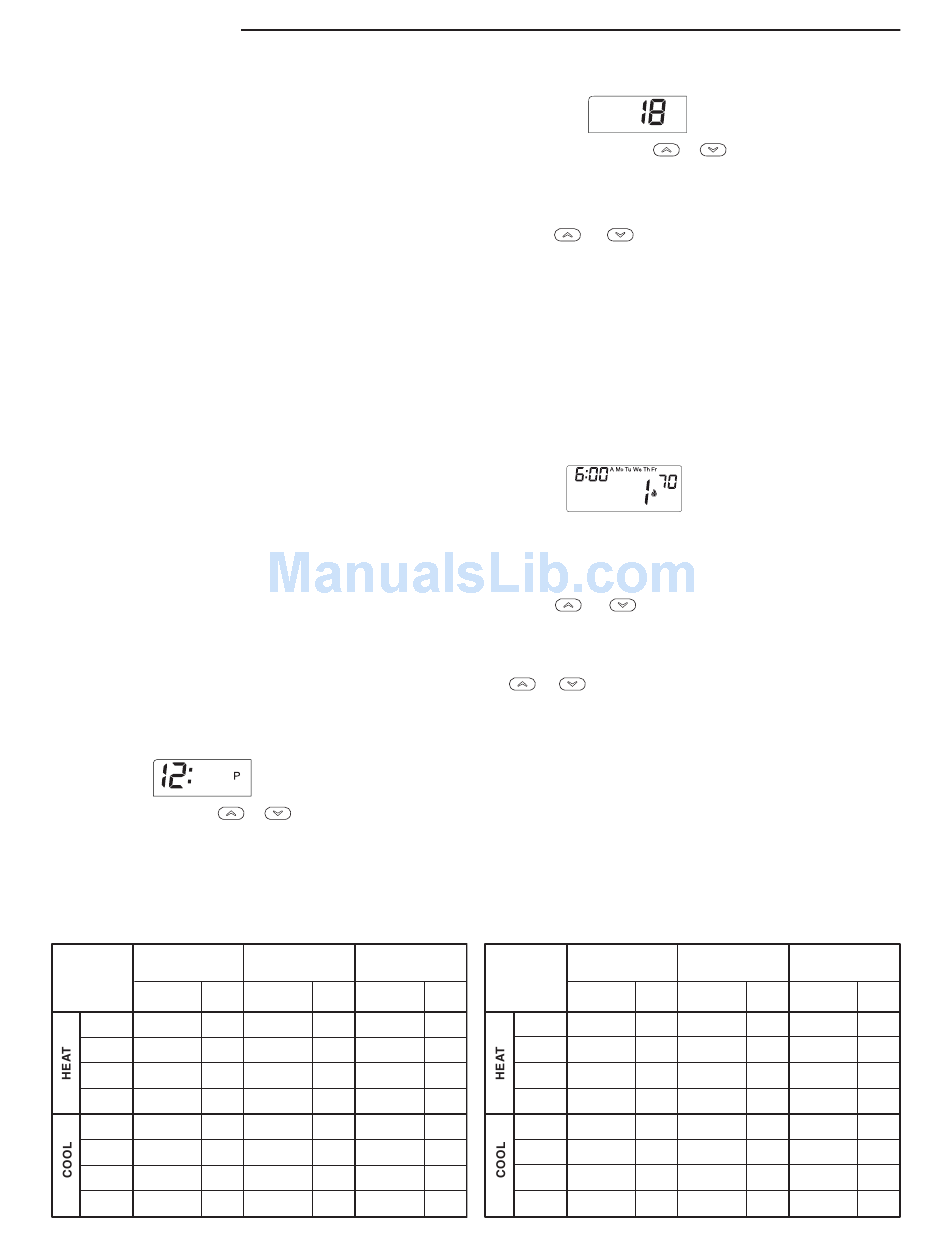

PROGRAMMING

PROGRAMMING YOUR THERMOSTAT

This section will help you plan your thermostat's program to
meet your needs. For maximum comfort and effi ciency, keep
the following guidelines in mind when planning your program.
• When heating (cooling) your building, program the
temperatures to be cooler (warmer) when the building is
vacant or during periods of low activity.
• During early morning hours, the need for cooling is usually
minimal.

Planning Your Program

Look at the factory preprogrammed times and temperatures
shown in the sample schedule. If this program will suit your
needs, simply press the RUN/HOLD button to begin running
the factory preset program.
If you want to change the preprogrammed times and
temperatures, follow these steps.
Determine the time periods and temperatures for your program.
You must program four periods for each day. However, you
may use the same heating and cooling temperatures for
consecutive time periods. You can choose start times, heating
temperatures, and cooling temperatures independently (for
example, you may select 5:00 AM and 70° as the daily 1st
period heating start time and temperature, and also choose
7:00 AM and 76° as the daily 1st period cooling start time
and temperature).
Use the table to plan your program time periods and the
temperatures you want during each period. Fill in the complete
table to have a record of your programs.

Entering Your Program

Set Current Time and Day
1. Press TIME button once. The display will show the hour
only.
EXAMPLE:
2. Press and hold either
hour and AM/PM designation (AM begins at midnight; PM
begins at noon).
Heating/Cooling Schedule Plan (Factory Program)
WEEKDAYS
(5 Day)
Start
Period
Temp
Time
1ST 6:00 AM 70F
2ND 8:00 AM 62F
3RD 5:00 PM 70F
4TH 10:00 PM 62F
1ST 6:00 AM 78F
2ND 8:00 AM 85F
3RD 5:00 PM 78F
4TH 10:00 PM 82F
or until you reach the correct
SAMPLE
SATURDAY SUNDAY
(1 Day) (1 Day)
Start Start
Temp
Time Time
6:00 AM 70F 6:00 AM
8:00 AM 62F 8:00 AM
5:00 PM 70F 5:00 PM
10:00 PM 62F 10:00 PM
6:00 AM 78F 6:00 AM
8:00 AM 85F 8:00 AM
5:00 PM 78F 5:00 PM
10:00 PM 82F 10:00 PM
3. Press TIME once again. The display window will show the
minutes only.
EXAMPLE:
4. Press and hold either
minutes.
5. Press TIME once again. The display will show the day of
the week.
6. Press or
week.
7. Press RUN/HOLD once. The display will show the correct
time, day, room temperature and set-point temperature.
Enter Heating Program
1. Move the SYSTEM switch to HEAT.
2. Press PRGM once. "Mo Tu We Th Fr" (indicating weekday
program) will appear in the display. Also displayed are the
currently programmed start time for the 1st heating period
and the currently programmed temperature (fl ashing).
EXAMPLE:
This display window shows that for the 1st weekday
period, the start time is 6:00 AM, and 70° is the
programmed temperature (this example refl ects factory
preprogramming).
3. Press or
to your selected temperature for the 1st heating program
period.
4. Press TIME once (the programmed time will fl ash). Press
or until your selected time appears. The time will
change in 15 minute increments. When your selected time
is displayed, press TIME again to return to the change
temperature mode.
5. Press PRGM once. The currently programmed start time
and setpoint temperature for the 2nd heating program
period will appear.
6. Repeat steps 3 and 4 to select the start time and heating
temperature for the 2nd heating program period.
7. Repeat steps 3 through 5 for the 3rd and 4th heating
program periods.
Heating/Cooling Schedule Plan
WEEKDAYS
(5 Day)
Start
Period
Temp
Time
70F 1ST
62F 2ND
3RD
70F
62F 4TH
1ST
78F
85F 2ND
78F 3RD
4TH
82F
7
or until you reach the correct
until you reach the current day of the
to change the displayed temperature
SATURDAY SUNDAY
(1 Day)
Start Start
Temp Temp
Time Time
(1 Day)
Temp
