Polaris Alpha iQ+ Owner's Manual page 7

4. Slide the handnut over the tube and twist to
tighten onto base unit (Figure 4).

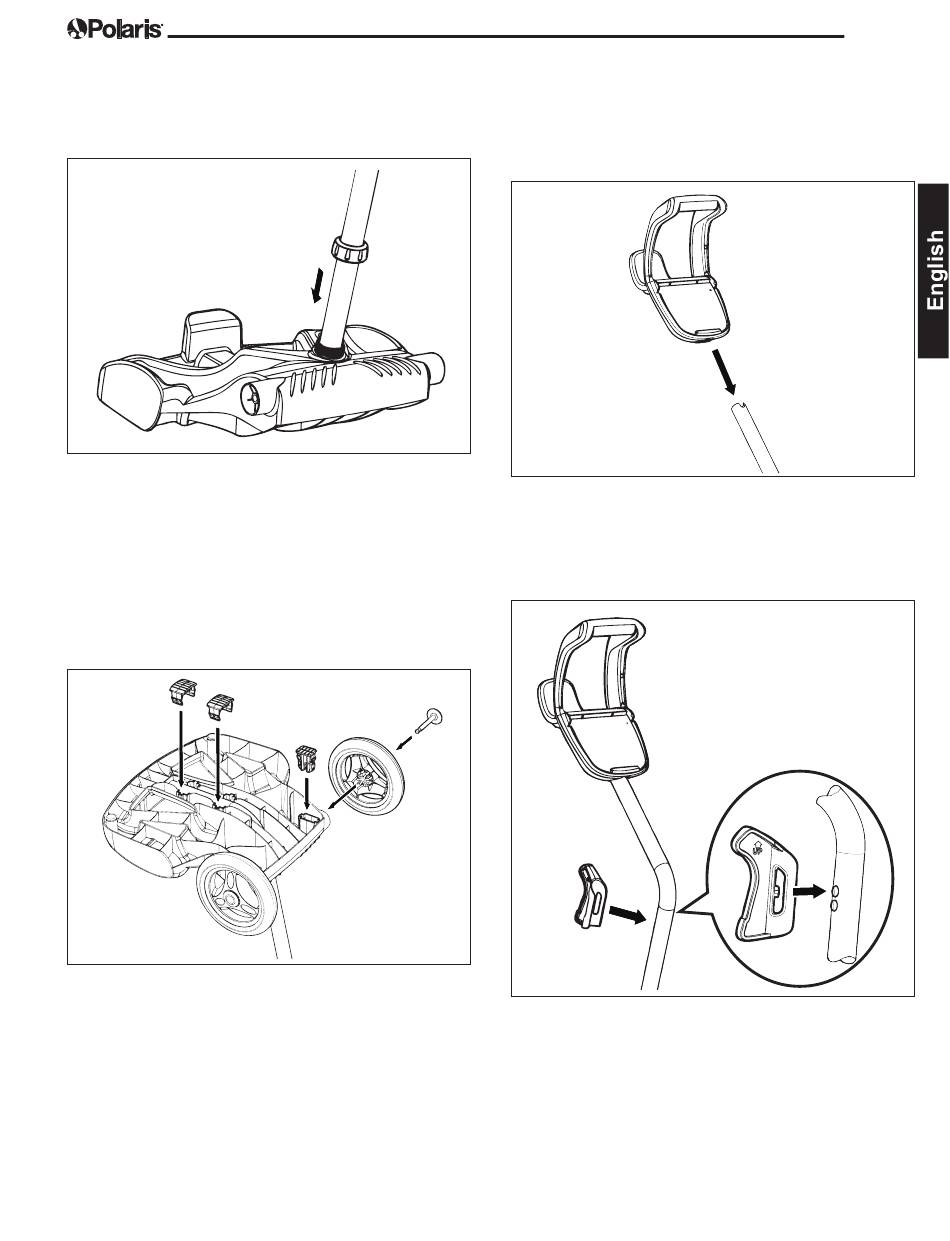

Figure 4. Twist Handnut to Secure Frame
5. Snap two support blocks into place
(Figure 5).
6. Slide axle and hubcap piece through center
of wheel and attach to base unit. Snap
locking clip into place to secure wheel.
Repeat to attach both wheels (Figure 5).
Figure 5. Snap in Support Blocks and Attach
Wheels
7. Slide the control box base / caddy handle
attachment down over the metal tubing
until it snaps into place (Figure 6).
Figure 6. Attach Caddy Handle
8. Align cleaner hook pins with the top holes
in the handle tube and snap into place
(Figure 7).
Figure 7. Snap Cleaner Hook into Place
Page 7
