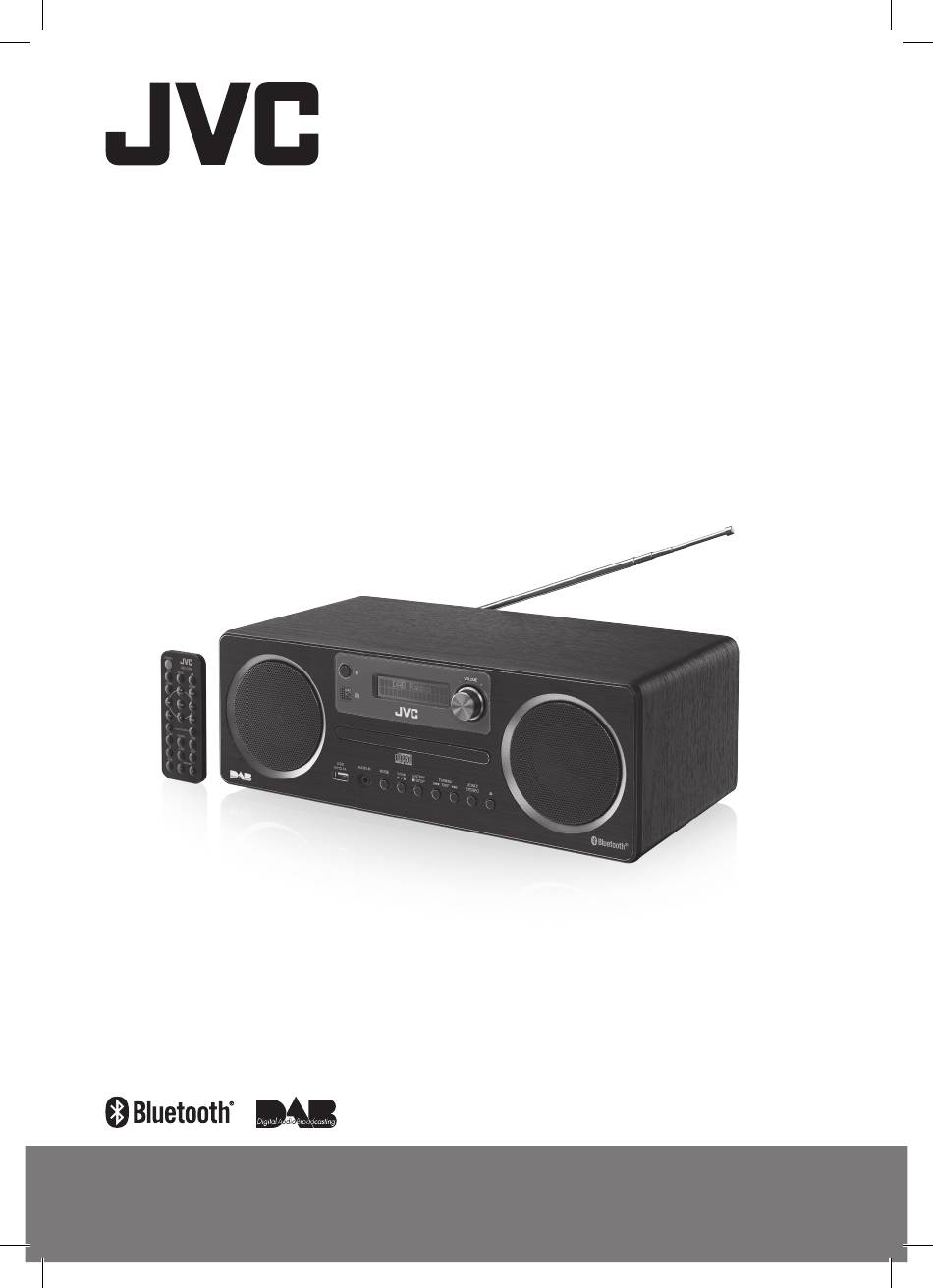

- Page 1 Instruction Manual Wireless micro DAB all-in-one Hi-Fi RD-D70 For help and support call UK: 0344 561 1234 • Ireland: 1890 818 575 RD-D70_IB-NO Digital Tick.indd 1 02/02/2016 17:34...
- Page 2 RD-D70_IB-NO Digital Tick.indd 2 02/02/2016 17:34...
-
Page 3: Table Of Contents
Contents Safety Warnings ........................5 Unpacking ..........................7 Product Overview ........................8 Main Unit .................................8 Remote Control ............................9 Preparation .........................10 Removing the insulating strip ......................10 Battery Replacement for the Remote Control ................10 Remote Control Operation Range .......................11 Connections ........................11 Connecting to the Main ..........................11 Basic Operation ........................12 Switching ON/OFF .............................12 ECO-Power Mode ............................12... - Page 4 USB Operation ........................22 Charging From the USB port ........................ 22 Repeat Playback ............................22 AUX Operation ........................23 Bluetooth® Operation ....................... 24 System Reset........................24 Maintenance ........................25 Cleaning the Unit ............................25 Cleaning the Speakers ..........................25 Handling Discs ............................25 Cleaning Discs ............................
-
Page 5: Safety Warnings
Safety Warnings • Read all the instructions carefully before • A minimum distance of 5 cm around the using the unit and keep them for future unit should be maintained to allow for reference. sufficient ventilation. • Retain the manual. If you pass the unit • Do not install or place this unit in a onto a third party make sure to include this bookcase, built-in cabinet or in another... - Page 6 • Never let anyone especially children push Service anything into the holes, slots or any other • To reduce the risk of electric shock, do not openings in the case - this could result in remove screws. The unit does not contain a fatal electric shock.
-
Page 7: Unpacking
Thank you for purchasing your new JVC Hi-Fi System. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. -
Page 8: Product Overview
Product Overview Main Unit Front View 1. Left Speaker 9. TUNING / SKIP Buttons 10. ENTER / STOP Buttons 2. Remote Control Sensor STANDBY Button 11. SCAN / Button 12. MODE Button 4. Display 5. VOLUME –/+ Dial 13. AUDIO IN Socket 14. -
Page 9: Remote Control
Remote Control STANDBY Button 2. INFO Button 3. REPEAT Button Button 5. MONO/STEREO Button 6. PRESET/FOLDER Buttons 7. CLOCK Button 8. EQ Button 9. MUTE Button 10. MODE Button OPEN/CLOSE Button 12. SCAN / Button 13. PRESET/MEM Button 14. ENTER Button Button Button 17. -
Page 10: Preparation
Preparation Removing the insulating strip Remove the insulating plastic strip from the battery if the battery is being used for the first time. It is located at the bottom back side of the remote control. Battery Replacement for the Remote Control The remote control requires a CR2025, 3V Lithium battery. -
Page 11: Remote Control Operation Range
Remote Control Operation Range Remote sensor • Point the remote control towards the unit, no more than 4 meters from the remote control sensor and within 60° arc in front of the unit. • Please note that the operating 30° 30°... -
Page 12: Basic Operation
This instruction manual explains the basic instructions for operating this unit. Unless otherwise stated, all operations described are based on remote control use. Basic Operation The first time you switch your unit on it will automatically start to scan for DAB radio stations, so make sure you have fully extended your aerial. -
Page 13: Adjusting The Speaker Volume Levels And Sound Effects
Adjusting the Speaker Volume Levels and Sound Effects Adjusting the Volume To increase or decrease the volume, turn the – VOLUME + dial on the unit or press the VOL + / – buttons on the remote control. Mute To temporarily mute the sound press the MUTE button. Press the MUTE button again, or press VOL +/–... -
Page 14: Daily Timer
Daily Timer This function allows you to program the unit to automatically switch on from standby at a certain time everyday. 1. Press and hold TIMER until “ON TIMER“ is displayed. 2. Press repeatedly on the remote control to select the hour you want the unit to switch on. -
Page 15: Dab Radio Operation
DAB Radio Operation Make sure you have fully extended the aerial. Press the MODE button to select DAB source. “DAB Radio” will breifly appear on the display. 1. The first time the unit is switched on to DAB mode the unit will automatically start scanning. -
Page 16: Manual Tuning
Manual Tuning You can also manually tune the unit, which can help if you know your unit has missed stations while performing a SCAN. You will need to know which multiplex the missing radio station is in. 1. Press MENU, ‘Manual tune’ will appear on the display. 2. -
Page 17: Dab Information Display
DAB Information Display You can view the DAB service information in the following modes. Depending on the DAB radio station you are tuned into, some information modes may be unavailable. Press the INFO button repeatedly on the remote control to view the following information. DLS (Dynamic Label Segment) Dynamic label segment is a scrolling message that the broadcaster may include with their transmissions. -
Page 18: Fm Radio Operation
FM Radio Operation • Make sure the aerial is correctly connected and fully extended, away from any electrical devices that could cause interference. • If reception is still poor, try to adjust the FM/DAB aerial location. Press the MODE button to select FM RADIO source. The words “FM RADIO” will be briefly be displayed. -
Page 19: Fm Information Display
Audio Mode You may find when listening to week FM radio stations that changes the audio mode may make the sound clearer. Press the MONO/STEREO button to change from MONO to STEREO. • FM Information Display Many FM stations broadcast additional service information. Depending on the FM radio station you are tuned into, some information may be unavailable. -
Page 20: Cd/Mp3/Wma Operation
CD/MP3/WMA Operation Compatible Disc Types Disc Types Disc Logo Recorded Content CD-R (CD Recordable - Audio/MP3/WMA) AUDIO/MP3/WMA CD-RW (CD-Rewritable - Audio/MP3/WMA) AUDIO/MP3/WMA AUDIO-CD (Compact Disc Digital Audio) AUDIO • Some recorded files may not be able to be played due to the type and format of disc or condition of the recording. -
Page 21: Repeat Playback
Repeat Playback • CD Disc Press the REPEATbutton REP ONE REP ALL REP OFF repeatedly to choose a function. REP ONE: Repeats the currently playing track. REP ALBUM: Repeats the album (data CDs only) REP ALL: Repeats all tracks on a disc. REP OFF: Cancels the previously set repeat playing. -
Page 22: Usb Operation
USB Operation By connecting a USB mass storage device (including USB flash memory, USB flash players) to this unit, you can enjoy the device’s stored music through the unit. 1. Insert the USB device into the USB socket at the front of unit. -
Page 23: Aux Operation
AUX Operation 1. Press the MODE button on the unit or press AUX on the remote control to select the AUX source. The words “AUX” will be showed on the display. 2. Operate your audio device directly for playback features. 3. -
Page 24: Bluetooth® Operation
1. Press the MODE button to select the Bluetooth® mode. The words “BT LINK” will flash on the display. 2. Activate your Bluetooth® device and select search mode. “RD-D70” will appear on your Bluetooth® device list. 3. Select “RD-D70” and enter the password “0000” if necessary. If the connection is successful the unit will make a beep sound. -
Page 25: Maintenance
Maintenance Cleaning the Unit Ensure the unit is fully unplugged from the mains socket before cleaning. • To clean, wipe the cases with a slightly moist, lint-free cloth. • Do not use any cleaning fluids containing alcohol, ammonia or abrasives. •... -
Page 26: Hints And Tips
Hints and Tips If a problem does occur, it may often be due to something very minor. The following table contains various tips. If you require additional assistance please call our UK Call Centre on 0344 561 1234. Our UK Customer Contact Centre is open 24/7. General Problem Solution... - Page 27 Bluetooth® Problem Solution I cannot find • Ensure the Bluetooth® function is activated on your “RD-D70” on my Bluetooth® device. Bluetooth® device. • Ensure you have paired your unit with the Bluetooth® device. If any functional abnormality is encountered, unplug the unit from the mains socket and reconnect it again.
-
Page 28: Product Fiche And Specifications
Product Fiche and Specifications Brand Model RD-D70 System Section Power Supply 100V-240V~ 50/60Hz Power Consumption Speaker Output Power 5W x 2 Unit Dimension 350 (W) x 210 (D) x 120 (H) mm Radio Section Frequency Range DAB 174.928 – 239.200 MHz (Band III) FM 87.5 –... -
Page 29: Useful Information And Licences
Useful Information and Licences For general information about this appliance and handy hints and tips, please visit www.knowhow.com/knowledgebank or call 0344 561 1234. Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day. - Page 30 RD-D70_IB-NO Digital Tick.indd 30 02/02/2016 17:34...
- Page 31 RD-D70_IB-NO Digital Tick.indd 31 02/02/2016 17:34...
- Page 32 For Help and Support Call 0344 561 1234 The product is distributed and warranted exclusive by DSG Retail Ltd. “JVC” is the trademark of JVC KENWOOD Corporation, used by DSG Retail Ltd. under license. (IB-RD-D70-160202V2) RD-D70_IB-NO Digital Tick.indd 32 02/02/2016 17:34...
