- Page 1 INDU VARIOMETER Manual Kanardia d.o.o. February 2020 © Kanardia d.o.o. Revision 1.1...
- Page 3 In short, the license gives you right to copy, reproduce and modify this document ˆ you cite Kanardia d.o.o. as the author of the original work, ˆ you distribute the resulting work only under the same or similar license to this one.
- Page 4 Please send requests to info@kanardia.eu. Revision History The following table shows the revision history of this document. Rev. Date Description Oct 2015 Initial release Feb 2020 Revision © Kanardia 2015 - 2020...
-
Page 5: Table Of Contents
5.1 Warranty ......5.2 TSO Information ....© Kanardia 2015 - 2020... -
Page 6: Introduction

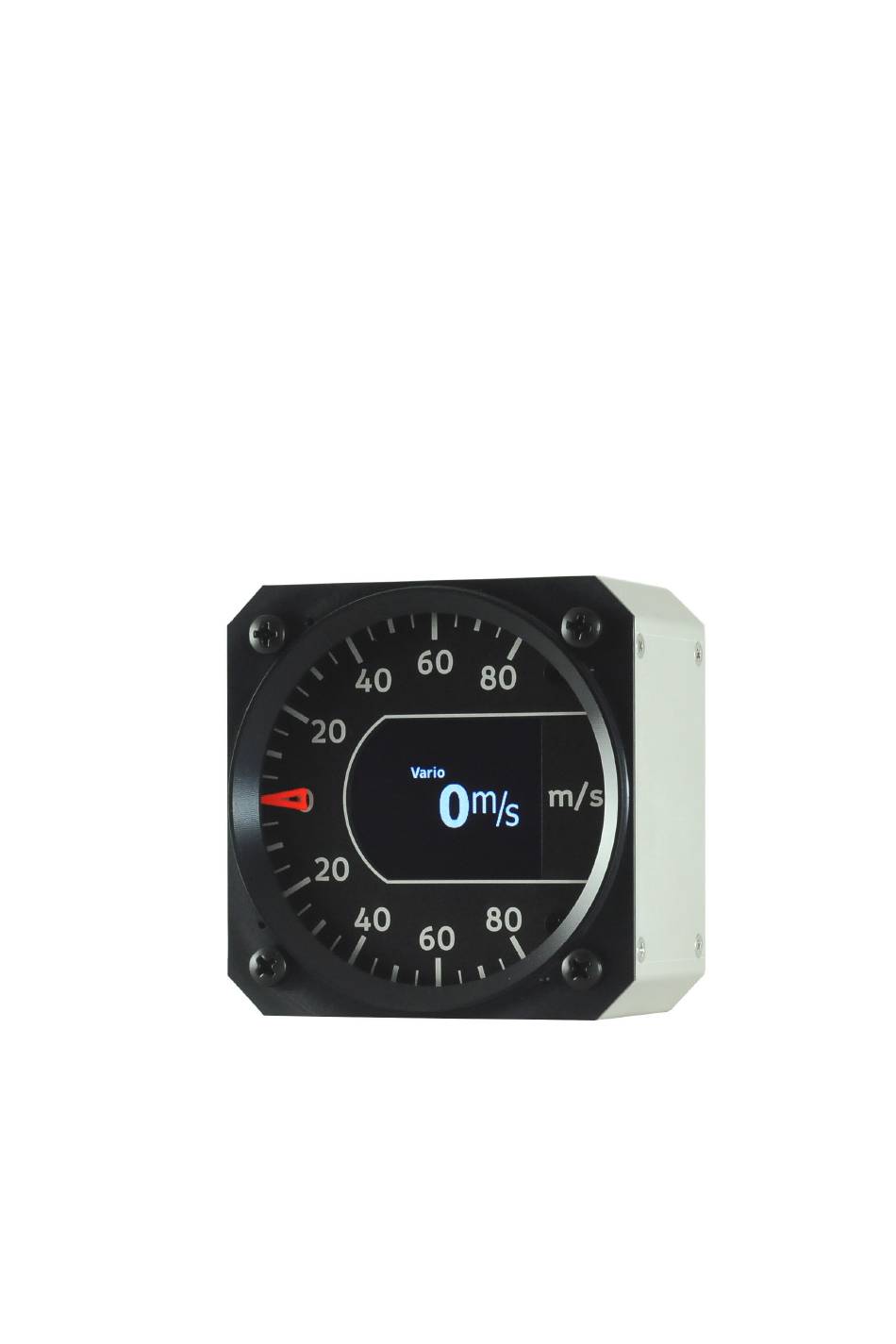

Introduction First of all, we would like to thank you for purchasing our device. Indu variometer is an electronic device, which mimics classical vari- ometer construction and combines it with the state of the art elec- tronics. This results in the best of both worlds; a perfect and intuitive analogue reading combined with high precision of modern electronics. -
Page 7: Options
10 m/s or 2000 fpm. Different units and range is also possible with additional charges. 1.3.1 Display Standard LCD display layout displays two values: Vario on top of the screen and flight time on the bottom. © Kanardia 2015 - 2020... - Page 8 If you want a different LCD display layout, you can configure it your- self with our Customizer desktop application. This option requires Kanardia’s Blu device for transfering the configuration from your an- Available from April 2020 © Kanardia 2015 - 2020...
-
Page 9: Installation
Indu Variometer. Please read our Customizer Manual for more information. Installation The Indu variometer requires a standard size 80/57 mm hole in the instrument panel. The position of the hole must ensure visibility from the pilot’s perspective. -
Page 10: Can Bus - Can
Water must not be allowed to enter the tubing. It is strongly recommended to label each tube before connecting to Indu Variometer. This will help a lot if you ever have to remove and re-install the instrument. -
Page 11: Illumination
LCD display brightness level can be adjusted. Here are two options: new instruments have a push-rotate knob, while older instruments have only rotating knob. When Indu Variometer is connected to the CAN bus, the knob adjusts brightness of all instruments connected to the bus. -
Page 12: Power - Power
3. Maintenance & Repair 2.2.4 Power - POWER Connect supplied connector at the back of Indu Variometer. The connector has a notch on one side, which protects from wrong orien- tation. Connect blue lead to negative (ground) terminal and red lead to positive (+12-24 V) terminal. -
Page 13: Sensor Calibration
11000 meters of geopotential altitude. The thropopause layer is modeled by equation (2) up to 20000 meters of geopotential altitude. As the pressure sensor is calibrated down to 100 hPa (about 16000 meters) altitudes above 16000 meters are not reliable. © Kanardia 2015 - 2020... -
Page 14: Altitude Derivative
Although a great care was taken during the design, production, stor- age and handling, it may happen that the Product will be defective in some way. Please read the following sections about the warranty and the limited operation to get more information about the subject. © Kanardia 2015 - 2020... -
Page 15: Warranty
Exclusions and Limitations This Limited Warranty applies only to hardware products manufac- tured by or for Kanardia that have the ”Kanardia” trademark, trade name, or logo affixed to them at the time of manufacture by Ka- nardia. The Limited Warranty does not apply to any non-Kanardia ©... - Page 16 Kanardia; (f) to consumable parts, such as batteries, unless damage has occurred due to a defect in materials or workmanship; or (g) if any Kanardia serial number has been removed, altered or defaced.
-
Page 17: 5.2 Tso Information
Kanardia products and any failure to maintain the confidentiality of data stored on the product. Under no circumstances will Kanardia be liable for the provision of substitute goods or services. - Page 18 Variometer — Manual 5.2 TSO Information by its use. The Kanardia is not responsible for any possible damage or destruction of any part on the airplane caused by default operation of instrument. © Kanardia 2015 - 2020...
