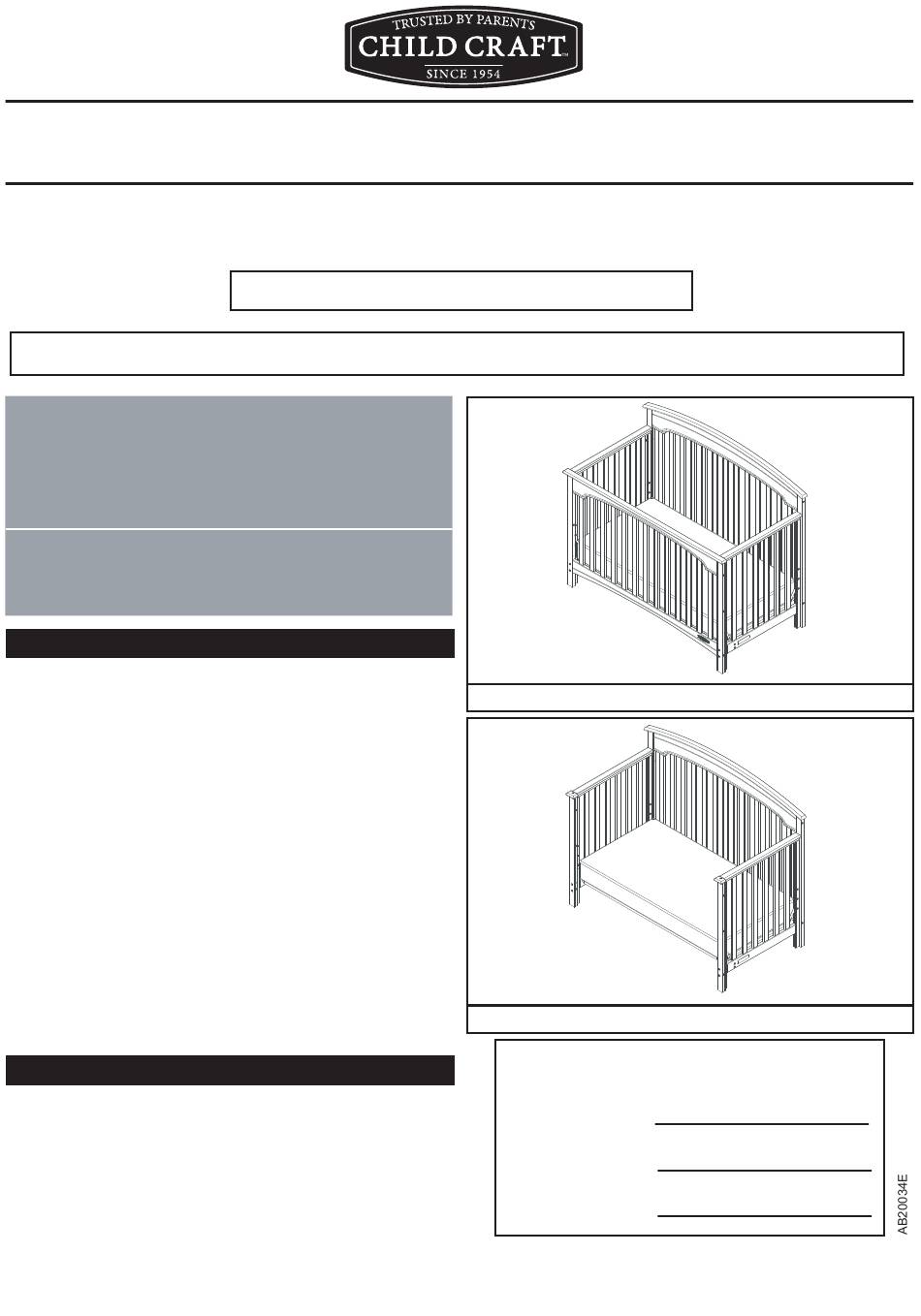

Wadsworth Full Size Convertible Crib
THIS IS THE ASSEMBLY INSTRUCTIONS FOR CRIBS SOLD IN THE UNITED STATES
FOR CUSTOMER SERVICE CALL
1-877-716-2757
(outside of U.S. 330-722-5033). DO NOT CALL
RETAILER OR RESELLER FOR SERVICE
AS THEY ARE NOT AUTHORIZED TO
RESOLVE ANY SERVICE ISSUES.
FOR FEDERAL SAFETY STANDARD
COMPLIANCE CERTIFICATES, PLEASE VISIT
OUR WEBSITE AT
www.foundations.com
ASSEMBLY ASSISTANCE
IMPORTANT: retain for future reference read
carefully.
Foundations
strives for the highest quality in our
®
products but occasionally a missing part or problem
can occur during assembly.
If any parts are missing or broken or you need
assistance with assembly, DO NOT return the
product to your dealer. Go to our website at
www.foundations.com or Call Foundations
assistance at 1-877-716-2757 (U.S. Only) or
1-330-722-5033 (Monday through Friday, 9:00
a.m.– 4:00 p.m. Eastern Time). Please have the
model number and manufacture date available
when you call or write us at: Foundations
5216 Portside Dr., Medina Oh. 44256
ASSEMBLY INSTRUCTIONS
• Adult assembly required.
• Read all instructions BEFORE assembly
and use.
• Unpack carton, remove packing materials,
including poly bag. Identify and check all parts.
Foundations
www.foundations.com
Models Covered: 31301
KEEP INSTRUCTIONS FOR FUTURE USE.
for
®
,
®
Worldwide, Inc.
®
Assembled as a Crib
Assembled as a Toddler Bed.
Record the information for your product here:
Model number:
Manufacture date:
PO number:
1
AB20034_G1
AB20034_G2A
Advertisement
Related Manuals for Child Craft Wadsworth 31301
Summary of Contents for Child Craft Wadsworth 31301
- Page 1 Foundations Worldwide, Inc. ® 5216 Portside Dr, Medina Oh 44256 USA • PH: 1 330.722.5033 • FAX: 1 330.722.5037 www.foundations.com Wadsworth Full Size Convertible Crib Models Covered: 31301 KEEP INSTRUCTIONS FOR FUTURE USE. THIS IS THE ASSEMBLY INSTRUCTIONS FOR CRIBS SOLD IN THE UNITED STATES FOR CUSTOMER SERVICE CALL 1-877-716-2757 (outside of U.S.
-
Page 2: Parts List
PARTS LIST Part Description Part Number Quantity 11200070 A. 4mm Allen Wrench 11200324 B. 6mm x 80mm Allen Head Bolt 11200332 C. 6mm x 70mm Allen Head Bolt 11200326 D. 6mm x 60mm Allen Head Bolt 11200362 E. 6mm x 40mm Allen Head Bolt 11200327 F. - Page 3 STEP 1 Attach Stationary Post Right (P) to Stationary Side Assembly (J) using two (2) Allen Head Bolts (B) and two (2) Joint Connectors (H) to attach post. Joint Connector (H) will be installed in the back face of the top rail and also the bottom edge of the bottom Opposite face of rail on Stationary Side Assembly (J).
- Page 4 STEP 3 Assemble Footboard Assembly (M) to Stationary Side Assembly from Step 1. Use two (2) Allen Head Bolts (E) which will be installed into their receiving holes and then threaded into the metal threaded Assembly insert in Stationary Post Right (P). Follow the same from Step 1.
- Page 5 STEP 5 . A ttach Long Foot Assembly from Step 2 to the Assembly assembly from Step 4. Use a total of four (4) Allen from Step 4. Head Bolts (E) and follow the same process described in Step 3 to attach the Headboard Assembly (L) and Footboard Assembly (M) to metal threaded inserts in Foot Post Left (Q) and Foot Post Right (R).
- Page 6 STEP 7 Fill all empty holes to prevent finger entrapment of the child. There are a total of eight (8) empty holes at the two (2) extra adjustment levels for Spring (N). Use Allen Head Bolts (G) and Connector Nuts (I) to fill each hole.
- Page 7 Conversion To A Toddler Bed This Crib can be converted to a Toddler Bed for further use once it is no longer needed as a Crib. This can be accomplished by removing Allen Head Bolts (B) and Connector Nuts (H) which were installed during Step 2 to assemble the Long Foot Assembly section of the Crib.
- Page 8 Installing Guard Rail A Guard Rail can be purchased from Foundations ® added security. Follow the directions supplied with the purchased Guard Rail. Please note that Bolts (D) installed during Step 4 of the crib assembly may need to be loosened 2-3 revolutions to allow extra space during this process.
-
Page 9: Maintenance
CAUTION • ANY MATTRESS USED IN THIS CRIB SHALL BE AT LEAST 27 1/4 BY 51 5/8 IN. WITH A THICKNESS NOT EXCEEDING 6 IN. IF YOUR CRIB IS DESIGNED TO CONVERT TO A TODDLER BED, THE MATTRESS MUST BE AT LEAST 4 IN. (100 MM ) THICK. - Page 10 WARNINGS FAILURE TO FOLLOW THESE WARNINGS AND THE ASSEMBLY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. WARNING Infants can suffocate on soft bedding. NEVER add a pillow or comforter. NEVER place additional padding under an infant. • Read all instructions before assembling crib. Keep instructions for future use. A pouch is attached to the crib for permanent storage of the instructional literature.
