Child Craft Monterey F10391 Assembly Instructions Manual

Full size traditional wood crib
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Available languages

Available languages

Table of Contents

5216 Portside Dr, Medina Oh 44256 USA • PH: 1 330.722.5033 • FAX: 1 330.722.5037
Monterey Full Size Traditional Wood Crib
These Instructions Are For Cribs Manufactured After 11-2013.
THIS IS THE ASSEMBLY INSTRUCTIONS FOR CRIBS SOLD IN CANADA
INSTRUCTIONS D'ASSEMBLAGE POUR LES LITS DE BÉBÉ VENDUS AU CANADA
FOR CUSTOMER SERVICE CALL
1-877-716-2757
(outside of U.S. 330-722-5033). DO NOT CALL
RETAILER OR RESELLER FOR SERVICE
AS THEY ARE NOT AUTHORIZED TO
RESOLVE ANY SERVICE ISSUES.
FOR FEDERAL SAFETY STANDARD
COMPLIANCE CERTIFICATES, PLEASE VISIT
OUR WEBSITE AT
www.foundations.com
ASSEMBLY ASSISTANCE
IMPORTANT: retain for future reference read
carefully.
Foundations
strives for the highest quality in our
®
products but occasionally a missing part or problem
can occur during assembly.
If any parts are missing or broken or you need
assistance with assembly, DO NOT return the
product to your dealer. Go to our website at
www.foundations.com or Call Foundations
for assistance at 1-877-716-2757 (U.S. Only) or
1-330-722-5033 (Monday through Friday, 9:00
a.m.– 4:00 p.m. Eastern Time). Please have the
model number and manufacture date available
when you call or write us at:
Foundations
, 5216 Portside Dr. Medina Oh. 44256
®
ASSEMBLY INSTRUCTIONS
• Adult assembly required.
• Read all instructions BEFORE assembly and USE
of product.
• Unpack carton, remove packing materials,
including poly bag. Identify and check all parts.
Foundations
www.foundations.com
Models Covered: F10391.
KEEP INSTRUCTIONS FOR FUTURE USE
®
TM
SINCE 1954
Worldwide, Inc.
®
Assembled as Toddler Bed
Record the information for your product here:
Model number:
Manufacture date:
PO number:
1
.
Assembled as Crib
AB20047_G1
AB20047_G2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Monterey F10391 and is the answer not in the manual?

Questions and answers

Related Manuals for Child Craft Monterey F10391

Summary of Contents for Child Craft Monterey F10391

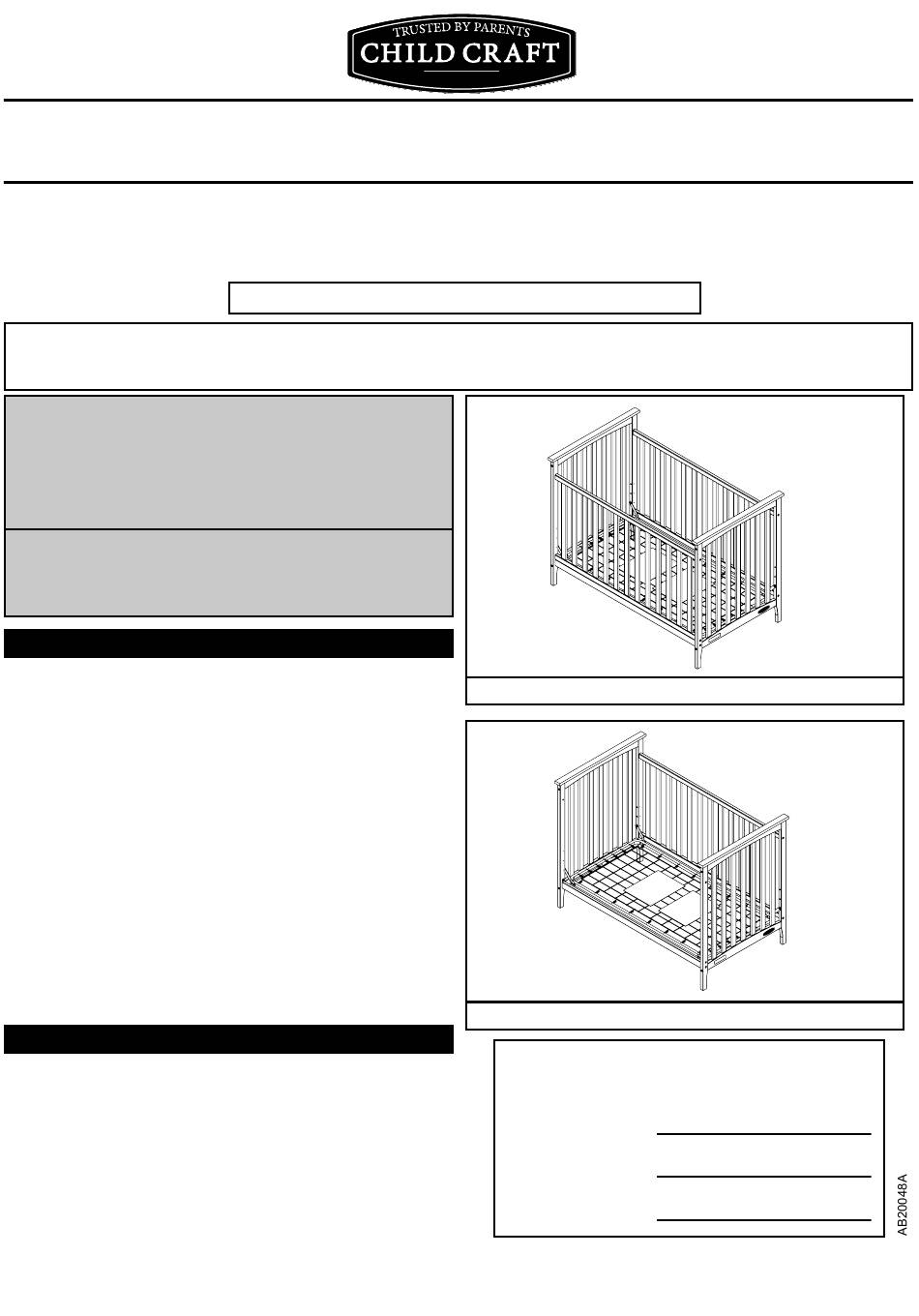

  • Page 1 SINCE 1954 Foundations Worldwide, Inc. ® 5216 Portside Dr, Medina Oh 44256 USA • PH: 1 330.722.5033 • FAX: 1 330.722.5037 www.foundations.com Monterey Full Size Traditional Wood Crib Models Covered: F10391. These Instructions Are For Cribs Manufactured After 11-2013. KEEP INSTRUCTIONS FOR FUTURE USE THIS IS THE ASSEMBLY INSTRUCTIONS FOR CRIBS SOLD IN CANADA INSTRUCTIONS D’ASSEMBLAGE POUR LES LITS DE BÉBÉ...

  • Page 2: Parts List

    STEP 1 PARTS LIST Construct End Panel Footboard assembly: Part Number Quantity Part Description A. Dowel Pin 10mm x 40mm 11200323 B. Joint Connector Nut 1/4-20 Align Foot Post Left I onto dowel on End Panel 11200077 C. Allen Head Bolt 80mm 1/4-20 Footboard H Top Rail and push together making 11200389 D.
  • Page 3 STEP 5 STEP 3 Assemble Front Stationary Side to crib. Assemble End Panels to Back Stationary Side. Insert Joint Connector Nuts B into Front Stationary Insert Joint Connector Nuts B into Back Stationary Side M . Side N . Insert Allen Head Bolts E into Finished Insert Allen Head Bolts E into Finished End Panels End Panel Footboard H .
  • Page 4 Finishing Touches WARNING WARNINGS (For Toddler Bed) Place a purchased full sized mattress on the spring. After completing the crib assembly, and after making yourself aware of WARNINGS, CAUTIONS, CLEANING,STORAGE,USE and MAINTENANCE WARNING WARNING INFANTS HAVE DIED IN TODDLER BEDS FROM of crib, store the assembly directions in the pouch ENTRAPMENT.

  • Page 5: Guide D'assemblage

    WARNING • DO NOT use this crib if you cannot exactly follow the accompanying instructions. SINCE 1954 • DO NOT use this crib for a child who can climb out of it or who is taller than 90 cm. • DO NOT place in or near this crib any cord, strap or similar item that could become Foundations Worldwide, Inc.

  • Page 6: Liste Des Pièces

    LISTE DES PIÈCES ÉTAPE 1 Description des pièces Numéro de pièce Quantité Assemblage du panneau d’extrémité du pied de lit : A. Goupille de positionnement de 10mmx40mm 11200323 B. Joint de raccord de 1/4-20 Alignez le montant gauche du pied de lit I avec le 11200077 C.
  • Page 7 ÉTAPE 4 ÉTAPE 2 Installez la barre avant sur le lit. Assemblage du panneau d’extrémité de la tête de lit : Insérez les joints de raccord B dans la barre avant Alignez le montant gauche de la tête de lit P avec la Alignez et insérez les tenons à...
  • Page 8 ÉTAPE 6 Configuration lit d’enfant Conversion en lit d’enfant : Placez le cadre à ressort dans le lit. Suivez les consignes d’assemblage jusqu’à l’étape de l’installation de la barre avant L , indiquée à Le cadre à ressort R peut être placé à trois hauteurs, soit les positions 1 2 et 3 , comme il l’étape 4.
  • Page 9 Option Barrière et installation MISE EN GARDE WARNING Pour plus de sécurité, un garde-corps peut être acheté pour cette crèche. Contactez Fondations ® • Ne pas utiliser le lit à moins ďêtre en mesure de suivre précisément les instructions ou votre revendeur. qui ľaccompagnent.
