NI RMC-8355 Description
Figure 1 shows the key features of the NI RMC-8355 front panel. For detailed information about
the NI RMC-8355 rear panel, refer to Chapter 3, I/O Information, in the NI RMC-8355 User
Manual.
2
1
DVD R/W Drive
2
Hard Drives
3
Hard Drive Ejector Buttons
4
USB Ports
5
Hard Drive Activity Indicator
6
Power Shuttle 1 Indicator
The front panel includes the following LEDs:
•
Hard drive activity indicator—glows when there is hard drive activity.
•
Power shuttle indicators—glow when power shuttles are powered on.
•
LAN status indicators—flash when there is activity on LAN1 or LAN2.
•
Overheat/fan fail indicator
–
Off—Normal
–
On—Overheat
–
Flashing—Fan failure warning
•
Power indicator—glows when the NI RMC-8355 is powered on.
6 | ni.com | NI RMC-8355 Installation Guide

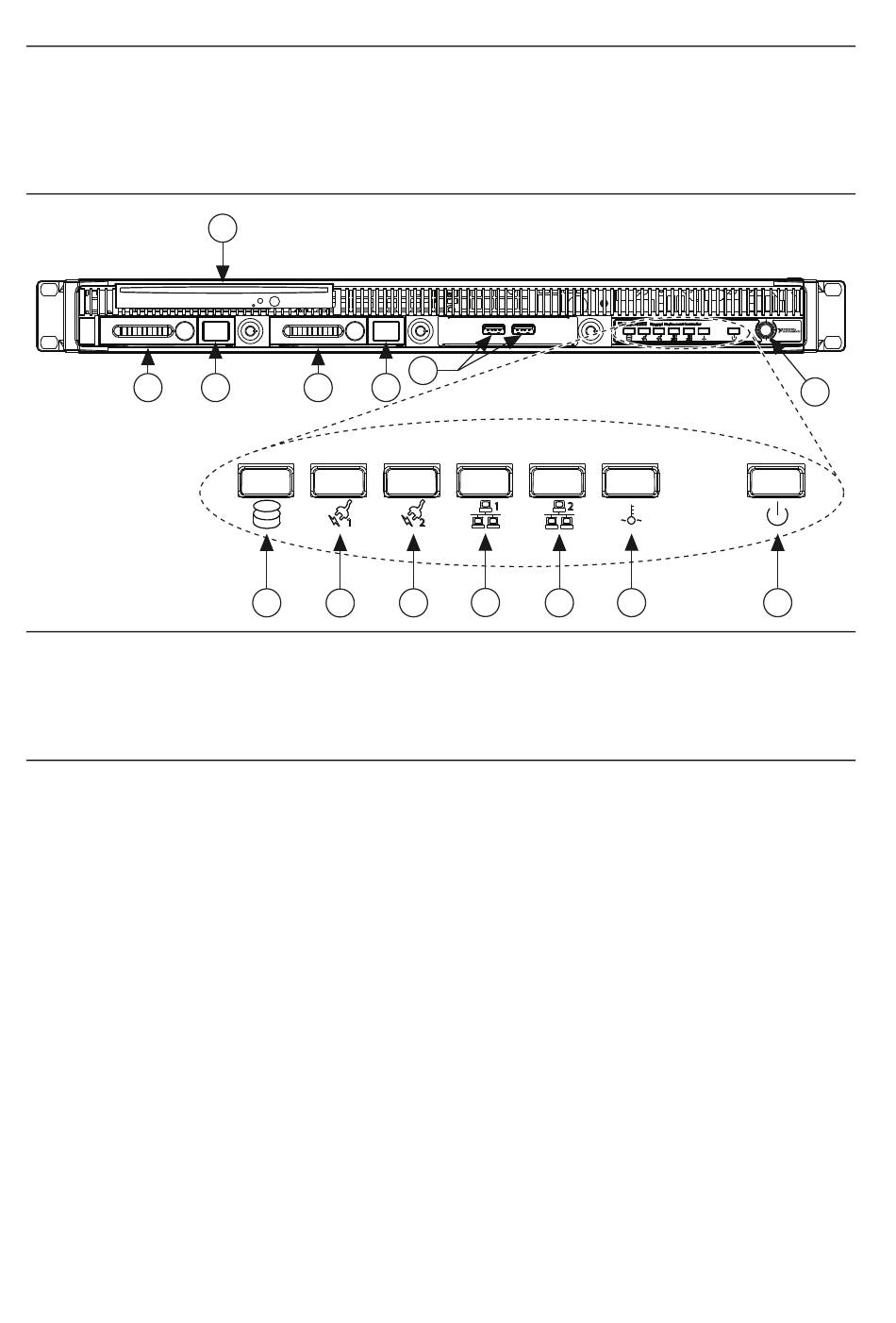

Figure 1. Front View of the NI RMC-8355
1
3
2
5
6
4
3
7
8
7
Power Shuttle 2 Indicator
8
LAN1 Status Indicator
9
LAN2 Status Indicator
10 System Temp and Fan Warning Indicator
11 Power Indicator
12 Power Switch
9
10
12
11
