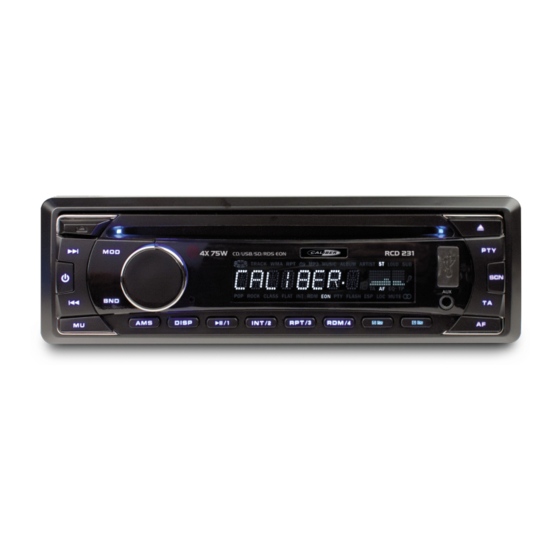

Caliber RCD 231 Quick Start Manual

4 9
2
1
14
11 13 3 12
Key System
Short press
1 Power
2 Rotary Volume
3
4
5
6
7
8
9 Mode
10 Display
11 Mute
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
Description of the functions
Panel Release Push this button to release the frontpanel.
Eject Push this button to eject the CD out of the unit.
Power Power function to activate or deactivate the unit.
Band Band selection allows you to select different reception bands, f.i. FM1, FM2 and FM3
AF AF stands for Alternative frequencies; the tuner will return to alternative frequencies whenever the reception signal is getting worse.
TA TA stands for Traffic announcement which means that it will give you information about the traffic (if broadcasted) no matter what mode you are in (CD,USB, etc.) it will automatically interrupt the cd
and give the information, after that it automatically switches back to the selected mode
Manual up/down Long press to move the radio frequency number up/down step by step.
Menu (system) Press the VOL/SEL button for several seconds to activate the cyclical mode to choose from the following user instructions: DSP ON/OFF > ESP 12/45
(CD mode) > BEEP ON/OFF > AREA > VOL LAST/ADJ > SEEK. (Press to enter fuctions)
In DSP mode you can choose from preset EQ settings: FLAT, CLASSIC, POP, ROCK
Audio Menu The Audio menu button gives you the possibility to adjust your sound system with the following options Bass, Treble, Balance and Fader. These options can be used to fine tune your sound.
Mode The mode button allows you to go from one source (f.i. CD) to another source (f.i. Tuner) by pushing the button as many times as needed.
AMS AMS stands for Automatic store; in tuner mode it will automatically store the 6 strongest stations (M1-M6). Note: all previous stored stations are lost.
Rotary volume This knob allows you to adjust the volume from minimum to maximum level. NOTE high sound levels may cause damage to your ears.
M1-M6 These are the preset stations where you can store your favorite radio stations if in tuner mode.
Pause/Play This button allows you in CD, USB or SD mode to play or to pause the music.
Scan Scan will play 10 seconds of each song on the CD, USB or SD. If the preferred song is playing, push again and it will play that song.
Repeat Repeat will play a selected song or album continuously. Available in CD, USB and SD mode.
Shuffle Shuffle will play all the songs random. Available in CD, USB and SD mode.
File down/up In MP3 mode press this button to go up or down one folder.
Track down/up In MP3 mode press this button to go up or down one track
fast forward/backward Long press to fast forward to the CD, USB or SD.
3,5mm AV jack in To connect an external audio system.
USB poort When inserting a USB stick the unit will switch to USB mode.
SD card input (behind panel) Remove the frontpanel to insert SD card. When inserting a SD card the unit will switch to SD mode. (Max 16GB card)
Reset (behind panel) Use a non-metallic pointed object to press and hold the reset button for 5 seconds. The unit will be set to factory default.
5 7
10 18 19 20
long press Short press
Power off
Menu (audio / system)
Seek down
6
21 22 23 17 26
Tuner
long press
Panel release
Disc slot
LCD display
USB port
Mode
AMS
Band
Manual down
Seek up Manual up
Scan
3,5mm AUX In Jack
M1 Store M1
M2 Store M2
M3 Store M3
M4 Store M4
M5 Store M5
M6 Store M6
PTY
TA
AF
24
8
16
25
CD/MP3/WMA
Short press
OK
Eject
Mode
Track down
Track up
Play/Pause
Intro
Repeat
Shuffle
Folder down
Folder up
long press
fast backward
fast forward
