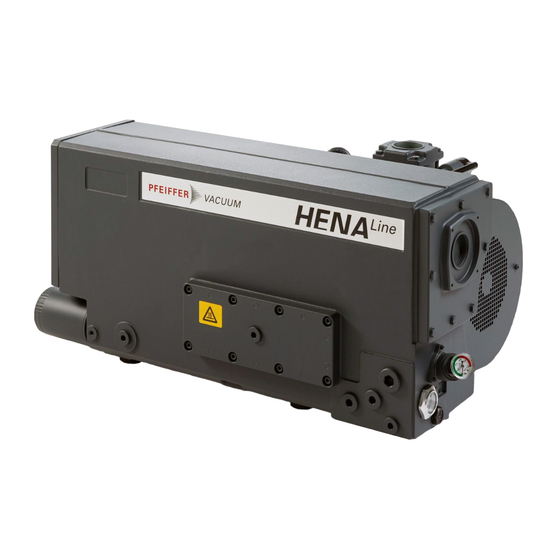

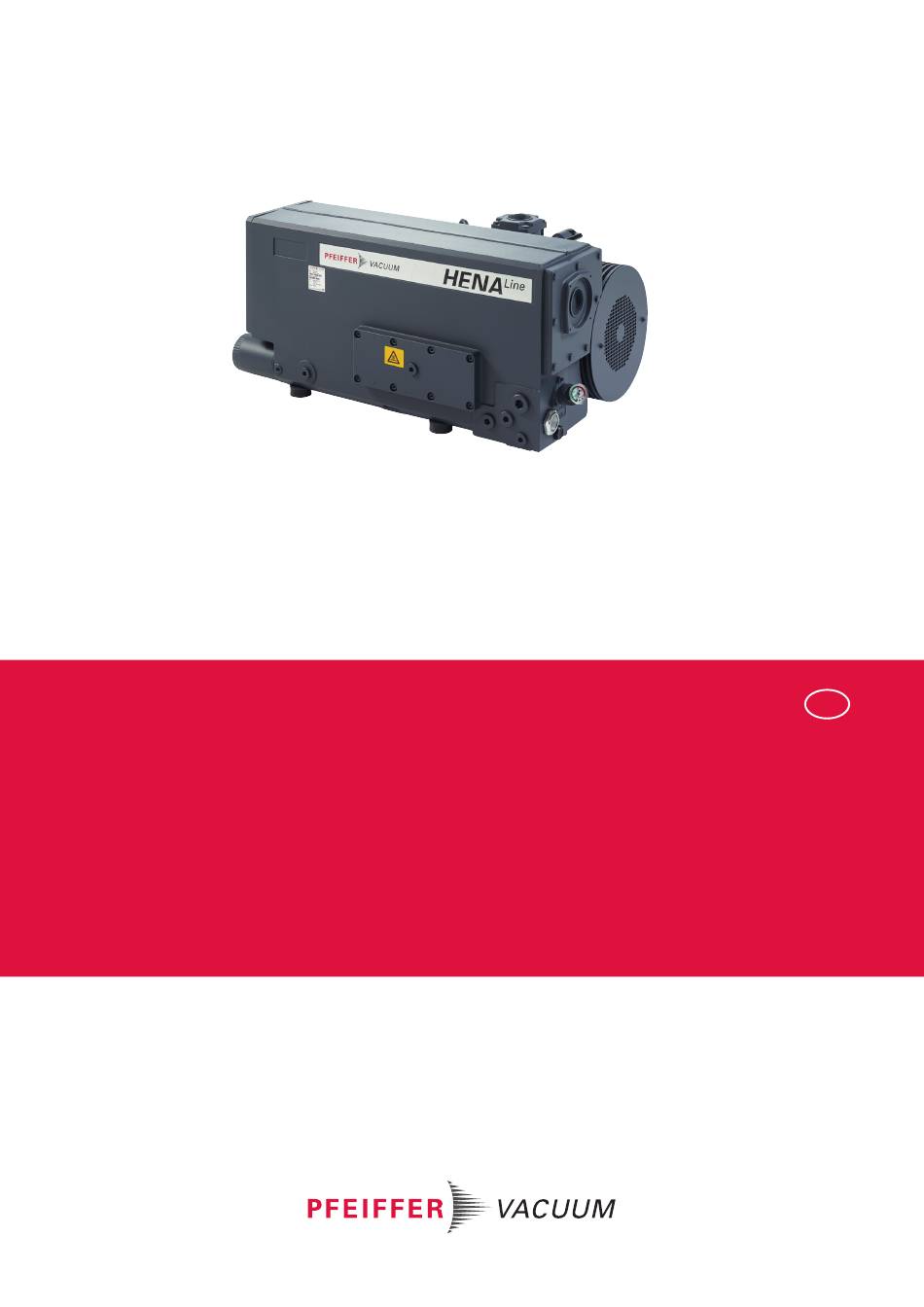

- Page 1 OPERATING INSTRUCTIONS Translation of the Original HENA 201 | 251 | 301 | 301 S Rotary vane pump...
- Page 2 Dear Customer, Thank you for choosing a Pfeiffer Vacuum product. Your new rotary vane pump is designed to support you by its performance, its perfect operation and without interfering your individual application. The name Pfeiffer Vacuum stands for high-quality vacuum technology, a comprehensive and complete range of top-quality products and first-class service.
-
Page 3: Table Of Contents
Proper use Foreseeable improper use Personnel qualification 2.7.1 Ensuring personnel qualification 2.7.2 Personnel qualification for maintenance and repair 2.7.3 Advanced training with Pfeiffer Vacuum Product description Function 3.1.1 Operating fluid 3.1.2 Operating fluid return via the float valve 3.1.3 Cooling 3.1.4 Gas ballast... - Page 4 Decommissioning Shutting down for longer periods Recommissioning Disposing of the vacuum pump Malfunctions Service solutions from Pfeiffer Vacuum Spare parts 11.1 Ordering spare parts packs 11.2 Operating fluids – Maintenance level 1 11.3 Maintenance kit – maintenance level 2 11.4 Overhaul kit – maintenance level 3 11.5 Set of seals...
- Page 5 Features of the rotary vane pumps Tbl. 5: Requirements on the cooling water composition Tbl. 6: Motor protection switch setting values for Hena 201 (from index "A") Tbl. 7: Motor protection switch setting values for Hena 251 | Hena 301 (from index "A") Tbl.
- Page 6 Dismantling / assembling the intake strainer Fig. 21: Cleaning the gas ballast filter Fig. 22: Dimensions Hena 201 | Three phase motor IE3 Fig. 23: Dimensions Hena 251 | Three phase motor IE3 Fig. 24: Dimensions Hena 301 | Three phase motor IE3 Fig.
-
Page 7: About This Manual
Keep the manual for future consultation. 1.1 Validity These operating instructions are for customers of Pfeiffer Vacuum. They describe the function of the designated product and provide the most important information for safe usage of the product. The de- scriptions comply with applicable directives. All information provided in these operating instructions refer to the current development status of the product. -
Page 8: Pictographs
This section describes all the stickers on the product along with their meaning. Rating plate (example) Rating plate of the rotary vane vacuum pump D-35614 Asslar Mod. Hena 201 Motor rating plate (not shown) PK D03 455 A xxxxxxxxx P3 6.5 l S (N ) max. -
Page 9: Abbreviations
About this manual 1.3.4 Abbreviations Abbreviation Meaning in this document Operating instructions Internal diameter Efficiency of the electric motors (premium efficiency class) N.N. Mean sea level Earthed conductor (protective earth) Temperature-dependent resistor (positive temperature coefficient) Polyvinyl chloride (PVC) width across flats RSSR Radial shaft seal ring Maintenance manual... -
Page 10: Safety
Safety 2 Safety 2.1 General safety instructions This document includes the following 4 risk levels and 1 information level. DANGER Imminent danger Indicates a hazardous situation which, if not avoided, will result in death or serious injury. ► Instructions on avoiding the hazardous situation WARNING Possibly imminent danger Indicates a hazardous situation which, if not avoided, could result in death or serious injury. - Page 11 Safety Risks during installation DANGER Danger to life from electric shock Contact with exposed and live elements generate an electric shock. Incorrect connection of the mains supply leads to the risk of live housing parts that can be touched. There is a risk to life. ►...
- Page 12 Safety CAUTION Danger of burns on hot surfaces Depending on the operating and ambient conditions, the surface temperature of the vacuum pump can increase to above 70 °C. ► Provide suitable touch protection. Risks during maintenance, decommissioning and malfunctions WARNING Health hazard through poisoning from toxic contaminated components or devices Toxic process media result in contamination of devices or parts of them.
-
Page 13: Safety Precautions
Safety CAUTION Scalding from hot operating fluid Danger of burns when draining operating fluid if it comes into contact with the skin. ► Wear protective equipment. ► Use a suitable collection vessel. CAUTION Danger of burns on hot surfaces In the event of a fault, the surface temperature of the vacuum pump can increase to above 105 °C. ►... -
Page 14: Limits Of Use Of The Product
(F4, F5, A113) as operating fluid. ► Adhere to the installation, commissioning, operating, and maintenance instructions. ► Do not use any accessory parts other than those recommended by Pfeiffer Vacuum. 2.6 Foreseeable improper use Misuse of the product invalidates all warranty and liability claims. Improper use is any, even unintended, use, which is contrary to the product purpose;... -
Page 15: Ensuring Personnel Qualification
─ Customer with Pfeiffer Vacuum service training ─ Pfeiffer Vacuum service technician 2.7.3 Advanced training with Pfeiffer Vacuum For optimal and trouble-free use of this product, Pfeiffer Vacuum offers a comprehensive range of courses and technical trainings. For more information, please contact Pfeiffer Vacuum technical training. -
Page 16: Product Description
Product description 3 Product description 3.1 Function The rotary vane pumps of the HenaLine are single-stage, oil-sealed rotary positive displacement pumps with air cooling and circulatory lubrication. A non-return valve in the vacuum connection closes the in- take line automatically when the rotary vane pump is switched off and prevents an operating fluid return flow. -
Page 17: Operating Fluid Return Via The Float Valve
The vacuum pump is cooled by heat radiation from its surface, the air flow of the two fan impellers and by the pumped gas. In case of thermally unfavorable ambient conditions, Pfeiffer Vacuum recommends the use of a pump version with oil/water heat exchanger. The oil/water heater is installed at the factory. The oil/water heat exchanger cannot be retrofitted. -
Page 18: Transportation And Storage
► Always transport the vacuum pump horizontally or without operating fluid filling. ► Fill in the operating fluid only at the final installation location. Pfeiffer Vacuum recommends keeping the transport packaging and original protective cov- General information regarding safe transport 1. -
Page 19: Storing The Vacuum Pump
4. Lift the vacuum pump out of the transport packaging. 5. Always place the vacuum pump on an adequately sized, level surface. 4.2 Storing the vacuum pump Pfeiffer Vacuum recommends storing the products in their original transport packaging. Procedure 1. Seal the vacuum and exhaust connection. -
Page 20: Installation
Property damage from contaminated gases Pumping down gases that contain impurities (condensate, particles) damages the vacuum pump. ► Use suitable filters or separators from the Pfeiffer Vacuum range of accessories, to protect the vacuum pump. Installation and operation of accessories Pfeiffer Vacuum offers a series of special, compatible accessories for its rotary vane pumps. -
Page 21: Connecting The Exhaust Side
8. Use a separator or filter from the Pfeiffer Vacuum line of accessories if necessary. As an alternative, screwing flanges DN 63/100 ISO-K / G 2" are available from Pfeiffer Vacuum Acces- sories. 5.4 Filling the operating fluid NOTICE Risk of damage due to the use of non-approved operating fluid Product-specific performance data are not achieved. -
Page 22: Connect The Oil/Water Heat Exchanger
Installation Required consumables ● Operating fluid of the vacuum pump Required aids ● Funnel (optional) Max. Min. Fig. 6: Filling the operating fluid 1 Filler screw Sight glass 2 O-ring Drain screw Filling the operating fluid 1. Unscrew the filler screw. 2. -
Page 23: Tbl. 5: Requirements On The Cooling Water Composition
Installation Parameter Cooling water Appearance ● filtered ● mechanically clear ● visually clear ● no turbidity ● no sediment ● free from grease and oil pH value 7 to 9 Carbonate hardness, max. 10 °dH 12.53 °e 17.8 °fH 178 ppm CaC0 Chloride content, max. -
Page 24: Establishing Mains Connection
► Route the mains connection in accordance with locally applicable provisions. ► Always provide a suitable mains fuse to protect the motor and supply cable in the event of a fault. – Pfeiffer Vacuum recommends the circuit breaker type "K" with slow tripping characteristic. NOTICE Property damage from high starting torque The specific load behavior of the vacuum pump requires direct on-line starting at full motor power. -
Page 25: Connect Three Phase Motor With 6-Pin Terminal Board
Installation Connect the three phase motor with delta connection ► Connect the three phase motor according to the connection diagram. Fig. 10: Star circuit Connect the three phase motor with star circuit ► Connect the three phase motor according to the connection diagram. 5.6.2 Connect three phase motor with 6-pin terminal board There are 2 different circuit configurations: ●... -
Page 26: Checking The Direction Of Rotation
380 – 400 12.1 25.6 24.2 24.2 12.1 12.1 Tbl. 6: Motor protection switch setting values for Hena 201 (from index "A") Voltage [V] Frequency [Hz] Motor rating [kW] 190 – 200 32.6 220 – 230 28.2 380 – 400 16.3... -
Page 27: Connecting The Ptc Thermistor Tripping Unit
Installation 5.6.6 Connecting the PTC thermistor tripping unit Pfeiffer Vacuum recommends connecting motors with PTC in the stator winding to a PTC resistor trip- ping device for protection against overload. Tripping units store the shut-down. F1 - F3 AC 220 ... 240 V T1...T3... -
Page 28: Operation
Operation 6 Operation 6.1 Putting the vacuum pump into operation WARNING Danger of poisoning due to toxic process media escaping from the exhaust pipe During operation with no exhaust line, the vacuum pump allows exhaust gases and vapors to escape freely into the air. There is a risk of injury and fatality due to poisoning in processes with toxic process media. -
Page 29: Operating The Rotary Vane Pump With Gas Ballast
Operation CAUTION Danger of burns on hot surfaces Depending on the operating and ambient conditions, the surface temperature of the vacuum pump can increase to above 70 °C. ► Provide suitable touch protection. NOTICE Risk of damage to the drive from increased motor current consumption At an intake pressure of approximately 300 hPa and under unfavorable operating conditions (such as for example exhaust side counterpressure), the power input exceeds the rated current. -
Page 30: Refilling Operating Fluid
Operation ''I'' ''0'' Fig. 14: Gas ballast valve 1 Gas ballast valve Gas ballast filter Behavior with process gases with condensable vapors ► Operate the vacuum pump with gas ballast, i.e. with the gas ballast valve open. Open gas ballast valve ►... -
Page 31: Switching Off The Vacuum Pump
Operation Procedure 1. Unscrew the filler screw. 2. With the vacuum pump at operating temperature, refill with operating fluid up to the top marking before the minimum fill level is reached. 3. Screw in the filler screw again. – Be careful with the O-ring. 6.5 Switching off the vacuum pump NOTICE Contamination from operating fluid backflow... -
Page 32: Maintenance
► Dismantle the vacuum pump for inspection, away from the system if necessary. NOTICE Danger of property damage from improper maintenance Unprofessional work on the vacuum pump will lead to damage for which Pfeiffer Vacuum accepts no liability. ► We recommend taking advantage of our service training offering. -
Page 33: Tbl. 8: Maintenance Intervals
Maintenance We recommend Pfeiffer Vacuum Service for carrying out maintenance work of Maintenance Level 2 and Maintenance Level 3 (revision). If the required intervals listed below are exceeded, or if mainte- nance work is carried out improperly, no warranty or liability claims are accepted on the part of Pfeiffer Vacuum. -
Page 34: Changing The Operating Fluid
Should process conditions change, you can convert to a different operating fluid type. Safety data sheets You can obtain the safety data sheets for operating fluids from Pfeiffer Vacuum on request, or from the Pfeiffer Vacuum Download Center. -
Page 35: Changing The Operating Fluid
► Wear protective equipment. ► Use a suitable collection vessel. Cleaning by changing the operating fluid Pfeiffer Vacuum recommends, in cases of heavy contamination with process residues, cleaning the inside of the vacuum pump with several operating fluid changes. Prerequisites ●... -
Page 36: Rinsing And Cleaning The Rotary Vane Vacuum Pump
– Be careful with the O-ring. 7.3.3 Rinsing and cleaning the rotary vane vacuum pump Cleaning by changing the operating fluid Pfeiffer Vacuum recommends, in cases of heavy contamination with process residues, cleaning the inside of the vacuum pump with several operating fluid changes. Prerequisites ●... -
Page 37: Changing The Operating Fluid Filter
Maintenance 7.3.4 Changing the operating fluid filter The operating fluid filter must be changed: ● in event of saturation ─ You can recognize a saturated operating fluid filter by the fact that the filter housing is cool on the outside while the rotary vane pump is running at operating temperature. ●... -
Page 38: Dismantling The Exhaust Filters
Maintenance Change the exhaust filter annually Pfeiffer Vacuum recommends replacing the exhaust filter in the operating fluid separator annually, depending on the work process and the contamination incurred during the proc- ess. Signs for saturation of the exhaust filter: ● higher current consumption of the motor ●... -
Page 39: Mounting The Exhaust Filters
Maintenance 6. Pull the filter unit completely out of the operating fluid separator. 7. Dismantle the clamping plate. 8. Replace the exhaust filters. 7.4.2 Mounting the exhaust filters Prerequisites ● Vacuum pump switched off ● Vacuum pump vented to atmospheric pressure ●... -
Page 40: Cleaning The Intake Strainer
Maintenance 6. Fit the separator cover plate with new flat seal. 7. Tighten the screws on the separator cover plate evenly. – Tightening torque: 21 Nm. During operation, the new exhaust filter becomes saturated with oil. It is therefore normal for the operat- ing fluid fill level to drop slightly after the filters were changed. -
Page 41: Changing The Operating Fluid Type
Maintenance As the soiling increases, the throughput of the gas ballast filter decreases. The risk of condensation and corrosion in the vacuum pump increases. Required consumables ● Compressed air Fig. 21: Cleaning the gas ballast filter 1 Gas ballast filter Gas ballast line 2 Gas ballast valve Removing and cleaning the gas ballast filter... -
Page 42: Decommissioning
9. Pack the vacuum pump together with a drying agent in a plastic bag, and seal the vacuum pump airtight if it is to be stored in rooms with damp or aggressive atmospheres. 10. For longer storage periods (> 2 years), Pfeiffer Vacuum recommends changing the operating fluid again prior to recommissioning. -
Page 43: Malfunctions
► Wear personal protective equipment if necessary. NOTICE Danger of property damage from improper maintenance Unprofessional work on the vacuum pump will lead to damage for which Pfeiffer Vacuum accepts no liability. ► We recommend taking advantage of our service training offering. -
Page 44: Tbl. 9: Troubleshooting For Rotary Vane Pumps
● Top up the operating fluid. ● Leak in system ● Locate and eliminate the leak. ● Vacuum pump is dam- ● Contact Pfeiffer Vacuum Service. aged Pumping speed of vacuum ● The intake line is not ● Make sure that connections are... -
Page 45: Service Solutions From Pfeiffer Vacuum
We are consistently striving to perfect our core competence, service for vacuum components. And our service is far from over once you’ve purchased a product from Pfeiffer Vacuum. It often enough really just begins then. In proven Pfeiffer Vacuum quality, of course. - Page 46 Service solutions from Pfeiffer Vacuum 5. Prepare the product for transport in accordance with the details in the declaration of contamination. a) Neutralize the product with nitrogen or dry air. b) Close all openings with airtight blank flanges. c) Seal the product in appropriate protective film.
-
Page 47: Spare Parts
P 0920 591 E Gas ballast filter PK 100 171 -U Manometer, 0 – 1 bar PK 100 127 Tbl. 10: Spare parts packages Hena 201 Spare parts package Order no. Set of seals PK E60 023 -T Maintenance kit... -
Page 48: Overhaul Kit - Maintenance Level
Spare parts ● Operating fluid filter ● Filter material 11.4 Overhaul kit – maintenance level 3 The overhaul kit contains all the wear parts of the vacuum pump that must be replaced after the vacuum pump has been dismantled and cleaned: ●... -
Page 49: Accessories
Accessories 12 Accessories View the range of accessories for rotary vane pumps on our website. 12.1 Accessory information Operating fluid level switch Monitors operating fluid level Operating fluid temperature switch Monitors operating fluid temperature Condensate separator Protects the pump from liquids from inlet line or backlow from exhaust line Dust separators Protects the pump from particles out of processes Magnetized gas ballast valve... -
Page 50: Technical Data And Dimensions
Technical data and dimensions 13 Technical data and dimensions 13.1 General Basis for the technical data of Pfeiffer Vacuum rotary vane pumps: ● Specifications according to PNEUROP committee PN5 ● ISO 21360-1: 2016: “Vacuum technology - Standard methods for measuring vacuum-pump per- formance - Part 1: General description”... -
Page 51: Tbl. 17: Technical Data Hena 201 | Hena 251
IP55 Motor protection Switch included Mains cable included Weight 182 kg 227 kg Tbl. 17: Technical data Hena 201 | Hena 251 Classification Hena 301 Hena 301 S Hena 301 Order number PK D03 450 PK D03 455 PK D03 461 Connection: At- Female thread G 2"... -
Page 52: Dimensions
Technical data and dimensions Classification Hena 301 Hena 301 S Hena 301 Water vapor toler- 40 hPa 40 hPa 40 hPa ance at 60 Hz Emission sound ≤ 74 dB(A) ≤ 74 dB(A) ≤ 74 dB(A) pressure level without gas bal- last at 50 Hz Emission sound ≤... -
Page 53: Fig. 22: Dimensions Hena 201 | Three Phase Motor Ie3
± 1.5 G 2'' DIN ISO 228-1 256.5 G 2'' ± 1.5 ± 1.5 DIN ISO 228-1 Ø 4 x M10 4 x M10 Ø (305 ±1.5 ± 2 Fig. 22: Dimensions Hena 201 | Three phase motor IE3 53/60... -
Page 54: Fig. 23: Dimensions Hena 251 | Three Phase Motor Ie3
Technical data and dimensions 1072 ± 2 ± 1.5 G 2'' DIN ISO 228-1 ± 1.5 G 2'' DIN ISO 228-1 Ø 4 x M10 (351 ± 1.5 ± 2 Fig. 23: Dimensions Hena 251 | Three phase motor IE3 54/60... -
Page 55: Fig. 24: Dimensions Hena 301 | Three Phase Motor Ie3
Technical data and dimensions 1073 ± 2 ± 1.5 G 2'' DIN ISO 228-1 ± 1.5 G 2'' DIN ISO 228-1 Ø 4 x M10 (350 ± 1.5 ± 2 Fig. 24: Dimensions Hena 301 | Three phase motor IE3 55/60... -
Page 56: Fig. 25: Dimensions Hena 301 | Three Phase Motor Ie3 And Oil/Water Heat Exchang
Technical data and dimensions 1103 ± 2 ± 1.5 G 2'' ± 1.5 G 2'' DIN ISO 228-1 DIN ISO 228-1 256.5 Ø 50 4 x M10 (350.5 ± 1.5 ± 2 Fig. 25: Dimensions Hena 301 | Three phase motor IE3 and oil/water heat exchanger 56/60... -
Page 57: Fig. 26: Dimensions Hena 301 S | Three Phase Motor Ie3
Technical data and dimensions 1033 ± 2 ± 1.5 G 2'' DIN ISO 228-1 G 2'' ± 1.5 DIN ISO 228-1 4 x M10 Ø 50 ± 1.5 ± 2 Fig. 26: Dimensions Hena 301 S | Three phase motor IE3 57/60... -
Page 58: Declaration Of Conformity
DIN EN ISO 2151 : 2009-01 DIN EN 13849-1: 2016-06 The authorized representative for the compilation of technical documents is Mr. Sebas- tian Oberbeck, Pfeiffer Vacuum GmbH, Berliner Straße 43, 35614 Asslar, Germany. Signature: Pfeiffer Vacuum GmbH Berliner Straße 43... - Page 59 59/60...
