3M TH-310 Instructions

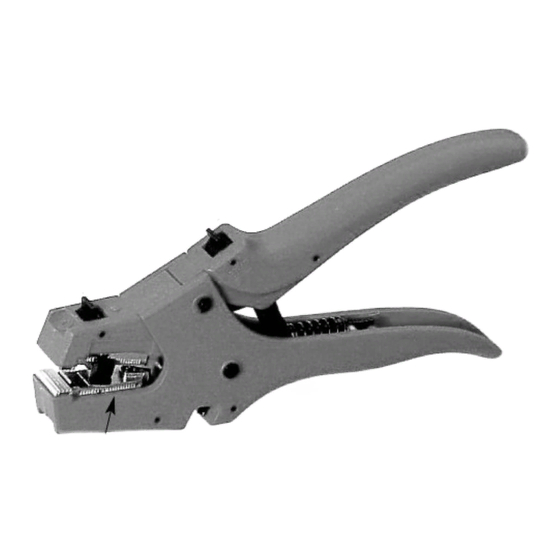

Wire stripper, wire insulation od range: 0.01 - 0.20 inches 0.25 - 5.0 mm
Hide thumbs
1
2

Advertisement

Table of Contents

TH-310 Wire Stripper
Wire Insulation OD Range: 0.01 - 0.20 inches (0.25 - 5.0 mm)
Instructions
Warning: Do Not Use on Energized Circuits

Tool Adjustment:

• Set stripping to proper depth. (Forward to
increase, backward to decrease depth).
• Set strip length stop to desired strip
length. (Squeeze sides of strip length stop
to position).
• Set handle tension for desired operation.

Stripping Wire:

• Insert wire all the way to the wire stop.
• Close handles to strip.
• Release handles remove wire.
Stripping Wire:
• Insert wire into cutter.
• Close handles to cut wire.
Handle Tension Adjustment
Stripper Blade
Adjustment
Strip Length Stop
Wire Cutter
