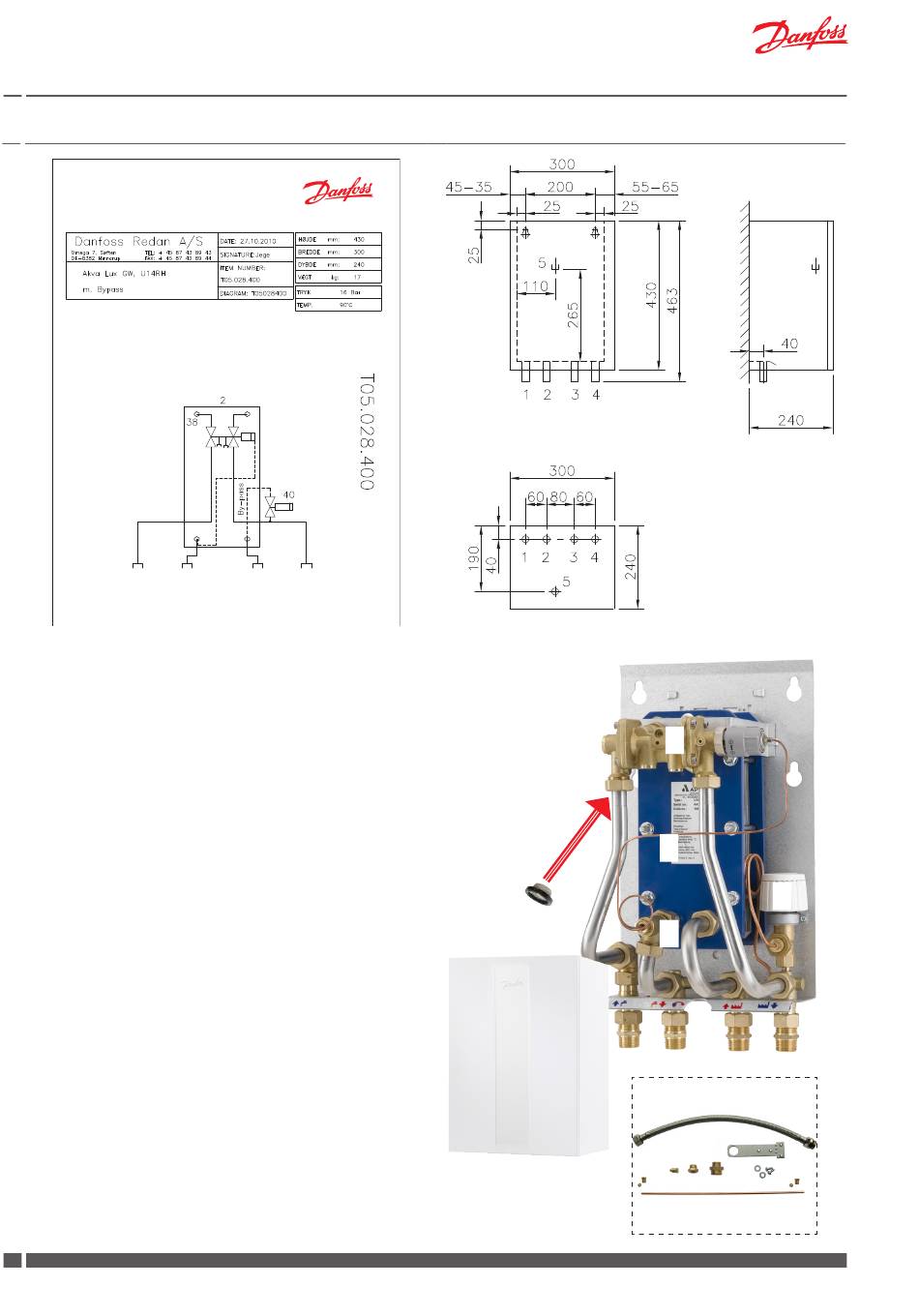

8.0 Akva Lux II GW - Diagram example, measurements and main components

2 Plate heat exchanger U141RH
38 Domestic hot water controller PTC2+P
40 Danfoss FJVR
DCW DHW
Main components
1. Plate heat exchanger, gasketed, DHW
2. DHW controller PTC2+P
3. Bypass thermostat Danfoss FJVR
4. Sensor PTC2+P / sensor pocket
5. Connection nipples
6. White-lacquered cover (optional equipment)
F. Filter on cold water inlet
C. The water heater is prepared for DHW circulation
Fittings for DHW connection are supplied loose.
See instruction on page 14.
Accessories
Danfoss AVE expansion unit for pressure relief.
For systems, on which you want to avoid to have to establish
a discharge pipe, which extends from the water heater safety
valve and terminates at floor level, or is piped directly into
the floor drain, an AVE expansion unit is available as optional
equipment.
(AVE expansion unit must not be used on systems with DHW
recirculation).
6
DKDHR
Water Heaters
DH DH
Supply Return
VI.GP.N2.02
Wall
Top view
F
6
2
1
3
4
5
C
