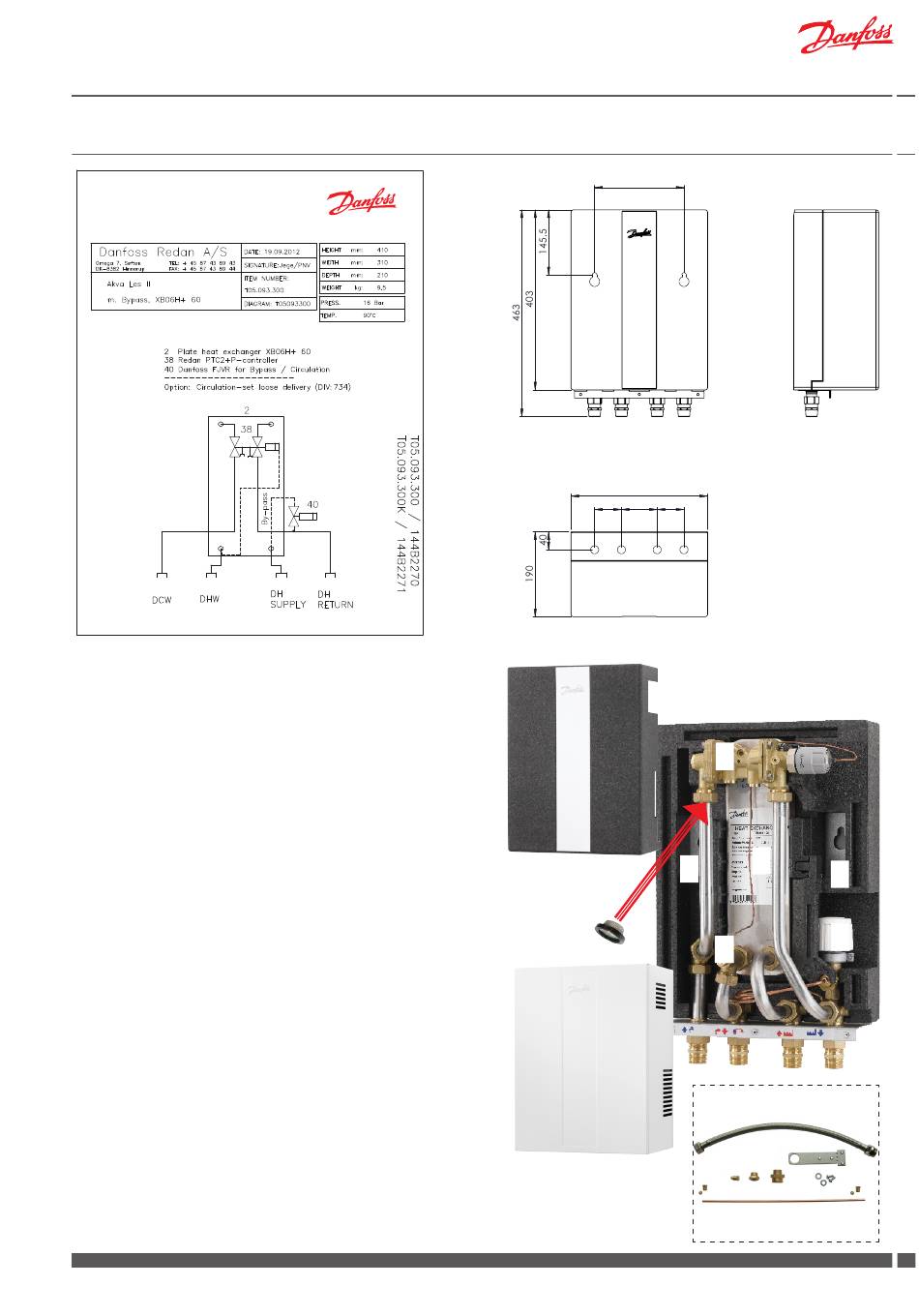

7.0 Akva Les II - Diagram example, measurements and main components

Main components
1. Plate heat exchanger, brazed, DHW XB06H+ 60
2. DHW controller PTC2+P
3. Bypass thermostat Danfoss FJVR
4. Sensor PTC2+P / sensor pocket
5. Connection nipples
6. Mounting bracket
7. Insulation cover (back part)
8. Insulation cover (front part)
9. White-lacquered cover (optional equipment)
F. Filter on cold water inlet
C. The water heater is prepared for DHW circulation
Fittings for DHW connection are supplied loose.
See instructions on page 13.
Accessories
Danfoss AVE expansion unit for pressure relief.
For systems, on which you want to avoid to have to establish
a discharge pipe, which extends from the water heater safety
valve and terminates at floor level, or is piped directly into
the floor drain, an AVE expansion unit is available as optional
equipment.
(AVE expansion unit must not be used on systems with DHW
recirculation).
Danfoss District Energy
Water Heaters
1
A
B
C
D
E
F
1
8
9
VI.GP.N2.02
2 3
200
306
60 80 60
2 3
2
1
6
F
4
C
4
7
4
6
3
5
5 5
DKDHR
G
W
R
D
A
C
N
d
