Danfoss Akva Lux II Instructions Manual page 10

Instructions

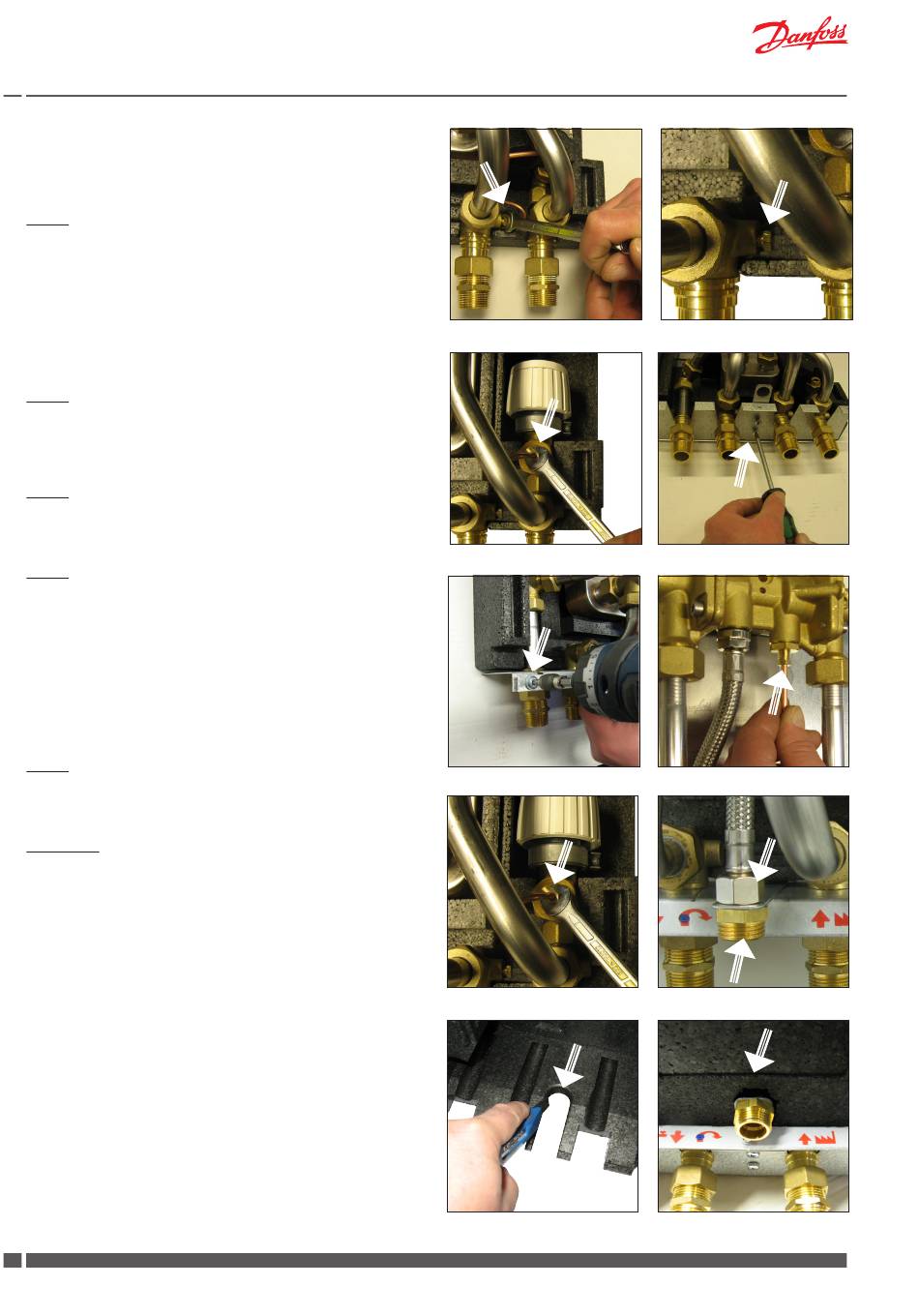

Fig. 9
Demount capillary tube from T-piece.
Fig. 10
Mount m8 x 1 screw plug F in T-piece.
Fig. 11
Demount capillary tube from T-piece as shown.
Fig. 12
Mount support rail and tighten screws D with your screwdriver, as
shown.
Fig. 13
Fix locking rail to support rail.
Fig. 14
Fit new capillary tube G on nipple B by means of union nut and
cutting ring H. - Tighten with single end wrench
Fig. 15
Fit the other end of the capillary tube G on T-piece by means of
union nut and cutting ring H. - Tighten with single end wrench.
Fig. 16
Fix circulation hose end B2 and nipple E in bracket, as shown
Fig. 17 + 18
Cut out a section of the front insulation as shown, in order to be
able to fix the front insulation cover after mounting of circulation
pipe.
10 DKDHR
