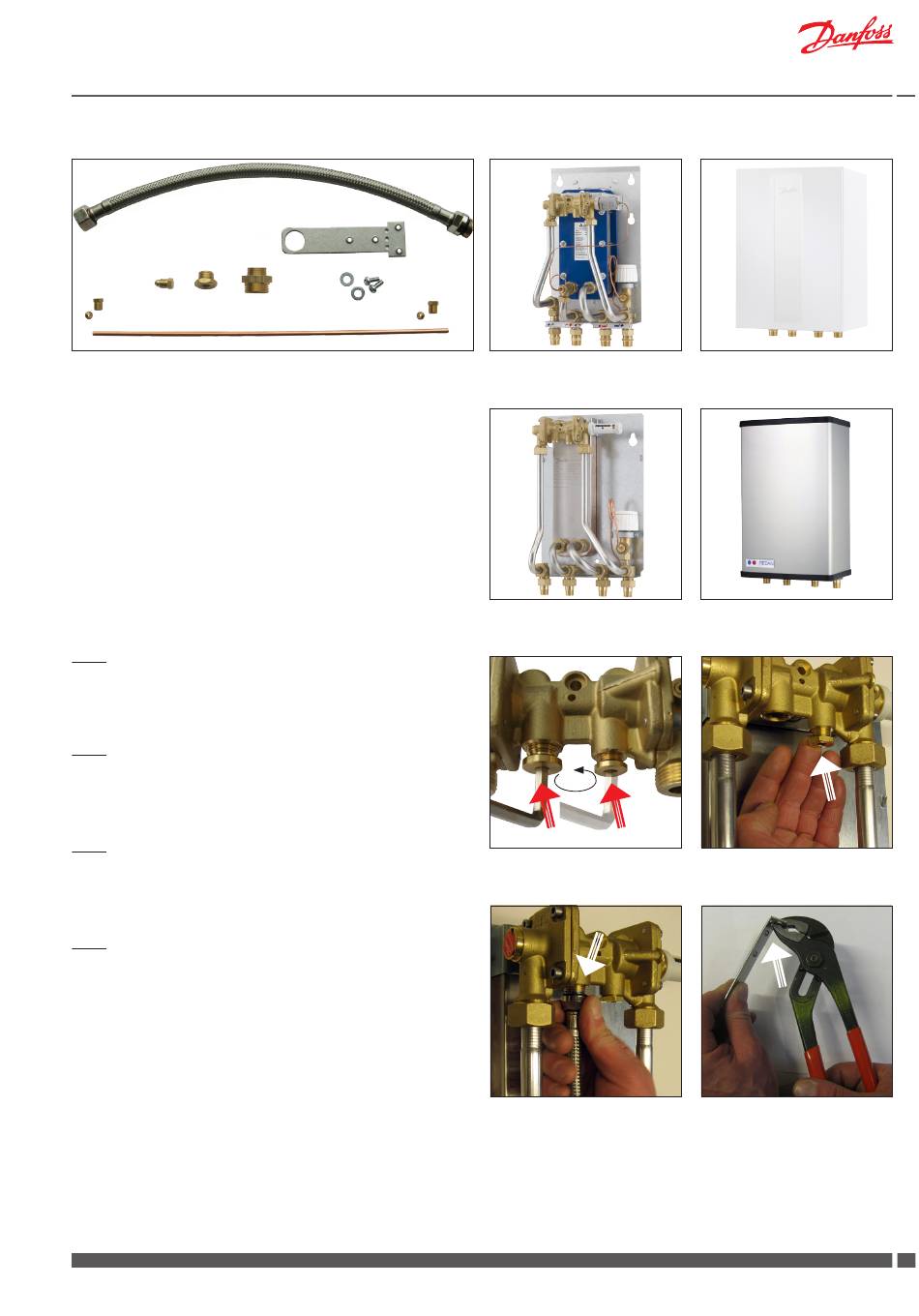

10.4 Recirculation connection - Akva Lux II GW and Akva Vita II

B2
F A
H
G
Remember always to mount circulation pump and non-return valve
on the circulation pipe and to mount safety valve on the DCW inlet.
The pump must be installed so that the pump is pumping water
towards the water heater.
This not part of the circulation set.
Fig. 1
Demount plugs (6 mm Allen key) from controller.
Fig. 2
Mount nipple A in controller.
Fig. 3
Mount circulation hose end B1, as shown.
Fig. 4
Prepare bracket C for mounting on mounting plate by making a
90-degree bend on one end, using a pair of pliers.
This applies only to type C Akva Vita II. - For type B, Akva Lux II GW,
it is not necessary to make a 90-degree bend on the bracket before
mounting.
Danfoss District Energy
Water Heaters
C
E
D
B1
H
Akva Lux II GW
Akva Vita II
Fig. 1
Fig. 3
VI.GP.N2.02
Fig. 2
Fig. 4
