Instructions

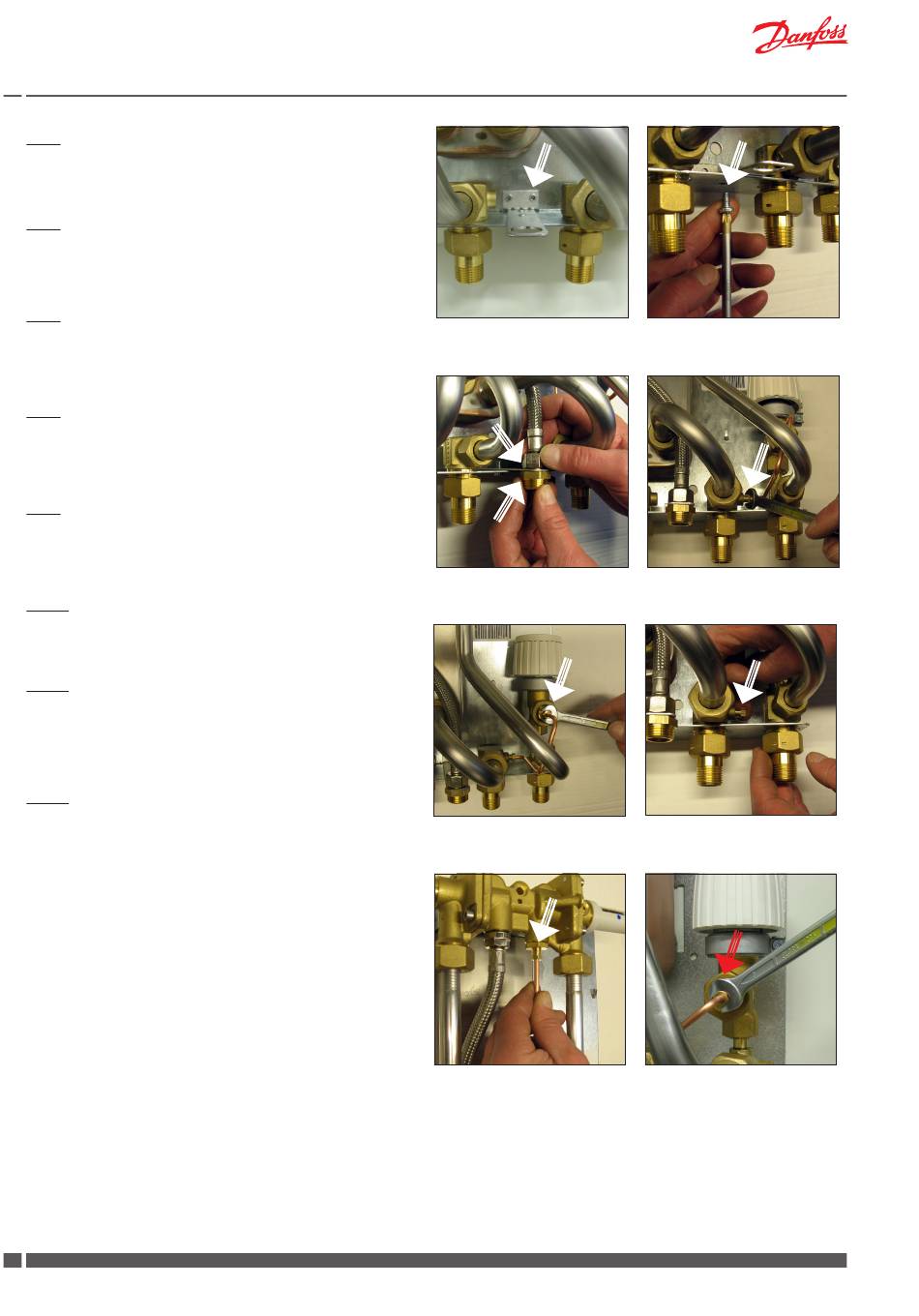

Fig. 5
Place bracket C on mounting plate as shown.
Fig. 6
Fasten bracket C on mounting plate with nuts and bolts D.
Fig. 7
Mount circulation hose end B2 and nipple E in bracket as shown.
Fig. 8
Demount capillary tube from T-piece.
Fig. 9
Demount capillary tube from bypass thermostat.
Fig. 10
Mount M8 x 1 screw plug F in T-piece.
Fig. 11
Fit new capillary tube G on nipple B by means of union nut and
cutting ring H. - Tighten with single end wrench.
Fig. 12
Fit the other end of the capillary tube G on T-piece by means of
union nut and cutting ring H. - Tighten with single end wrench.
12 DKDHR
Water Heaters
Fig. 5
Fig. 7
Fig. 9
Fig. 11
VI.GP.N2.02
Fig. 6
Fig. 8
Fig. 10
Fig.12
