The functions of the voice modes are:
Poly:
polyphonic playback of the eight voices
Poly1+7: 1 monophonic voice and 7 polyphonic voices, allocated
to two adjacent MIDI-channels
Chord+4: 4 free polyphonic voices and four voices being used for a
chord, allocated to two adjacent MIDI-channels
Mono:
8 monophonic voices, allocated to eight adjacent MIDI-
channels
Unisono: all 8 voices are played monophonic by the same MIDI-
channel
Rotate:
the eight voices are addressed by a single MIDI-channel,
but called up one after another
Changes of the voice assignment using Type need to be confirmed
by pressing ENTER to allow the preset to distribute the voices
correctly.

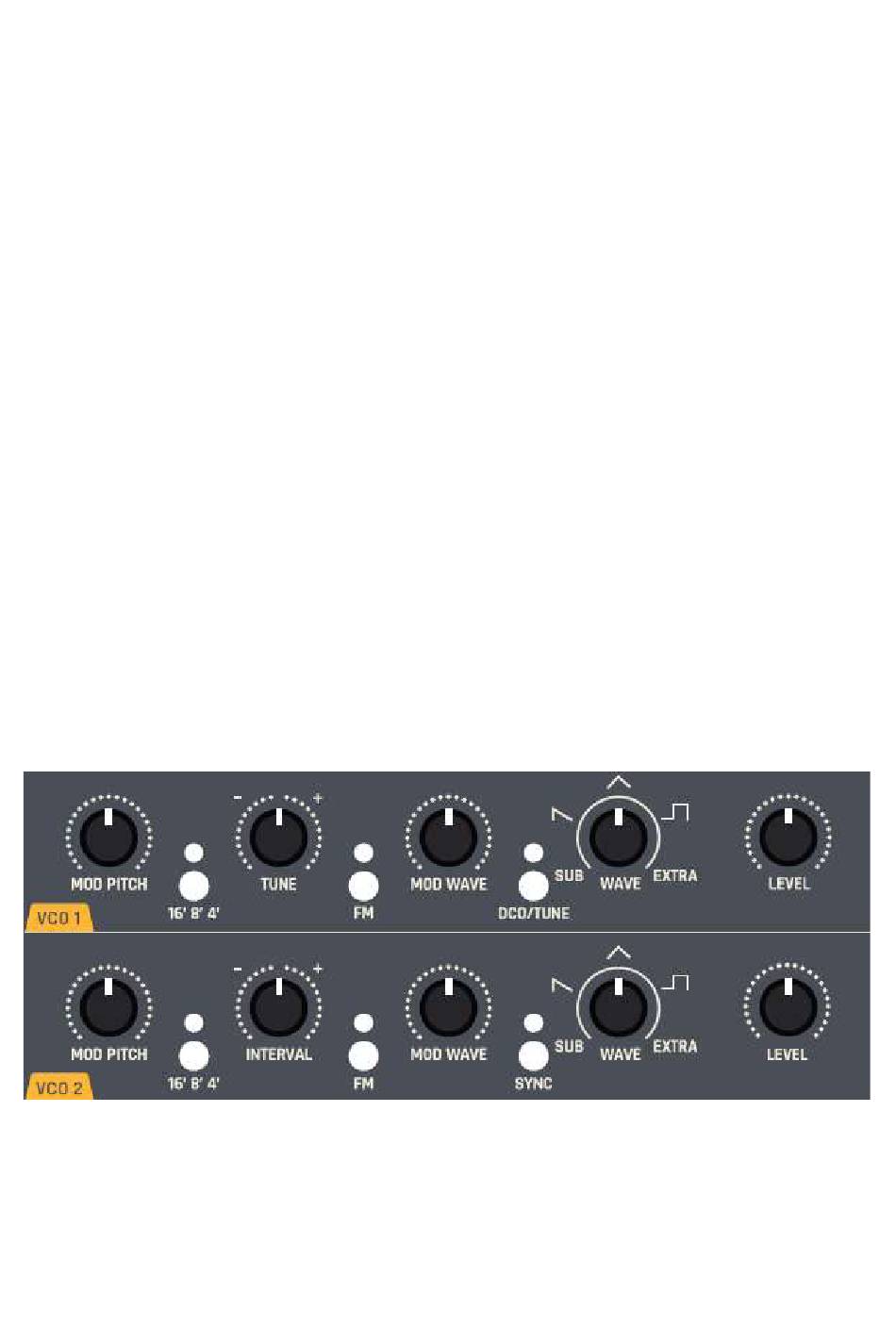

OSCILLATORS
SYNTH PRO offers three equally powerful analog oscillators (VCO).
The functions for VCO 1, VCO 2 and VCO 3 slightly differ in some
parameters.
Pitch
Each oscillator can be separately adjusted in its octave register
using the 16' 8' 4' buttons. The corresponding LED will be lit red for
16', green for 8' and red/green for 4'.
9
