With the LED above the RESET/1 SHOT button being turned off, the
LFO cycles continuously. In RESET mode (LED being lit red), the LFO-
waveform will be restarted with each received MIDI-note. In 1 SHOT
mode (LED being lit green), the LFO will be restarted with each
received MIDI-note, but will only complete a single cycle. In this
mode, the LFO can be used like a simple envelope, whose course is
defined by the selected WAVE.
Sync-values to the internal or an external clock as well as a
modulation of LFO 1 by LFO 2 can be set in the MENU LFO Setting.
LFO1 Sync: Gate, 1/16, 1/8, 3/16, 1/4, 3/8, 2/4, 3/4, 4/4
LFO2 Sync: Gate, 1/16, 1/8, 3/16, 1/4, 3/8, 2/4, 3/4, 4/4
LFO2 > LFO1: 00-31

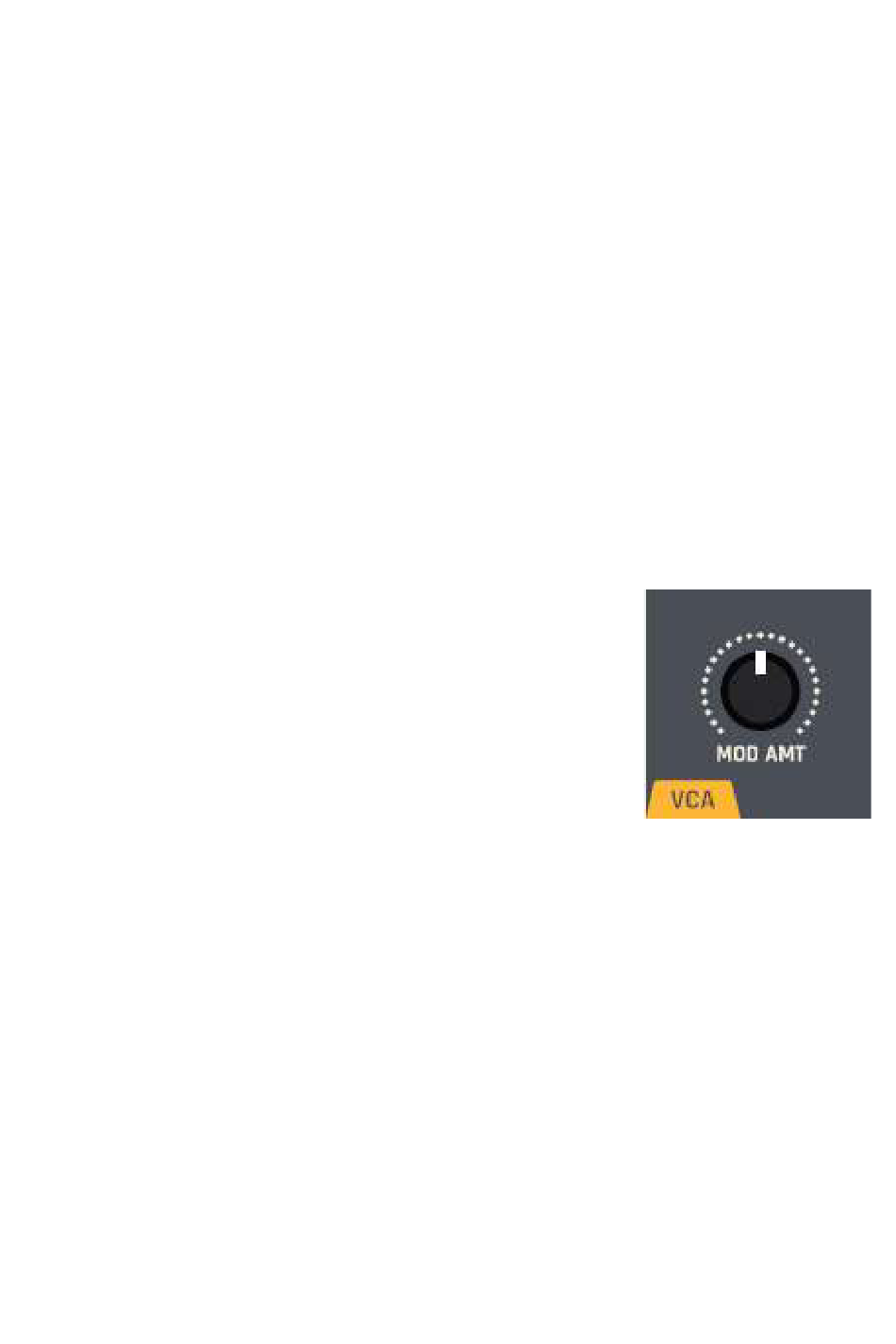

VCA
Typically, the VCA is controlled by envelope
ENV 1. An additional modulation is possible by a
second source which acts subsidiary to the
envelope control. Use the MOD AMT control to
set the intensity of the second modulation
source.
The modulation sources for the VCA are assigned in MENU VCA
Setting. Here, the velocity can also be enabled/disabled.
Envelope: Env1, Env2, Env3
Modulation: LFO1, Inv1, LFO2, Inv2, ModW, AftT
Velocity: on, off
16
