GETTING STARTED WITH CART

Unpacking
The Starsys Mobile Power cart will arrive fully assembled and fully functional at the customer's site (most accessories do
not ship assembled to the cart. After cutting the strapping bands, lift the top of the box over the cart. In order to avoid any
injury, two (2) people should lift the cart from the padding blocks.
Power Supply Preparation
CAUTION: Before placing the Li-Nano Power Supply into service on a Starsys cart, the Li-Nano batteries must be
connected. These batteries have been disconnected prior to shipment due to USDOT and IATA regulations.
Connecting the Power Supply Batteries
CAUTION: Only qualified service personnel should perform the following procedure for connecting the Power Supply
Batteries.

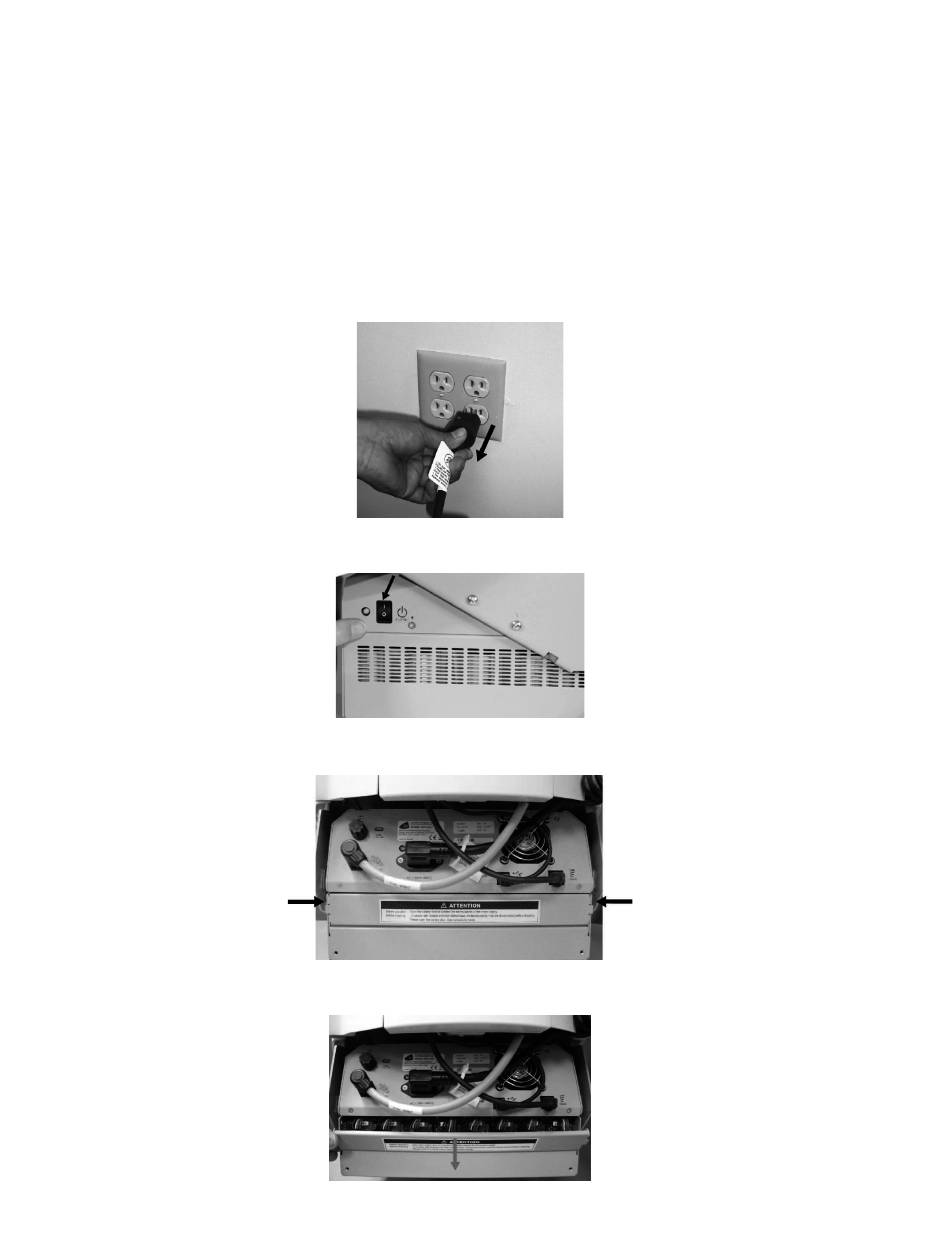

1. The AC cable must be disconnected from the wall outlet as shown in Figure 2.
2. The Normal Operation/OFF switch of the Power Supply must be in the Standby (down) position as shown in Figure 3.
3. Remove screw from each side of power supply that hold the battery connector access panel as shown in Figure 4.
REMOVE SCREW
4. Rotate the battery connector access panel down by gripping the tab on either side as shown in Figure 5.
F 2: D
igure isConneCt
F 3: P s
igure ower uPPly
F 4: P
igure ower
F 5: b C
igure attery onneCtor
4
aC C
able
s D s
witCh own to tanDby
REMOVE SCREW
s r V
uPPly ear iew
a P
CCess anel
