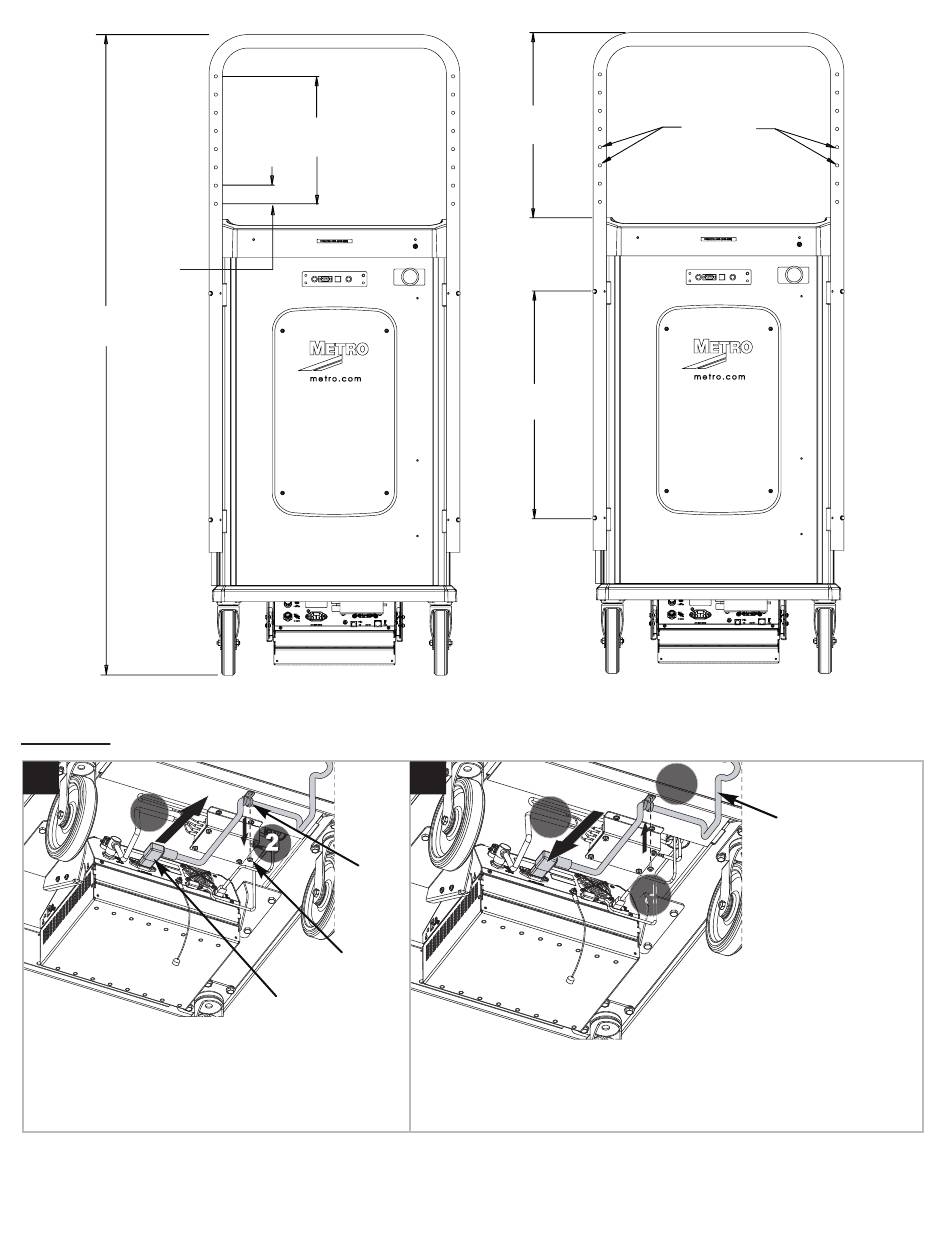

Metro DataVac STARSYS Instructions For Use Manual page 10

1.68"
(42.9mm)
60"
(1524mm)
Power Cord
A
1
Note: Disconnect power cord from AC power source
before disassembly of power cord from power
supply.
1. Unplug power cord from power supply.
2. Loosen and remove screw from clamp.
3. Remove power cord from power supply.
11.81"
(284.2mm)
F 16: o
igure VerbriDge anD
B
2
Clamp
Screw
Power Cord
1. Transfer clamp to new power cord.
2. Fix and tighten retained screw to clamp it
to base of mobile power cart.
3. Plug new power cord to power supply.
17"
(431.8mm)
20.81"
(528.62mm)
M M h
onitor ount eights
3
10
MOUNTING
LOCATION OF
MONITOR RAIL
ON OVERBRIDGE
1
REFER TO SECTION
"Replacement Parts List"
FOR VARIOUS POWER
CORD OPTIONS
2
