Functional Description and Specifications

Disconnect battery pack from tool or place the switch in the locked or
WARNING
!
off position before making any assembly, adjustments or changing
accessories. Such preventive safety measures reduce the risk of starting the tool
accidentally.
BATTERY
RELEASE TABS
BUMP-OFF SLIDE
"ON/OFF" SWITCH
INTAKE
AIR VENTS
EXHAUST
AIR VENTS
RZVAC1
VACUUM ADAPTER
(Not included, available as
accessory)
DEPTH GUIDE
LOCKING
KNOB
Tool
Model number RZ18V
Voltage rating 18 V
No load speed n
0
11:04 AM Page 10
Cordless Spiral Saw™
COLLAR
DEPTH GUIDE
LOCKING
SCREW
30,000/min
BC006 charger requires 12 V DC input
NOTE: ONLY USE CHARGERS LISTED ABOVE
-10-
BATTERY PACK
BIT / COLLET
LOCK PIN
REMOVABLE
WRENCH STORAGE
SHAFT LOCK
COLLET NUT
DEPTH GUIDE
Charger
BC003, 4, 6, BC016, BC130 & BC230
Voltage rating 120 V
Battery pack BAT025, BAT026
BAT180 & BAT181

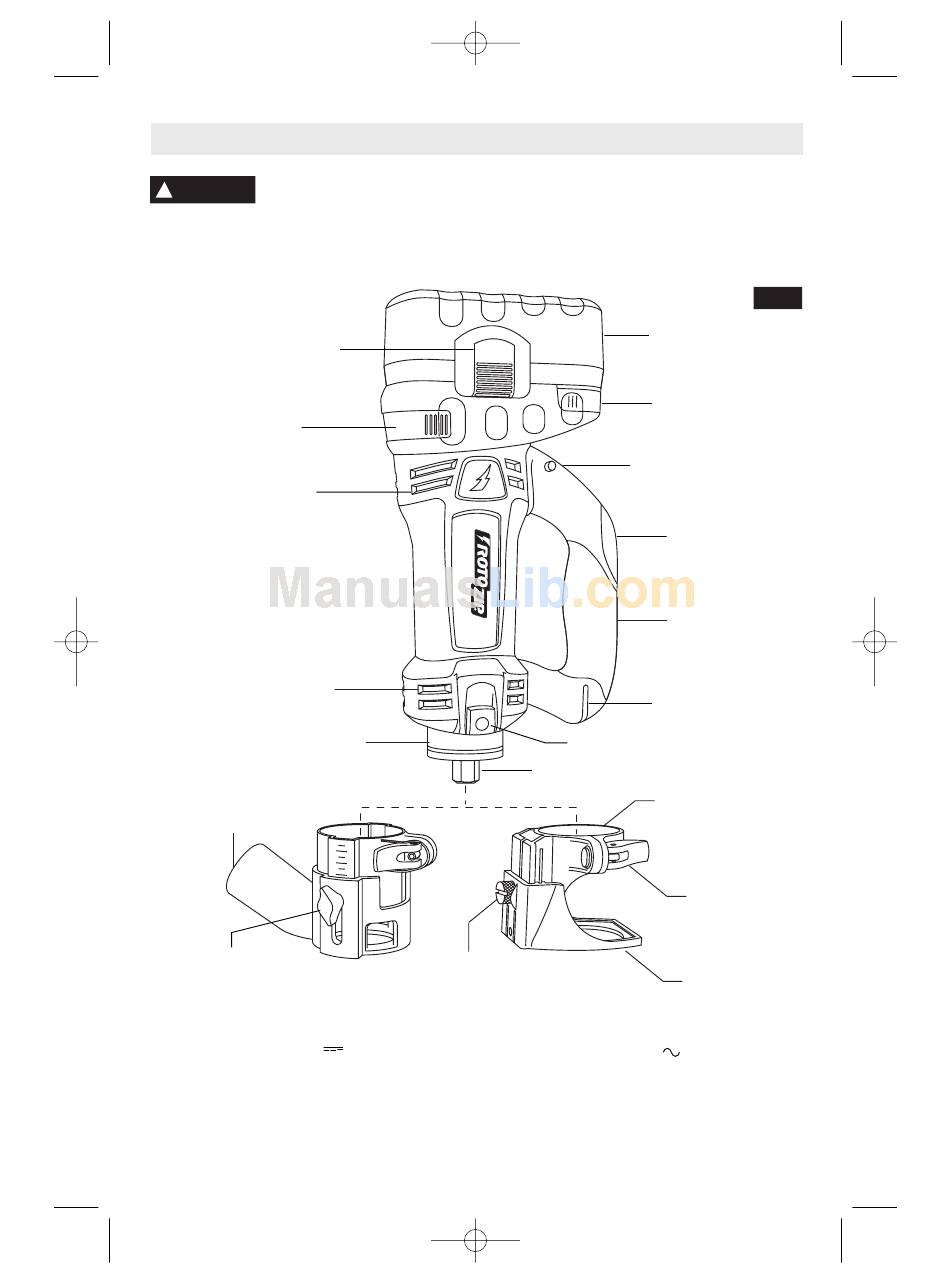

FIG. 1
STORAGE
BIT / COLLET
STORAGE
HARD
AUXILIARY
CONTROL
HANDLE
BRACKET
LOCK LEVER
DEPTH
GUIDE
60 Hz
