INSTALLATION
REQUIREMENTS

Tools and Parts

Assemble the necessary tools and supplies before beginning the
washer installation. The parts supplied are in the washer drum.
Tools needed for connecting the water inlet hoses
Pliers (that open to 1
Flashlight (optional)
Tools needed for installation
Open end wrench in. (17 mm) and ½ in. (13 mm)
Level
Wood block (2" x 4")
Ruler or measuring tape
Parts supplied:
Beaded strap

Alternate Parts You May Need

Your installation may require additional parts. If you are interested
in purchasing one of the items listed here, call the toll-free
number on the cover or in the "Assistance or Service" section.
If You Have You Will Need to Buy
Laundry tub or Sump pump system (if not already
standpipe taller available)
than 96 in. (2.4 m)
Overhead sewer Standard 20 gal. (76 L), 30 in. (76.2 cm)
tall drain tub or utility sink and sump
pump (available from local plumbing
suppliers)
Floor drain Siphon break, Part Number 285834;
additional drain hose Part Number
8318155; and connector kit, Part
Number 285835
Drain hose too Drain hose extension kit, Part Number
short 285863
Water faucets 2 longer water fill hoses:
beyond reach of 6 ft (1.8 m) Part Number 76314,
fill hoses 10 ft (3.0 m) Part Number 350008
4
in. [39.5 mm])
Transport bolt hole plug (4)

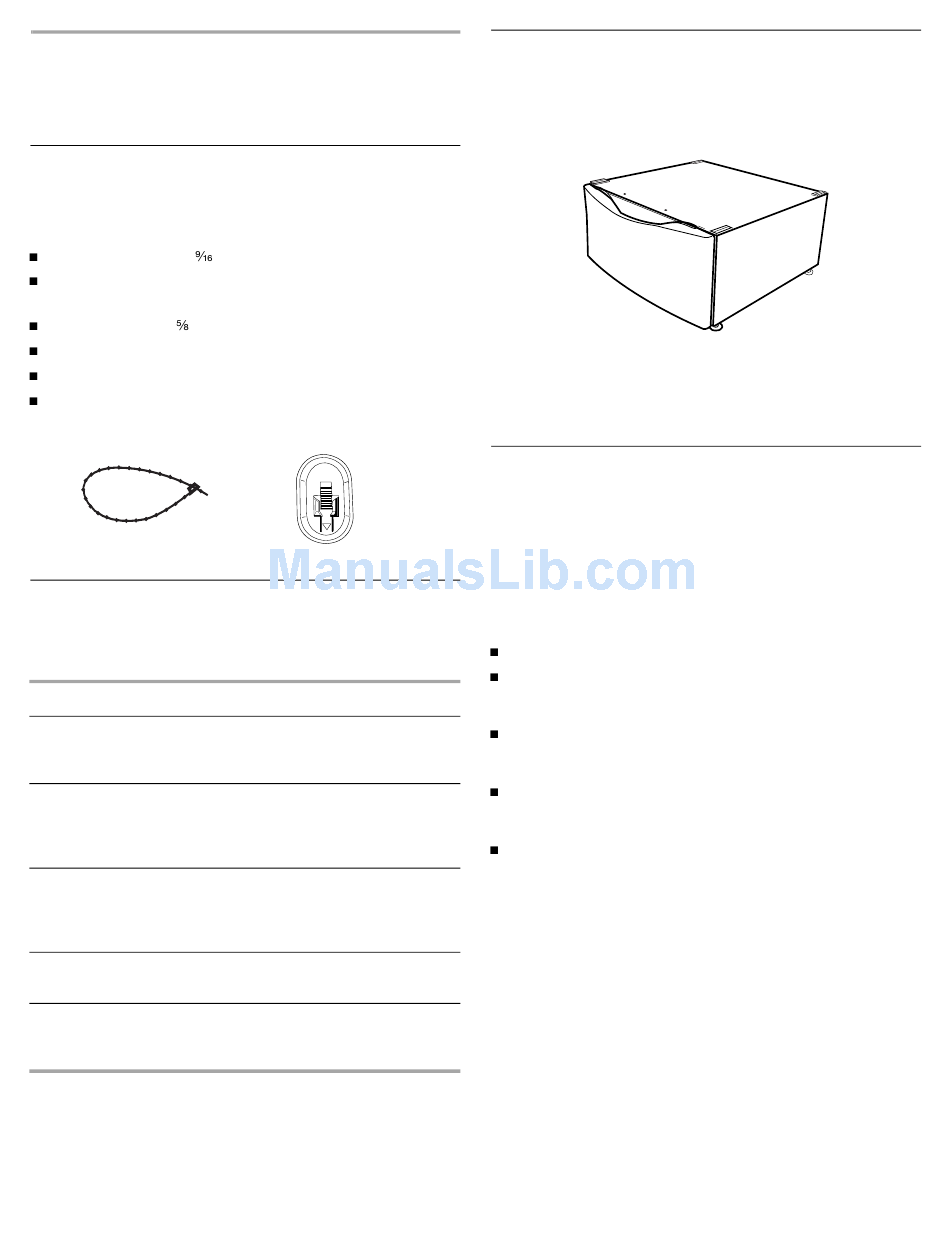

Optional Pedestal

A pedestal may be purchased separately for this washer. This
pedestal will add about 13 in. (33 cm) to the height of your unit for
a total vertical height of approximately 51 in. (130 cm).
Optional Pedestal
To order, call the dealer from whom you purchased your washer
or refer to the "Assistance or Service" section of this manual. Ask
for model number LAB2700LQ.

Location Requirements

Selecting the proper location for your washer improves
performance and minimizes noise and possible washer "walk."
Your washer can be installed under a custom counter, or in a
basement, laundry room, closet, or recessed area. (See "Drain
System.")
Companion appliance location requirements should also be
considered. Proper installation is your responsibility.
You will need
A water heater set to deliver 120°F (49°) water to the washer.
A grounded electrical outlet located within 5 ft (1.5 m) of
where the power cord is attached to the back of the washer.
(See "Electrical Requirements.")
Hot and cold water faucets located within 4 ft (1.2 m) of the
hot and cold water fill valves, and water pressure of
20-100 psi (137.9-689.6 kPa).
A level floor with a maximum slope of 1 in. (2.5 cm) under
entire washer. Installing the washer on carpeting is not
recommended.
A sturdy and solid floor to support the washer with a total
weight (water and load) of 400 lbs (180 kg).
Do not operate your washer in temperatures below 32°F (0°C).
Some water can remain in the washer and can cause damage in
low temperatures.
