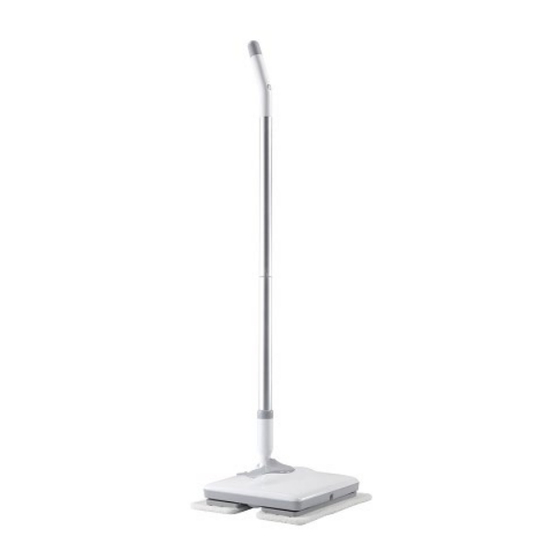

- Page 1 CORDLESS ELECTRIC MOP KAMOPEL11VA...
-
Page 3: Safety And Warnings
Ensure to dispose of batteries in an environmentally friendly manner, in accordance with local governmental rules and regulations. • If there is any damage to the cable, discontinue use and contact Kogan.com. • Make sure the unit is powered off before transporting and use the original packaging where possible. - Page 4 OVERVIEW Spray button Handle Pad attachments Spray nozzle Power button/ battery indicator LED Water filling hole Charging port Main unit In the box Measuring cup Cleaning pads Power adapter User guide Screws Allen key...
- Page 5 ASSEMBLY Connect the metal pipe to the pipe joint, then attach the handle with the fixing screws through the corresponding holes. Threaded Hole Connecting Pipe Joint Place the base on the ground and keep the joint part straight. Note: It may take some force to fold the movable handle.
- Page 6 Insert the connecting tube into the mop head and screw it in firmly. Place the cleaning pads on the ground and lift the machine to place it onto the cleaning pads. The cleaning pads will attach to the base of the mop head. Cleaning pads...
-
Page 7: Operation
OPERATION First time charging Pull out the rubber stopper and turn it until the whole charging port is uncovered. Plug in the charger into the charging port, and the battery indicator light will alternate between red and blue while charging. When fully charged (after approx. 3 hours) the indicator will be solid blue. -
Page 8: Power On/Off
Fill the water tank Open the cap of the water tank and fill it, using the measuring cup to add water. Do not exceed the maximum water level line. Securely close the cap after filling. • Maximum capacity of the water tank is 130ml. •... - Page 9 Spraying water Press the spray button on the handle and water will be sprayed; releasing the button will stop spraying accordingly. • Do not operate the spray function while the unit is charging. • The longest time of spraying will keep 5 seconds with one press. •...
- Page 10 Replacing cleaning pads Turn the machine upside down and hold the edge of the pad and then tear off it. Replacing handle batteries After extended use of the product, if pressing the spray button emits no water, the remote batteries in the handle may need to be replaced. •...
-
Page 11: Specifications
SPECIFICATIONS Item Parameters Battery Volume 1500mAh Rated Voltage DC 12V Rated Power Adapter Output Voltage DC 12.6V 1A Charging Time 2.5-3H TROUBLESHOOTING Appliance does not operate Low battery: ensure the battery is charged before use Ensure the original adaptor is used. Will not charge Check if the charging line is in good contact with the charging port... - Page 12 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
