Vimar 46260.5P.01 Installation And Operation Manual

Ethernet switches (poe 4 ports 4+1, poe 8 ports 8+2, 8 ports 8+2, poe 16 ports)
Hide thumbs
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Download this manual
Manuale per l'installazione e l'uso
Installation and operation manual
46260.5P.01
46260.10
46260.10P
46260.16P
Switch Ethernet (PoE 4 Porte 4+1, PoE 8 Porte 8+2, 8 Porte 8+2, PoE 16 porte)
Ethernet Switches (PoE 4 Ports 4+1, PoE 8 Ports 8+2, 8 Ports 8+2, PoE 16 ports)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 46260.5P.01 and is the answer not in the manual?

Questions and answers

Related Manuals for Vimar 46260.5P.01

Summary of Contents for Vimar 46260.5P.01

  • Page 1 Manuale per l’installazione e l’uso Installation and operation manual 46260.5P.01 46260.10 46260.10P 46260.16P Switch Ethernet (PoE 4 Porte 4+1, PoE 8 Porte 8+2, 8 Porte 8+2, PoE 16 porte) Ethernet Switches (PoE 4 Ports 4+1, PoE 8 Ports 8+2, 8 Ports 8+2, PoE 16 ports)
  • Page 2 AVVERTENZE PER L’INSTALLATORE - Leggere attentamente le av ver ten ze contenute nel pre sen te do cu men to in quanto for ni sco no importanti indicazioni ri guar dan ti la sicurezza di in stal la zio ne, d’uso e di ma nu ten zio ne. - Dopo aver tolto l’imballaggio assicurarsi dell’integrità...
  • Page 3 Ethernet: 5 luci verdi indicano che il collegamento Ethernet è attivo e in funzione; Temperatura di 0°C -55°C funzionamento Dati ambientali Umidità relativa 20-95% Temperatura di stoccaggio -20°C -70°C Dimensioni (L×P×H) 125mm*73mm*27mm Caratteristiche Colore Grigio argento meccaniche Peso 810g Stabilità MTBF >30000h VIMAR group...
  • Page 4 A: 48-57 Vcc B: 4 porte PoE C: Porte Uplink Istruzioni: 1 - Sul pannello anteriore sono disponibili 5 porte, di cui 4 porte PoE Ethernet 10/100/1000Mbps e 1 porta uplink; 2 - Stato degli indicatori a LED: Alimentazione: 1 luce rossa indica il funzionamento normale; PoE 4 luci gialle indicano che il PoE è...
  • Page 5 Dati ambientali Umidità relativa 20-95% Temperatura di stoccaggio -20°C -70°C Dimensioni (L×P×H) 207mm x95mmx27mm Caratteristiche Colore Grigio argento meccaniche Peso 1300g Stabilità MTBF >30000h Schema pannello A: 48-57 VCC B: 8 porte PoE C: 2 porte uplink VIMAR group...
  • Page 6 Istruzioni: 1 - Sul pannello anteriore sono disponibili 10 porte, di cui 8 porte PoE Ethernet a 10/100/1000Mbps e 2 porte uplink a 10/100/1000Mbps ; 2 - Stato degli indicatori a LED: Alimentazione: 1 luce rossa indica il funzionamento normale; PoE: 8 luci gialle indicano che il PoE è...
  • Page 7 Ethernet: 16 luci verdi indicano che il collegamento Ethernet è attivo e in funzione; Temperatura di 0°C -55°C funzionamento Dati ambientali Umidità relativa 20-95% Temperatura di stoccaggio -20°C -70°C Dimensioni (L×P×H) 440mmx290mmx44mm Caratteristiche Colore Grigio argento meccaniche Peso 4800g Stabilità MTBF >30000h VIMAR group...

  • Page 8: Procedura Di Installazione

    Schema pannello A: ingresso Vac 100-240 B: 16 porte PoE C: 2 porte Ethernet in uplink D: 2 porte SFP in uplink Istruzioni: 1 - Sul pannello anteriore sono disponibili 18 porte ethernet, di cui 16 porte PoE Ethernet in downlink a 10/100Mbps 2 Porte Ethernet e 2 porte SFP in uplink a 10/100/1000Mbps;...
  • Page 9 (compatible with the environment) help to avoid possible ne- gative effects on the environment and health and promote the recycling of material with which the product is compound. Product is according to EC Directive 2004/108/CE and following norms. VIMAR group...

  • Page 10: Specification

    1 PoE Ethernet Switch (4 PoE Ports +1) Features - 5x10/100/1000Mbps auto-sensing RJ45 ports, 4x 10/100/1000Mbps PoE ports, 1x uplink port; - Supports port auto-flip (Auto MDI/ MDIX); - External power supply; - Maximum power of single PoE port: 15.4W; - Adopts store-and-forward architecture;...
  • Page 11 1 - Front board have 5 ports, Provide 4 X 10/100/1000Mbps PoE Ethernet ports, Provide 1 Uplink ports; 2 - LED Indicator State: Power: 1 red light indicates that the power normal work; POE: 4 yellow light indicates that the POE is power on; Ethernet: 5 green light indicates that the Ethernet link and act; VIMAR group...

  • Page 12: Panel Diagram

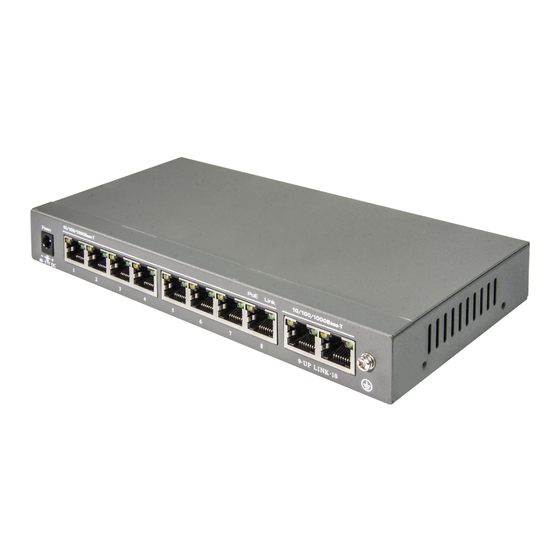

    2 PoE Ethernet Switch (8 PoE Ports 8+2) - 10 x 10/100/1000Mbps auto-sensing RJ45 ports, 8x 10/100/1000Mbps PoE ports, 2x 10/100/1000Mbps uplink port; - Supports port auto-flip (Auto MDI/ MDIX); - External power supply; - Maximum power of single PoE port: 15.4W; - Adopts store-and-forward architecture;...
  • Page 13 Indicator Working temperature 0°C ~55°C Environmental Relative Humidity 20~95% Storage temperature -20 °C ~70 °C Dimension (L×W×H) 283mm*178mm*45mm Mechanical Color Silver-Gray Weight 2250g Stability MTBF >30000h Panel diagram A: 100-240 Vac B: 8* ports C: 2* Uplink ports VIMAR group...
  • Page 14 Instruction: 1 - Front board have 10 ports, Provide 8 X 10/100/1000Mbps Ethernet ports, Provide 2 X Uplink ports; 2 - LED Indicator State: Ethernet: 10 green light indicates that the Ethernet link and act; 4 PoE Ethernet Switch (16 PoE + 2 Ports) - 16x 10/100 Mbps downlink PoE Ethernet Ports, 2x 1000Mbps uplink SFP Ports;...

  • Page 15: Installation Step

    The maximum transmission distance depends on the signal source and cable quality, please do not over the maximum transmission distance; Please replace a normal device with a failure one to check if the device is broken; If the problem still exist , please contact the factory. VIMAR group...
  • Page 16 Viale Vicenza, 14 36063 Marostica VI - Italy 49401120A0 00 1611 www.vimar.com...

This manual is also suitable for:

46260.1046260.10p46260.16p
