Description of Parts

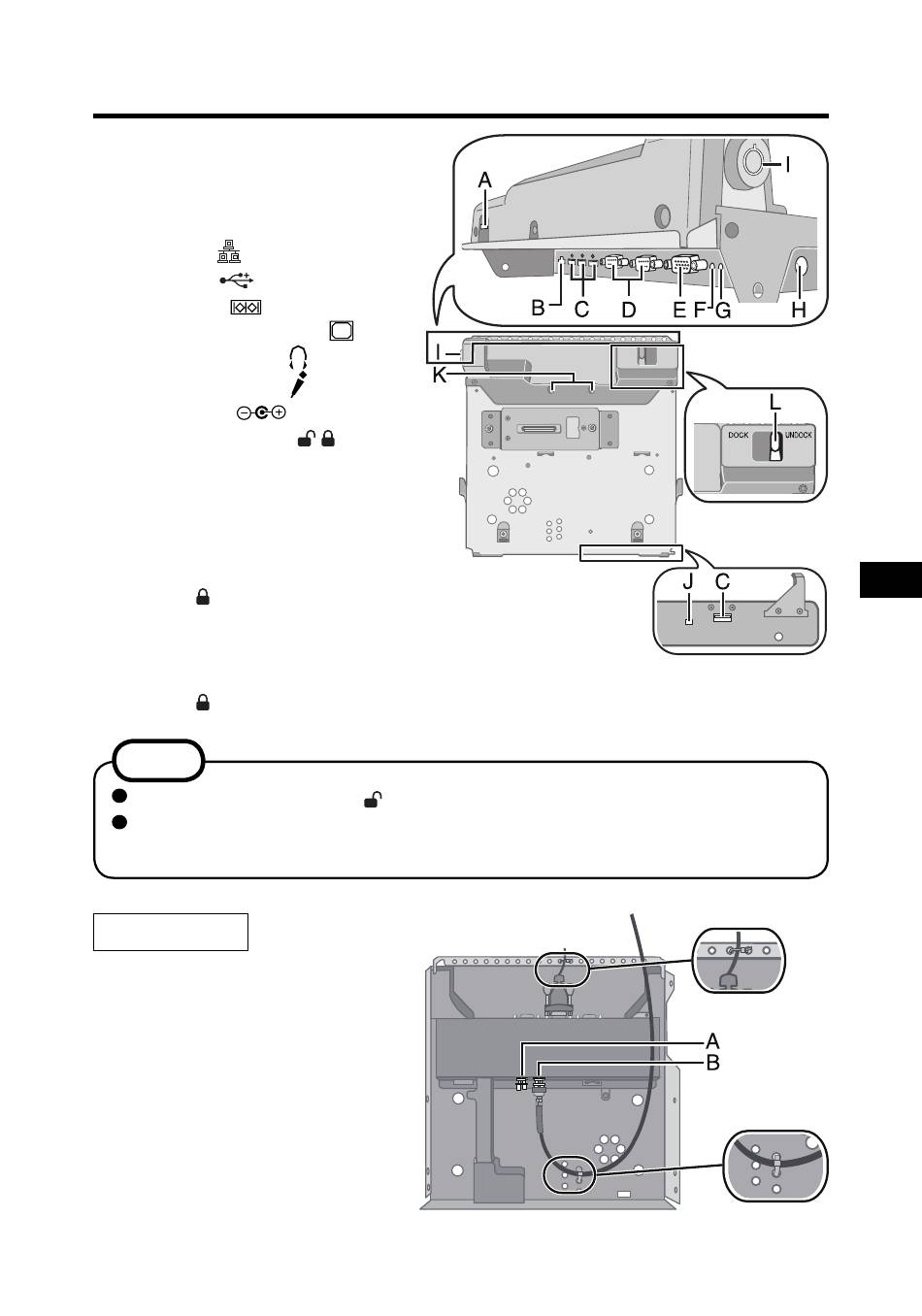

A. Security lock
LOCK
You can connect a Kensington
cable. Refer to the instruction
manual of the cable.
B. LAN port
C. USB port
D. Serial port
E. External display port
F. Headphone jack
G. Microphone jack
H. DC-IN jack
I. Key insertion slot
J. Dock indicator
K. Latch
L. Lever
DOCK UNDOCK
The lever is locked when the
key is inserted and turned
toward
side. When the
computer has been installed,
be absolutely sure to lock
this lever by turning the key
toward
side.
NOTE
The lock was turned to
When installing the computer, confi rm that the lever is slid toward the
UNDOCK side.
Bottom Side
A. External ANT A
External antenna port
of computer (lower port)
(optional)
B. External ANT B
External antenna port of
computer (upper port)
(optional)
DC IN 16V
DOCKED
side in the default setting.
