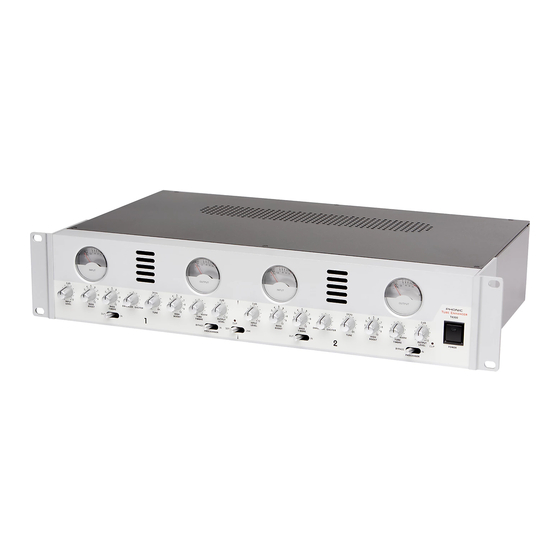

Phonic T8300 User Manual

Tube enhancer
Hide thumbs

Advertisement

Quick Links

Download this manual
T8300
TUBE ENHANCER
T8300
English

Advertisement

loading

  Related Manuals for Phonic T8300

  Summary of Contents for Phonic T8300

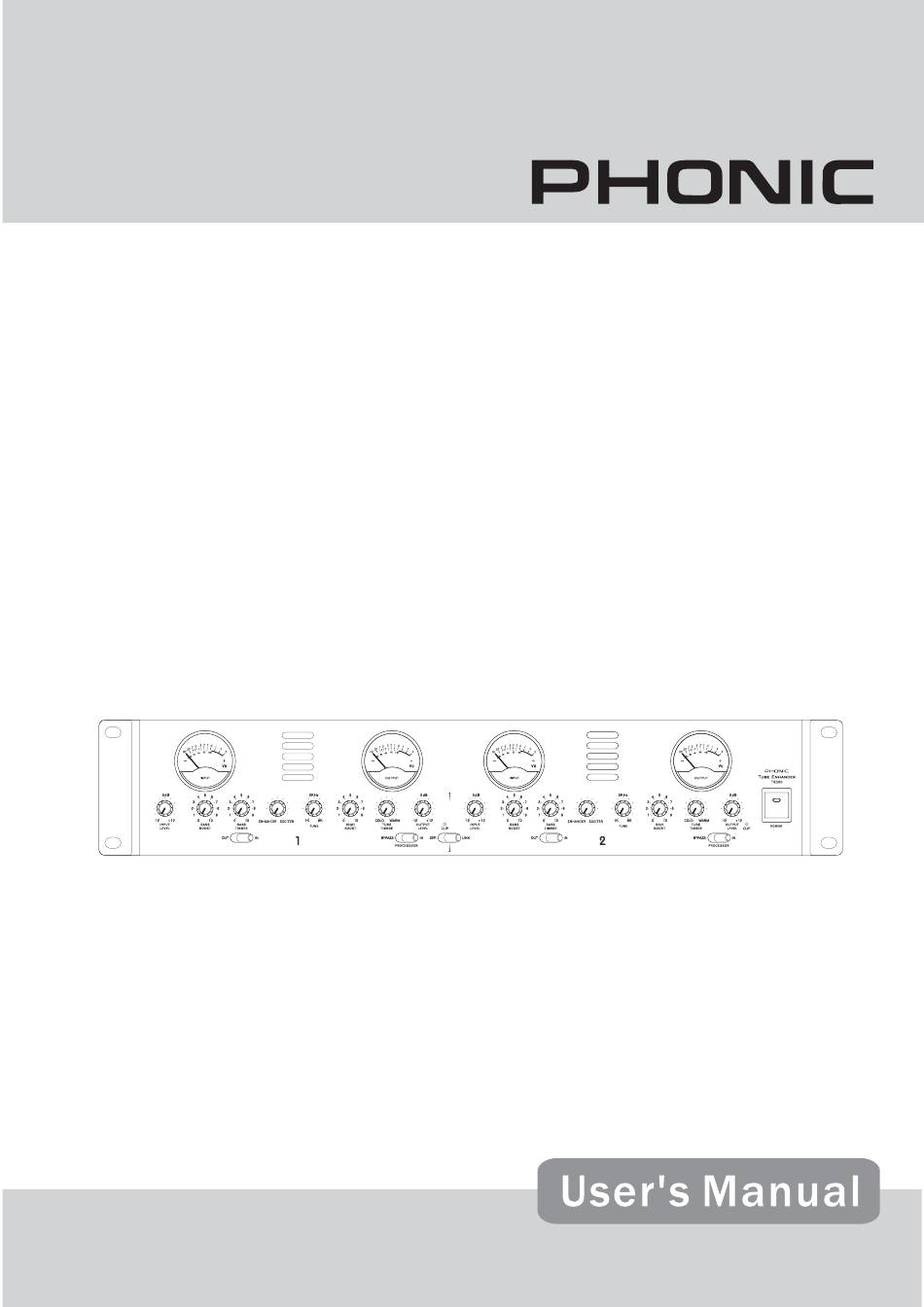

  • Page 1 T8300 TUBE ENHANCER T8300 English...
  • Page 2 IMPORTANT SAFETY INSTRUCTIONS The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus. The MAINS plug is used as the disconnect device, the disconnect device shall remain readily operable.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION ..........................4 FEATURES...........................4 CONTROLS & CONNECTIONS....................5 INITIAL SETUP ..........................6 APPLICATIONS..........................7 BLOCK DIAGRAM........................10 DIMENSIONS..........................11 SPECIFICATIONS........................12 APPENDIX ..........................13 Phonic reserves the right to improve or alter any information supplied within this document without prior notice. V1.1 OCT 28, 2005...

  • Page 4: Introduction

    INTRODUCTION FEATURES Thank you for choosing a Phonic professional audio Independent enhancement controls for low and product. The T8300 Tube Enhancer is a new high bands generation two-channel professional tube enhancer Variable frequency range for the exciter that excites the high frequency band as well as Variable tube effect for fine adjustment on bass enhancing the low frequency sounds.

  • Page 5: Controls & Connections

    A bypass switch is useful for a quick comparison this knob to add more “punch” to the bass sound, between processed and unprocessed sounds. such as a drum. Turn it down to make the bass sound rounder. ” “ T8300...

  • Page 6: Initial Setup

    (-10 dBV when depressed, and +4 find the best enhancer-to-exciter ratio. level released). This setting should match the n- ominal operating level of the target device. In g- eneral, consumer products use -10 dBV, while professional products use +4 dBu. T8300...

  • Page 7: Applications

    If there is an insert point on your mixer, you may process the signal from that insert point by connecting Appendix: Typical Connectors for an illustration of s- it to the Tube Enhancer via an insert cord. See “ ” ome insert cords. T8300...
  • Page 8 Tube Enhancer. Then, connect the Tube Enhancer’ s channel output to a bus input of your console (Output 1). Alternatively, you may opt for further processing by routing Tube Enhancer’s output signal through another signal processor before sending it to the console (Output 2). T8300...
  • Page 9 You may use the Tube Enhancer to enhance a studio recording. Connect your mixer ’ s record output to the input of the Tube Enhancer, and then connect Tube Enhancer ’ s output to the input of a recorder. T8300...

  • Page 10: Block Diagram

    BLOCK DIAGRAM T8300...

  • Page 11: Dimensions

    DIMENSIONS T8300...

  • Page 12: Specifications

    Standard IEC connector Operating Voltages 100-120V AC 60 Hz, 220-240V AC 50 Hz Fuse 100-120V AC: 1Ah; 200-240V AC: 500 mAh Physical Dimension (WxHxD) 483 x 88 x 286 mm (19 x 3.5 x 11.25 in.) Weight 4.9 kg (10.8 lbs.) T8300...

  • Page 13: Appendix

    APPENDIX: Typical Connectors T8300...
  • Page 14 To purchase Phonic gear and optional accessories, contact any authorized Phonic distributor. For a list of Phonic distributors please visit our website at www.phonic.com and click on Get Gear. You may also contact Phonic directly and we will assist you in locating a distributor near you.
