Attaching the optional ice
maker to a water supply
(cont.)
Connecting to refrigerator
NOTE: The first step for connecting
the water line to your refrigerator is
different depending
on the type of
water valve provided with your refrig-
erator. See the diagrams at right to
determine the style of valve you have.
(On kit models, assemble water valve
to refrigerator per kit instructions.)
1.
For style #l, disconnect
the tube
clamp on the back of the product
and insert the copper tubing
through the clamp, as shown at
the right. Remove the tape label
from the valve inlet and insert
copper tubing until it bottoms out
(approximately
3/4-inch). Tighten
nut by hand as much as possible;
then turn the nut an additional
l/z
turn using a wrench. Do not
overtighten.
Re-attach the tube
clamp and tube to the back of the
cabinet. Skip to step 2.
For style #2, disconnect
the tube
clamp on the back of the product
and insert copper tubing through
the clamp as shown at the right.
Attach the copper tube to the
valve inlet using a compression
nut and sleeve as shown. Tighten
the compression
nut. Do not
over-tighten. Re-attach the tube
clamp and tube to the back of the
cabinet. Move to step 2.

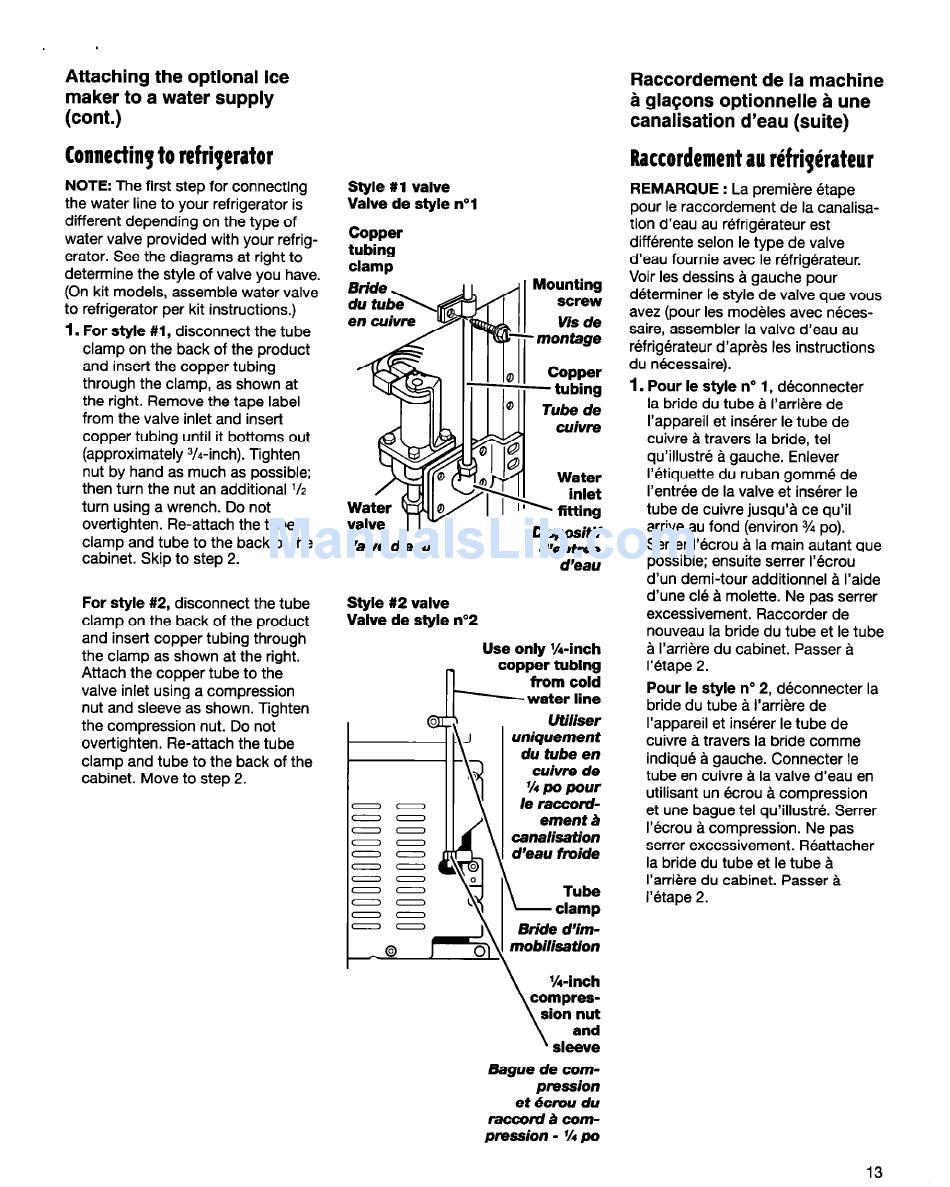

Style #l valve
Valve de style no1
Copper
tubing
clamp
Valve d'eau
d'entr&e
d'eau
Style #2 valve
Valve de style no2
Use only %-inch
Utdisef
00
le racco&
CO
00
00
canalisation
00
d'eau froide
00
-0
00
00
00
00
Bride d'im-
Bague de com-
pression
et BCIW du
raccod
B com-
pnession
-
l/4 po
Raccordement de la machine
i9 glagons optionnelle a une
canalisation d'eau (suite)
Raccordement au refriglrateur
REMARQUE
: La premiere etape
pour le raccordement
de la canalisa-
tion d'eau au refrigerateur
est
differente selon le type de valve
d'eau fournie avec le refrigerateur.
Voir les dessins a gauche pour
determiner le style de valve que vous
avez (pour les mod&es avec neces-
saire, assembler la valve d'eau au
refrigerateur d'apres les instructions
du necessaire).
1.
Pour le style no 1, deconnecter
la bride du tube a I'arriere de
I'appareil et inserer le tube de
cuivre a travers la bride, tel
qu'illustre
a gauche. Enlever
I'etiquette du ruban gomme de
I'entree de la valve et inserer le
tube de cuivre jusqu'a ce qu'il
arrive au fond (environ %I PO).
Serrer I'bcrou g la main autant que
possible; ensuite serrer I'bcrou
d'un demi-tour additionnel
a I'aide
d'une cl6 a molette. Ne pas serrer
excessivement.
Raccorder de
nouveau la bride du tube et le tube
a I'arriere du cabinet. Passer a
I'etape 2.
Pour le style no 2, deconnecter
la
bride du tube a I'arriere de
I'appareil et inserer le tube de
cuivre a travers la bride comme
indique a gauche. Connecter
le
tube en cuivre a la valve d'eau en
utilisant un 6crou a compression
et une bague tel qu'illustre.
Serrer
l'ecrou a compression.
Ne pas
serrer excessivement.
Reattacher
la bride du tube et le tube a
I'arriere du cabinet. Passer a
l'etape 2.
13
