Exibel KK-9802 Instruction Manual

World Radio
Art. no 38-3731 Model KK-9802
Please read the entire instruction manual before using the
product and save it for future reference. We reserve the right
for any errors in text or images and any necessary changes
made to technical data. If you have any questions regarding
technical problems please contact Customer Services.

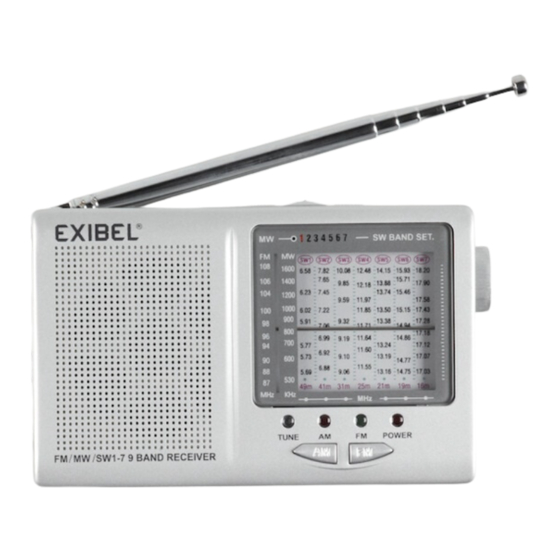

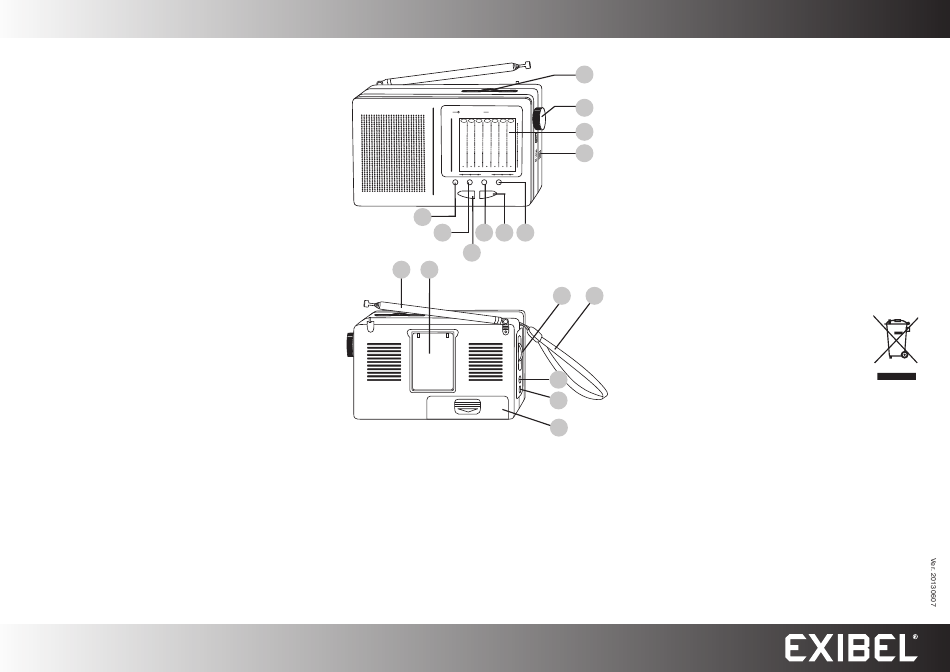

Buttons and functions
1. Band selector – AM (Medium wave and 7 short
wave bands)
2. TUNING – Frequency control knob
3. Frequency display window
4. DX/LOCAL – Switches sensitivity settings
5. POWER – Shines when the radio is turned on
6. [FM] – FM switch
7. FM – Shines during FM reception
8. [AM] – AM switch
9. AM – Shines during AM reception
10. TUNE – Shines with different levels of brightness
depending on strength of the radio signal.
11. Telescopic aerial
12. Table stand
13. Wrist strap
14. On/off switch and volume control
15. Headphone socket (headphones not included)
16. Mains adaptor socket
17. Battery compartment
GREAT BRITAIN - CUSTOMER SERVICE contact number: 08545 300 9799
English
MW 1 2 3 4 5 6 7 SW BAND SET.
FM MW
SW1 SW2 SW3 SW4 SW5 SW6 SW7
108
1600
6.58 7.82 10.08 12.48 14.15 15.93 18.20
7.65 15.71
106 1400
9.85 13.88 17.90
12.18
104 6.23 7.45 13.74 15.46
1200
9.59 11.97 17.58
100 1000 6.02 7.22 11.85 13.50 15.15 17.43
900
98 5.91 9.32 13.38 17.28
7.06 11.71 14.94
800 17.18
96
6.99 9.19 11.64 14.86
700
94 5.77 13.24 17.12
11.60
6.92
5.73 9.10 13.19 17.07
90 600
14.77
11.55
6.88
88 5.69 9.06 13.16 14.75 17.03
530
87
49m 41m 31m 25m 21m 19m 16m
MHz KHz
MHz
MW 1 2 3 4 5 6 7 SW BAND SET.
TUNE AM FM POWER
FM MW
108 SW1 SW2 AM SW3 SW4 FM SW5 SW6 SW7
1600
6.58 7.82 10.08 12.48 14.15 15.93 18.20
106 1400 7.65 15.71
9.85 13.88 17.90
12.18
104 6.23 7.45 13.74 15.46
1200
9.59 11.97 17.58
10 100 1000 6.02 7.22 11.85 13.50 15.15 17.43
900 5.91 9.32 17.28
98 13.38
7.06 11.71 14.94
800
96 17.18
6.99 11.64 14.86
9.19
700
94 5.77 13.24 17.12
11.60
6.92
9 7 6
600 5.73 9.10 13.19 17.07
90 14.77
11.55
6.88
88 5.69 9.06 13.16 14.75 17.03
87 530
49m 41m 31m 25m 21m 19m 16m
MHz KHz
MHz
8
TUNE AM FM POWER
AM FM
11 12
OPEN
OPEN
Use
1. Insert two new 1.5 V AA batteries into the battery
compartment (17) according to the markings on the back
of the radio. OR Connect a mains adaptor to the socket
(16) (batteries and adaptor are not included).
2. Roll the on/off switch upwards to turn the radio on and
adjust the volume using the same control. POWER – The
light shines when the radio is turned on.
3. FM reception: Press the [FM] switch (6). The FM indicator
)
(7 will come on.
4. AM reception: Press the [AM] switch (8). The AM indicator
)
(9 will come on. Select the desired band from medium
wave or short wave 1-7 using the band selector (1).
e-mail: customerservice@clasohlson.co.uk
5. Tune into the desired frequency using the tuning knob (2).
1
The chosen frequency is displayed in the window (3).
6. When the desired frequency has been set and the radio
signal is strong enough, the reception indicator (10) will
2
come on.
7. For FM or SW reception it is best to extend the telescopic
3
aerial (11) and angle it for the best reception.
8. MW reception occurs via the internal ferrite aerial, so
4
reception is altered by turning the entire radio.
9. There is a switch for Local/DX sensitivity which improves
SW and FM reception under certain conditions. This switch
should normally be set to DX. To receive local stations with
strong signals or in case of strong electrical interference,
you can switch to Local.
5
10. Plug your headphones into the headphone socket
(15). The built-in loudspeaker will automatically be
disconnected.
11. To turn the radio off just roll the on/off switch (14) down
until the POWER light goes out.
14 13
Disposal
Follow local ordinances when disposing of this
product. If you are unsure of how to dispose of
this product, please contact your municipality.
15
Specifications
16
Frequency response MW
17
Speaker
Input power
Output power
Size
Weight
internet: www.clasohlson.com/uk
525–1605 kHz
FM 87–108.5 MHz
SW1 5.95–6–20 MHz
SW2 7.10–7–30 MHz
SW3 9.50–9.90 MHz
SW4 11.65–12.05 MHz
SW5 13.60–13.80 MHz
SW6 15.10–15.60 MHz
SW7 17.50–17.90 MHz
Ø 57 mm/4 Ω/0.25 W
1.5 V AA/R6 batteries (2×)
≥100 mW
110 × 70 × 26 mm
150 g
