CYBEX Plate Loaded 16120 Smith Press Owner's Manual page 11

WARNING: Use extreme caution when removing Smith Press Assembly from pallet.
3. Move to desired location and unpack.
Keep all shipping packages near area of installation.
•

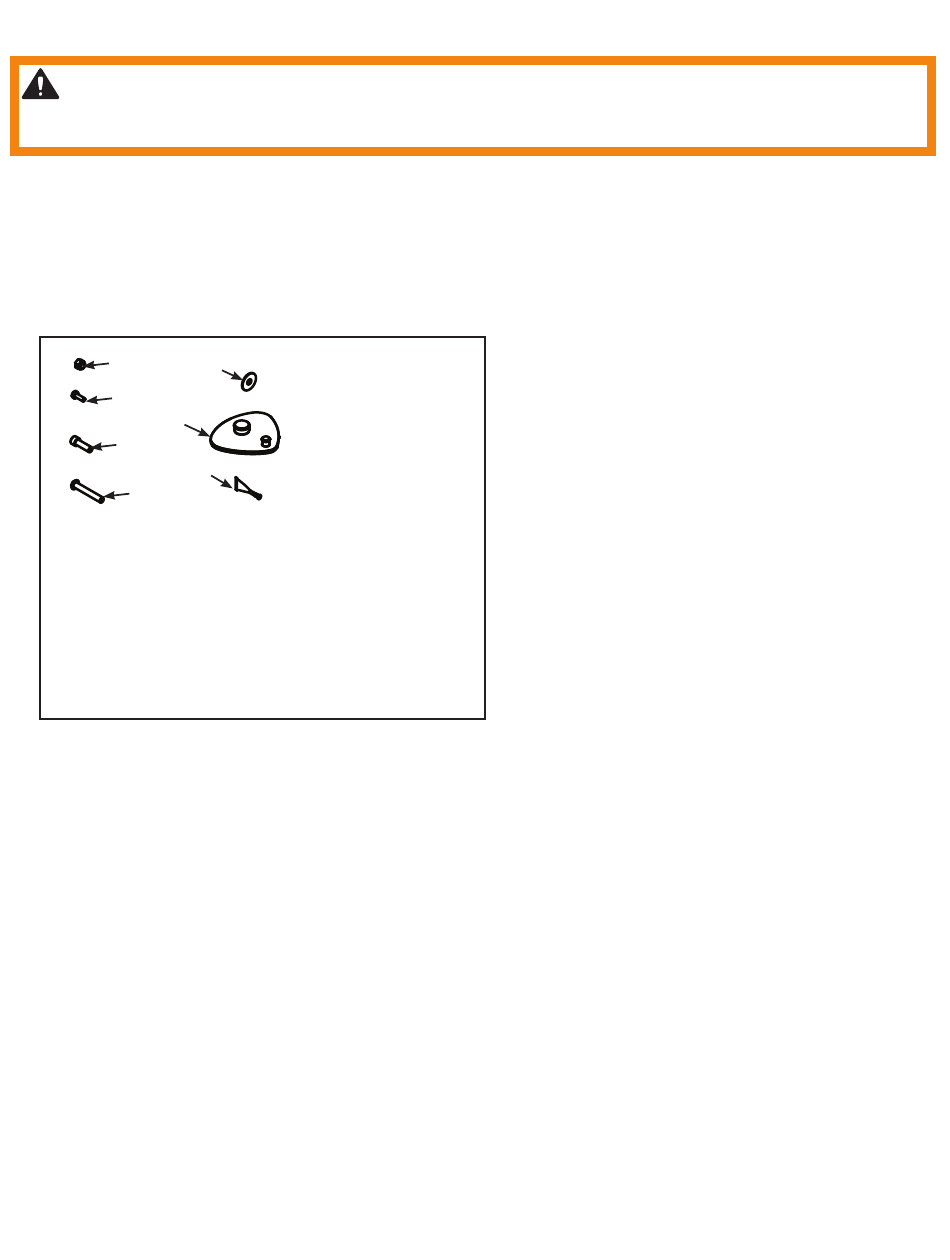

Remove hardware pack and verify contents.
•
A
B
F
C
D
A. Locknut .375-16 (8), HN704902
B. HHCS .250-20 x 2.00 (2), HC621215
C. SHCS .375-16 X 1.25 (8), JC702821
D. BHSCS .375-16 X2.50 (4),HC700430
E. Split, Lockwasher .375 (8), HS348300
F. Foot Pad (6), 16010-311
G. Loctite 242 (1) YA000008
Carefully remove foam and shrink wrap securing frame mounts, set frame mounts aside.
•
Carefully remove foam and shrink wrap securing weight bar to frame, set weight bar aside.
•
Using a 7/32" Allen wrench and a 9/16" wrench remove the four Button Head Socket Cap Screws
•
(BHSCS) from shipping bracket securing frame halves together. Do not discard BHSCS or
locknuts.
Using a 9/16" wrench remove the four lag bolts securing frame to pallet.
•
Cybex Plate Loaded 16120 Smith Press Owner's Manual
Failure to do so could result in injury.
E
G
11
