Creamsource SKY User Manual

SKY
User Guide

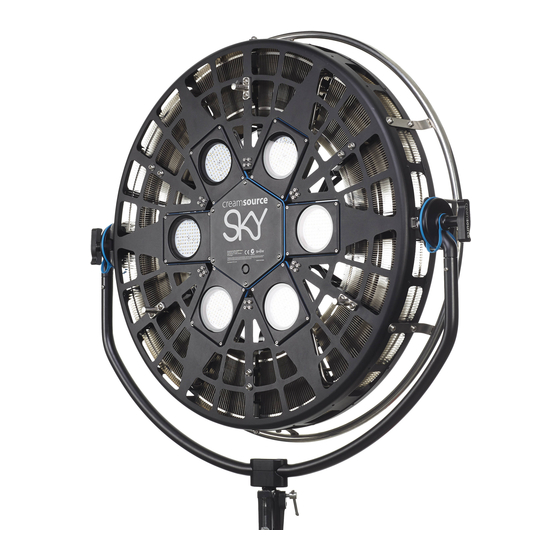

The Creamsource Sky is a 1200W, full colour (RGBWA) LED softlight fixture with continuous colour adjustment from 2200K up to 15000K,
including full control of Green/Magenta axis. Wireless DMX is built in, and IP65
protection allows for use outdoors.
Please take the time to read this manual before using your Creamsource Sky. This
will give you a good understanding of the full functionality and capabilities.
PART NUMBERS
The table below lists individual part numbers for the Creamsource Sky system
Part Number Description
CSS-1200-C Creamsource Sky Luminaire, 1200W with full colour mixing
CSS-PSU-1200 Power Supply for Creamsource Sky, 1200W
CSS-PWR-15M 15M Power Cable to go between PSU and Fixture
WARNINGS
High power LED light is emitted from this product. Do not stare directly into the beam, permanent eye damage could result
Case can get hot during normal operation. Please take care when handling unit. Maximum Surface Temperature Tc = 70 deg C
Power Supply has dangerous voltages inside. Do not open.
Falling hazard - make sure unit is properly secured and all three rigging chains are attached
If the external flexible cable of this luminaire is damaged, it must be replaced by an original cable from the manufacturer or
service agent.
The XLR DMX connectors ARE NOT WATERPROOF! If used in wet environments, make sure the blue connector cover is closed.
COMPLIANCE NOTES
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
Please make sure discarded electrical waste is properly recycled to reduce environmental impact. Please use a separate collection facility or
contact the supplier from which this fixture was purchased
N24018
Outsight Pty Ltd
Unit 6, 888 Bourke St, Zetland, Sydney NSW 2018, AUSTRALIA
+61-2-9669 8668
