G
lensound
Keeps Working

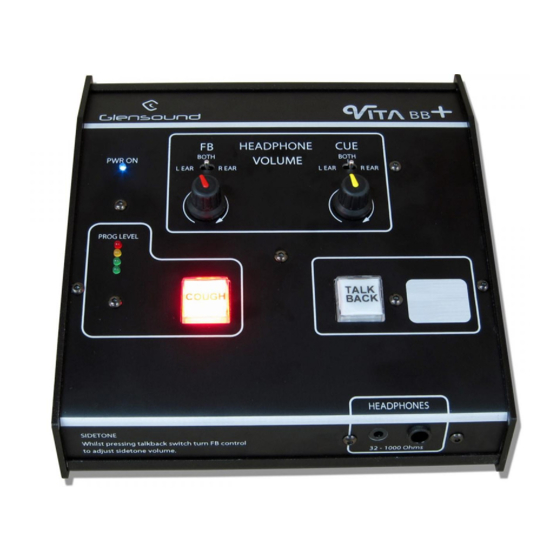

The VITA BB PLUS is a very powerful Dante® network audio interface, in a traditional desktop
style. It has a mic/line input and headphone monitoring connection for a single user, and
contains two 4 wire circuits. One of these is typically used as an on air channel, and the other
as a talkback channel.
The high quality microphone input, with the Glensound Referee compressor, makes the Vita
BB Plus suitable for on air commentary use, perfect for a small OB or in an off-tube booth .
The flexibility of the talk button configurations means that the Vita BB Plus can also be used
as a talkback unit as part of a Dante
G
lensound
The Vita BB Plus can connect to any Dante® or AES67 network, or to other audio equipment
via Glensound's own Dante® interface units.
Keeps Working
BB
BIG Buttons!
Monitoring
With Left/Both/Right
Switching
www.glensound.com
Network Audio Commentary Interface
Commentary Unit With Talkback And
Dante Network Audio Interface
Network Audio Commentary Interface
Two Assignable
4 Wire Circuits
Network
Remote Control &
Configuration
/ AES67 network.
®
VITA BB PLUS
Highlights
Dante® & AES67
Compatible
Power Via
PoE
Overview
Advertisement
Table of Contents
Related Manuals for Glensound VITA BB PLUS
Summary of Contents for Glensound VITA BB PLUS
- Page 1 BB Plus suitable for on air commentary use, perfect for a small OB or in an off-tube booth . The flexibility of the talk button configurations means that the Vita BB Plus can also be used as a talkback unit as part of a Dante / AES67 network.
- Page 2 Single Input The Vita BB Plus is a single user unit, with one high quality input. The input is mic/mic+48v/line switchable, on a 3 pin XLR, with a variable gain control. As the Vita BB Plus can be used for on air broadcast, Glensound’s Referee compressor limiter is used to control the audio levels and prevent any clipping.
- Page 3 PPM Meter There is a simple to use 4 segment PPM meter on the front panel of the VITA BB Plus. The meter indicates the outgoing level in dBs and provides indication of the level in 6dB steps from -12 to +6.
- Page 4 Vita and Vita Plus units which show up on the left hand side. The function of each Vita/ Vita Plus/ Vita BB Plus is replicated on Vita Controller, with each unit receiving its own visual controller module.
- Page 5 VITA PLUS Dante® Commentary VITA BB PLUS Designed For Sport News & Events Specification AUDIO Headphone Impedance Mic Input Gain Range 32 to 1000 Ohms (Auto output level to match impedance) -18dB to +12dB Maximum Headphone Output Dynamic Mic Line Up 58dB +15.8dB into 600 Ohms...
