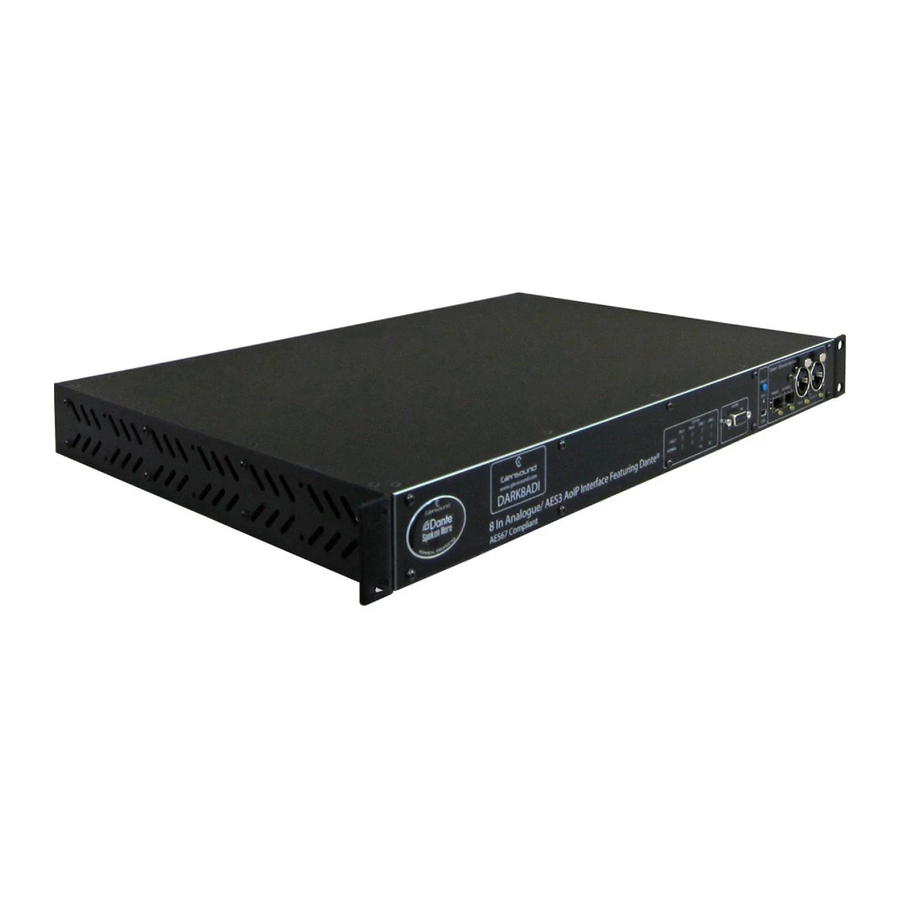

- Page 1 ® DANTE® /AES67 NETWORK AUDIO 8 x ANALOGUE INPUT & 4 x AES3 INPUT INTERFACE PRODUCT DETAILS 6 BROOKS PLACE, MAIDSTONE, KENT, ME14 1HE. ENGLAND. TEL: +44 (0) 1622 753662 Visit our Website at www.glensound.co.uk FAX: +44 (0) 1622 762330...
- Page 2 Glensound Electronics Ltd Thank you for choosing a new Glensound product. All rights reserved. Information contained in this manual is subject to change without notice, if in doubt please contact us for the latest product information. If you need any help with the product then we can be contacted at: Glensound Electronics Ltd 1 –...
-
Page 3: Product Warranty
Customer returns the goods to the Company's works or their local dealer. SAFETY WARNING The DARK8ADI contains no user serviceable parts and must not be dissasembled in any way. Page 3 of 26... - Page 4 Eight channel AoIP, AES3/Analogue Input interface This declaration of conformity is issued under the sole responsibility of the manufacturer. This equipment is manufactured by Glensound Electronics Ltd of Brooks Place Maidstone Kent ME14 1HE is marked and conforms to the...
- Page 5 RoHS DIRECTIVE EC directive 2002/95/EC restricts the use of the hazardous substances listed below in electrical and electronic equipment. This product conforms to the above directive and for this purposes, the maximum concentration values of the restricted substances by weight in homogenous materials are: Lead 0.1%...
- Page 6 WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT REGULATIONS 2006 (WEEE) Glensound Electronics Ltd is registered for business to business sales of WEEE in the UK our registration number is: WEE/JJ0074UR Page 6 of 26...
-
Page 7: Table Of Contents
DARK8ADI FRONT PANEL LAYOUT ....................... 9 DARK8ADI REAR PANEL LAYOUT ........................11 SIMPLIFIED BLOCK DIAGRAM ........................13 CONNECTING THE DARK8ADI TO A DANTE® NETWORK ..............14 Getting DANTE® Controller .......................... 14 Connecting DARK8ADIs To The Network ....................14 Audio Over IP Network ........................... 14 Running DANTE®... -
Page 8: Overview
Copper & Fibre circuits. The DARK8ADI has 4 balanced AES3 inputs and 8 balanced analogue inputs on rear panel XLR connectors. In total 16 audio circuits are sent to the Dante® network from the device. -
Page 9: Dark8Adi Front Panel Layout
Red indicates no connection, green indicates a successful connection. For example, if you have connected the DARK8ADI to two separate PSUs, only one of which works then you will have a red ‘Fault’ LED illuminate to warn you that there is no power detected on the connection that is not receiving mains power. - Page 10 They accept standard SFP modules. The status LEDs flash to show when data is being correctly communicated with the attached switch. If you require SFP modules then please email sales@glensound.co.uk for a quotation. Network Note Factory default is to have the SFP & RJ45 sockets set to work in redundant mode.
-
Page 11: Dark8Adi Rear Panel Layout
DARK8ADI REAR PANEL LAYOUT 4. Analogue inputs 1 - 8 3. AES3 inputs 1 - 4 2. Primary Mains Input 1. Secondary Mains Input 1. Analogue inputs 1 – 8 These 8 analogue audio inputs are electronically balanced and accept line level (0dB) signals. - Page 12 The standard IEC mains plug accepts external AC voltages of 100 - 240 VAC +/- 10%. There is a non-accessable internal fuse for this input. The DARK8ADI is designed to operate with either primary or secondary mains sources or both for power redundancy.
-
Page 13: Simplified Block Diagram
SIMPLIFIED BLOCK DIAGRAM Page 13 of 26... -
Page 14: Connecting The Dark8Adi To A Dante® Network
CONNECTING THE DARK8ADI TO A DANTE® NETWORK The DARK8ADI is a network audio device utilising the reliable and versatile DANTE® audio over IP protocol. DANTE® is a proprietary system (although very widely used) the originators of which are Audinate. The information below is only meant as a very basic guide. Full details of the power of DANTE®... -
Page 15: Running Dante® Controller
NOTE: The Dark8ADI only transmits into the Dante® network and therefore only appears on the transmitters section of Dante® controller. The DARK8ADI will have been named at the factory during test to allow them to be identified by the DANTE® controller. -
Page 16: Updating Firmware
UPDATING FIRMWARE The DARK8ADI is a complex digital audio system comprising of a DSP and several Micro Controllers. All these items run software and may need to be occasionally updated. Equipment needed A windows based PC USB Type A to Mini B cable ... - Page 17 USB device. 5. Loading the firmware Now open DfuSe Demo. If the DARK8ADI successfully entered DFU mode then it will appear as ‘STM Device in DFU Mode’ under the ‘Available DFU Devices tab’. Figure 3 Device successfully recognised...
- Page 18 Figure 4 Choose .dfu file Click choose and then select the .dfu file that you downloaded from the Glensound website. This will be located in your downloads folder by default. If the file loads successfully then it will read along the bottom ‘File correctly loaded’.
- Page 19 6. Upgrading the DARK8ADI firmware The firmware is now ready to be put on to the DARK8ADI. Tick the ‘Verify after download’ box first and then click ‘Upgrade’. Figure 6 Upgrade Click yes to proceed. Figure 7 Start upgrade Figure 5 .dfu successfully loaded...
- Page 20 The progress bar along the bottom will show the status of the operation.If the operation was successful, DfuSe Demo will report that “Targery 00: Verify Successful!”. Figure 8 Upgrade status You may also see that it will report how much data was successfully transferred. Figure 9 Successful upgrade! Page 20 of 26...
- Page 21 7. Final steps Now click “Leave DFU mode” to finish the procedure. Figure 10 Final step You may now disconnect the USB cable and continue to use the DARK8ADI with the freshly updated firmware! Page 21 of 26...
-
Page 22: Updating The Brooklyn Module
DANTE®/ AES67 network audio streams. There is one Brooklyn module in each DARK8ADI. We supply special code (a .dnt file) that sets up/ initiates the Brooklyn module and makes it work in particular way and we also run extra code on its internal microprocessor to make it work correctly with the DARK8ADI. -
Page 23: Aes67 Mode
Audinate. 1. Turning On AES67 Mode If you want to use your DARK8ADI on an AES67 network and it has not been set to AES67 mode then this can be set in DANTE® controller by double clicking the DARK8ADI to open the Device View window where you will find an AES67 tab to enable AES67 support. - Page 24 2. Sending AES67 Audio To transmit AES67 audio to the network a multicast flow must first be setup. This is done by selecting the ‘Create New Multicast Flow’ Icon in the Device View. Tick the AES67 Flow check box, then select up to 8 channels to be included in the flow then click ‘Create’...
- Page 25 3. AES67 Restrictions AES67 flows can only be generated with the following constraints: Multicast Only Non-redundant Destination address in range 239.nnn.0.0 to 239.nnn.255.255 (239.nnn/16), port 5004 48kHz sampling rate 24 bit linear (L24) encoding 1 msec packet time ...
-
Page 26: Wiring Information
WIRING INFORMATION STANDARD XLR AUDIO PINOUTS: 1: Ground/ Earth XLR SOCKET (FEMALE) 2: INPHASE/ POSITIVE/ MIC + 3: MATE/ NEGATIVE/ MIC - ALARMS D9 SOCKET PIN OUT ALARMS PSU1 Failure NC Pin 1 Closed Contact when PSU1 fails PSU1 Failure NO Pin 6 Open Contact when PSU1 fails PSU2 Failure NC...
