4-Channel USB Data Acquisition Starter Kit
User's Manual
DI-1100
Manual Revision C
Advertisement
Table of Contents
Related Manuals for Dataq DI-1100
Summary of Contents for Dataq DI-1100
- Page 1 The distribution of this material outside the company may occur only as authorized by the company in writing. DATAQ Instruments' hardware and software products are not designed to be used in the diagnosis and treatment of humans, nor are they to be used as critical components in any life-support systems whose failure to perform can rea- sonably be expected to cause significant injury to humans.
-
Page 3: Warranty And Service Policy
DATAQ Instruments, Inc. warrants that this hardware will be free from defects in materials and workmanship under normal use and service for a period of 90 days from the date of shipment. DATAQ Instruments' obligations under this warranty shall not arise until the defective material is shipped freight prepaid to DATAQ Instruments. The only responsibility of DATAQ Instruments under this warranty is to repair or replace, at its discretion and on a free of charge basis, the defective material. -
Page 5: Table Of Contents
Connecting the Instrument to Your Computer .................. 6 4. Controls, Indicators, and Connections ..................... 7 Mini-B USB Connection ........................7 Connect Input Signals ........................7 DI-1100 Signal Connections ....................... 7 Connect Signal Leads ........................8 Analog Inputs ..........................8 WinDaq Remote Controls (Digital Inputs) ................. 9 WinDaq Remote Events ....................... -
Page 7: Introduction

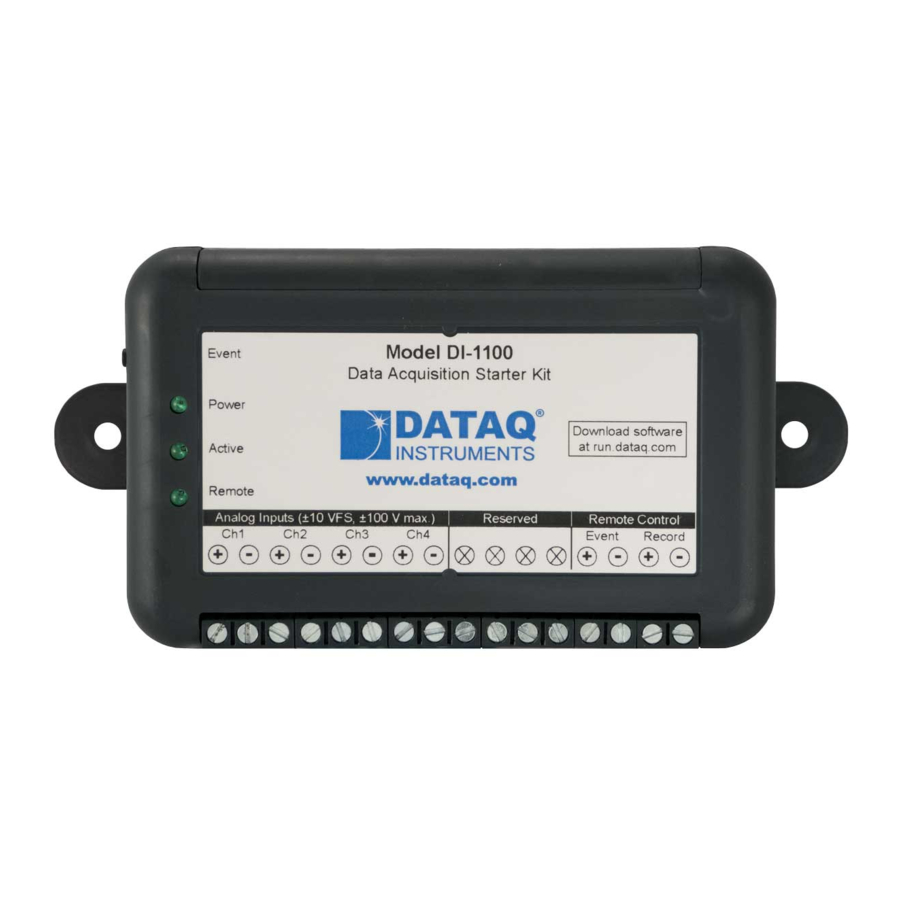

Analog Inputs The DI-1100 features four differential channel inputs located on a single sixteen-position screw terminal block for easy connection and operation (other terminals used for digital I/O or reserved). Note: The DI-1100 does not support Gain. Utilize the functionality of W software to experience all the features encased in these small, inexpensive instruments. -
Page 8: Windaq® Recording And Playback Software
It operates, displays, and records waveform signals in real time at the full sample rate of the DI-1100. Waveform Browser playback software (also known as “WWB”) offers an easy way to review and analyze acquired waveforms. -
Page 9: Specifications
DI-1100 Hardware Manual 2. Specifications Analog Inputs Number of Channels: Channel Configuration: Differential Voltage Measurement Range: ±10V Full Scale fixed Input Impedance: 1M Isolation: none Absolute accuracy: ±12.5 mV @ 25°C, excluding common mode error Absolute maximum input without damage: ±75 V peak, continuous... - Page 10 Hardened Plastic Mounting: Desktop; bulkhead Dimensions: 2.625D × 5.5W × 1.53H in. (6.67D × 13.97W × 3.89H cm.) Weight: 3.6 oz. Software Support software: OS support: Check Online at https://www.dataq.com/products/ windaq/windows-compatibility/ Programming: DATAQ .NET Class, Instrument protocol, ActiveX Control Specifications...
-
Page 11: Installation
A DATAQ Instruments screwdriver for signal lead connections. If an item is missing or damaged, call DATAQ Instruments at 330-668-1444. We will guide you through the appropri- ate steps for replacing missing or damaged items. Save the original packing material in the unlikely event that your unit must, for any reason, be sent back to DATAQ Instruments. -
Page 12: Connecting The Instrument To Your Computer
Connecting the Instrument to Your Computer DI-1100 instruments can be connected to your computer’s USB port using the provided USB cable. No external power is required. Connect one end of the communications cable to the instrument port and the other to your PC’s port. -
Page 13: Controls, Indicators, And Connections
Channels 1-4 (no connection) Channels Please note: The SD card slot is not used in the DI-1100. Allowing foreign materials to enter the device through the SD card slot may result in damage to the instrument. Mini-B USB Connection Use the supplied USB cable to connect and power the instrument through your computer’s USB port. -
Page 14: Connect Signal Leads
DI-1100 Hardware Manual Connect Signal Leads Connect signal leads to the DI-1100: Insert the stripped end of a signal lead into the desired terminal directly under the screw. Tighten the pressure flap by rotating the screw clockwise with a small screwdriver. Make sure that the pressure flap tightens only against the signal wire and not the wire insulation. -
Page 15: Windaq Remote Controls (Digital Inputs)
Remote Control Event Record Signal + Signal - Remote Controls (Digital Inputs) The DI-1100 contains 2 digital inputs designated for W Remote Events (inserts an Event Marker) and Remote Storage (Record data). +3.3V +1.5V Digital In Controls, Indicators, and Connections... -
Page 16: Windaq Remote Events
TTL Threshold Remote Events To use a switch closure or TTL signal to record W Event Markers, connect signal leads to the appropriate Remote Control Event terminals on the DI-1100 as shown below. Model DI-1100 Event Data Acquisition Starter Kit... - Page 17 DI-1100 Hardware Manual Event markers may also be placed in your data file manually by pressing the push button on the DI-1100 Instrument. You must enable Remote Events in W to use the button (use the menu command Options > Remote Events +or Options >...
-
Page 18: Windaq Remote Storage (Record)
DI-1100 Hardware Manual Remote Storage (Record) To use a switch closure or TTL signal to begin recording data remotely, connect signal leads to the appropriate Remote Control Record terminals on the DI-1100 as shown below. Model DI-1100 Event Data Acquisition Starter Kit... -
Page 19: Led Indicators
Engineering Units Settings. LED Indicators The DI-1100 provides three LEDs for instrument status and notification. Power: Green LED indicates power is applied via the USB cable. Active: Indicates the device is in use either by W Acquisition Software or a custom user-developed program. -
Page 21: Dimensional Drawing
DI-1100 Hardware Manual 5. Dimensional Drawing 1.612" 2.625" 0.750" 4.250" 4.750" 5.500" Dimensional Drawing... - Page 24 DATAQ Instruments, Inc. 241 Springside Drive Akron, Ohio 44333 Telephone: 330-668-1444 Fax: 330-666-5434 E-mail: support@dataq.com Direct Product Links (click on text to jump to page) Data Acquisition | Data Logger...
