Copyright © 2021 by DATAQ Instruments, Inc. The Information contained herein is the exclusive property of
DATAQ Instruments, Inc., except as otherwise indicated and shall not be reproduced, transmitted, transcribed, stored
in a retrieval system, or translated into any human or computer language, in any form or by any means, electronic,
mechanical, magnetic, optical, chemical, manual, or otherwise without expressed written authorization from the com-
pany. The distribution of this material outside the company may occur only as authorized by the company in writing.
DATAQ Instruments' hardware and software products are not designed to be used in the diagnosis and treatment of
humans, nor are they to be used as critical components in any life-support systems whose failure to perform can rea-
sonably be expected to cause significant injury to humans.
DATAQ, the DATAQ logo, and W
T h e w a y P C - b a s e d i n s t r u m e n t a t i o n s h o u l d b e
with 8 High Voltage Isolated Channels, Programmable Gain,
Expandability with ChannelStretch™, and Stand-alone Capability
D
are registered trademarks of DATAQ Instruments, Inc. All rights reserved.
IN
AQ
DATAQ Instruments, Inc.
241 Springside Drive
Akron, Ohio 44333 U.S.A.
Telephone: 330-668-1444
Fax: 330-666-5434
Designed and manufactured in the
United States of America
High Speed Industrial Data Acquisition System
User's Manual
DI-4730
Manual Revision B
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dataq DI-4730
Summary of Contents for Dataq DI-4730
- Page 1 The distribution of this material outside the company may occur only as authorized by the company in writing. DATAQ Instruments' hardware and software products are not designed to be used in the diagnosis and treatment of humans, nor are they to be used as critical components in any life-support systems whose failure to perform can rea- sonably be expected to cause significant injury to humans.
-
Page 3: Warranty And Service Policy
DATAQ Instruments, Inc. warrants that this hardware will be free from defects in materials and workmanship under normal use and service for a period of 1 year from the date of shipment. DATAQ Instruments' obligations under this warranty shall not arise until the defective material is shipped freight prepaid to DATAQ Instruments. The only responsibility of DATAQ Instruments under this warranty is to repair or replace, at its discretion and on a free of charge basis, the defective material. -
Page 5: Table Of Contents
DI-4730 Series Hardware Manual Table of Contents Warranty and Service Policy ........................ iii 1. Introduction ............................1 Features .............................. 1 Analog Inputs ............................ 1 Digital Inputs ............................. 2 Software ............................. 2 WINDAQ® Recording and Playback Software ................. 2 Help ............................. 2 2. - Page 6 DI-4730 Series Hardware Manual Channel Selection ........................28 5. Unlock WinDaq and Stand-alone Data Logging ................33 6. Dimensional Drawing ......................... 35 Table of Contents...
-
Page 7: Introduction
USB thumb drive. Analog Inputs The DI-4730 features eight differential channel banana plug inputs located on the front panel for easy connection and operation. Gain measurement ranges of ±10mV, ±100mV, ±1V, ±10V, ±100V and ±1000V are programmable on a per channel basis. -
Page 8: Digital Inputs
Digital Inputs The DI-4730 contains seven digital inputs that may be used as a general-purpose digital input or for a specific func- tion as designated on the device. Digital port D0 may be used for WinDaq Events; Digital port D1 may be used for WinDaq remote Start/Stop;... -
Page 9: Specifications
DI-4730 Hardware Manual 2. Specifications Analog Inputs Number of Channels: Channel Configuration: Differential Measurement range per channel: Programmable ±10mV, ±100mV, ±1V, ±10V, ±100V, ±1000V Isolation: ±1000V input-to-output and channel-to-channel Max normal mode voltage (V 800VDC or peak AC Max common mode voltage (V... - Page 10 DI-4730 Hardware Manual Count/Rate/Digital Inputs Internal pull-up value: 4.7 k Input high voltage threshold: 2.4 V Input low voltage threshold: 0.8 V Terminal count: 65,535 Maximum rate frequency: 50 KHz with one enabled channel 20 KHz with 2-4 enabled channels...
- Page 11 Physical Characteristics Enclosure: Aluminum base with steel wrap-around Mounting: Desktop; Bracketed Dimensions: 7.29"W × 9"L × 1.52"H (18.5D × 22.86W × 3.86H cm.) Weight: approx 3 lbs Software Support software: OS support: Check online at http://www.dataq.com/products/windaq/ windows-compatability/ Programming: Instrument Protocol Specifications...
-
Page 13: Installation
If an item is missing or damaged, call DATAQ Instruments at 330-668-1444. We will guide you through the appropri- ate steps for replacing missing or damaged items. Save the original packing material in the unlikely event that your unit must, for any reason, be sent back to DATAQ Instruments. -
Page 14: Connect The Instrument To Your Computer
All DI-4730 instruments are shipped DHCP-enabled. We recommend you setup a DHCP reservation on your network for your data acquisition applications. Find the MAC address of your DI-4730. The device MAC address is printed on the bottom label of the device: Login to your Router and ensure the DHCP server is enabled. - Page 15 DI-4730 Hardware Manual If your device is not discovered in WinDaq Dashboard, connect it to your computer via the USB cable and configure the Ethernet settings to allow for DHCP. If the device is available in WinDaq Dashboard but you cannot run WinDaq Acquisition software, you may have the application blocked in Windows Firewall.
-
Page 17: Controls, Indicators, And Connections

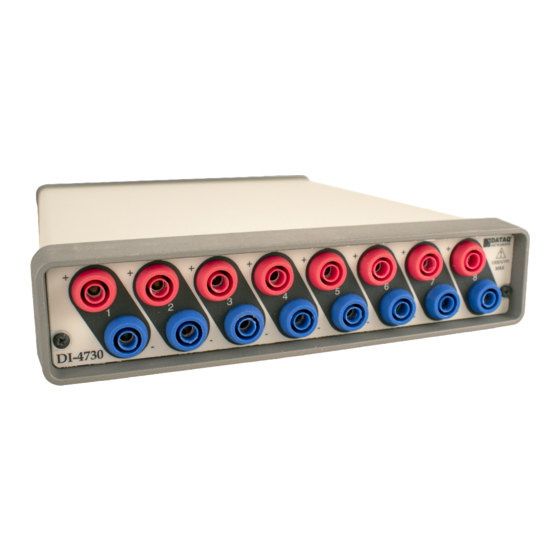

Connections Front Panel The front panel of the DI-4730 contains 16 banana jacks for safe connection of analog input signals. Analog Inputs All analog input signal connections are made to the banana plugs. Each terminal is clearly labeled to correspond with the physical channel. -
Page 18: Low-Pass Filter
Filter response is optimized when sampling frequency is set to ten times the highest frequency of interest. The DI-4730 calculates its own Last Point, Maximum, Minimum, and Filter data making it available at the program- ming level. Acquisition methods “RMS” and “Frequency” are permanently disabled for the DI-4730, as are Input Types “Nonlinear”... -
Page 19: Resolution As A Function Of Sample Rate
DI-4730 Hardware Manual Resolution as a Function of Sample Rate The resolution of the DI-44730 is a function of sample rate. The lower the sample rate the higher the resolution. ADC resolution (R) is a function of selected sample rate per channel (F), and the number of enabled analog channels (C):... -
Page 20: Rear Panel
DI-4730 Hardware Manual Rear Panel The rear panel of the DI-4730 contains power, communications, and digital inputs. Power Digital Inputs (0 - 25V Max) Status Button USB Drive Ethernet Excitation Event Record Rate Count “Digital Inputs” Refer to the following for Digital Input pinout: D#: Digital port (0-6). -
Page 21: Usb Drive
DI-4730 Hardware Manual Acquiring Data WinDaq Acquisition Software is running and the device is acquiring data to your PC via the Ethernet interface. to PC via Ethernet Interface Blinking Blue/ Yellow Recording Data The device is acquiring data and recording to your USB thumb drive. -
Page 22: Control "Button" Operations
Switching between LibUSB and CDC Modes The native communication mode of DI-4730 instruments is LibUSB but it can be switched to the USB CDC (Communication Device Class). CDC mode allows the USB port of DI-4730 devices to appear like a traditional RS- 232 port, which is common across most operating systems and development languages. -
Page 23: Apply Ethernet And Stand-Alone Configuration To Device
Power must be applied with the included power adapter or with an alternate appropriate source (9-36VDC, 15 watts max). Alternately you may power the device with a Power over Ethernet (PoE) switch. Power Switch Power the DI-4730 on/off using the power switch. Connecting Digital Input Signal Leads Connect signal leads to the DI-4730 digital inputs: Insert the stripped end of a signal lead into the desired terminal directly under the screw. -
Page 24: Digital Ports
’s real time display immedi- ately reveals the input waveform on your computer’s monitor. Digital Ports The DI-4730 contains 7 general-purpose digital input ports. Many of the ports also provide specific functionality in or a third-party program. D0 Event is for W Remote Events. -
Page 25: Windaq Remote Events (D0 Event)
Remote Events (D0 Event) To use a switch closure or TTL signal to record W Event Markers, connect signal leads to the appropriate Remote Control Event terminals on the DI-4730 as shown below. Power Digital Inputs (0 - 25V Max) -
Page 26: Windaq Remote Storage (D1 Record)
Remote Storage (D1 Record) To use a switch closure or TTL signal to begin recording data remotely, connect signal leads to the appropriate Remote Control Record terminals on the DI-4730 as shown below. Power Digital Inputs (0 - 25V Max) -
Page 27: Windaq Rate (D2 Rate)
Rate channel. Click on the Channel 10 channel box to enable/disable Rates. The Channel 10 channel box will display an “R” when enabled. Connect any TTL pulse stream (25 VDC max) to the D2 Rate channel on the DI-4730. Power... -
Page 28: Windaq Counter (D3 Count)
DI-4730 Hardware Manual available. Choose a range that comes closest to your expected full scale rate or frequency. For example, if you need to measure the output of a flow meter that can measure a maximum flow rate of 100 gallons per minute, and the output frequency at that rate is 100 Hz, you would choose the 100 Hz range setting. - Page 29 DI-4730 Hardware Manual Acquisition menu to open the Channel Selection grid. Channel 11 is the designated Count channel. Click on the Channel 11 channel box to enable/disable Counts. The Channel 11 channel box will display a “C” when enabled. The counter channel accumulates counts over time whether recording or in standby mode as soon as the Counter channel is enabled.
-
Page 30: General Purpose Digital Inputs
DI-4730 Hardware Manual Connect any TTL pulse stream (25 VDC max) to the D3 Count channel on the DI-4730. Power Digital Inputs (0 - 25V Max) Status Button USB Drive Ethernet Excitation Event Record Rate Count Signal + Signal - General Purpose Digital Inputs Enable Channel 9 for general-purpose digital input functions. -
Page 31: Windaq Dashboard
DI-4730 Hardware Manual WinDaq Dashboard The WinDaq Dashboard allows you to run WinDaq Data Acquisition software, sync the device clock with your PC, modify Ethernet settings, configure your instrument for stand-alone data logging to record data to a USB flash drive, and access the USB thumb drive via the Ethernet interface. -
Page 32: Channelstretch
USB port. ChannelStretch™ Expand the channel count of your DI-4730 with ChannelStretch. Connect up to 16 DI-4730, DI-4718B, DI-4108, and/or DI-4208 devices with a powered USB hub (multiple cascaded/connected powered USB hubs can be used) or Ethernet switch to record more than 8 channels of data to a single WinDaq file. -
Page 33: Connection
DI-4730 Hardware Manual Connection All USB devices must be on the same USB controller (or hub)* in order to synchronize data acquisition. All Ethernet devices must be on the same subnet as the PC that is recording the data (preferably the same Ethernet switch). - Page 34 DI-4730 Hardware Manual Channel Selection Devices are listed in the Channel Selection grid in alpha-numeric order of the serial numbers of the device. Devices must be connected to the USB hub before starting WinDaq. Controls, Indicators, and Connections...
- Page 35 (unlock code required for each unit to be synchronized). Go to https:// www.dataq.com/products/di-4730/ to purchase the unlock code (under Accessories) or call 330-668-1444. Once pur- chased, you will be given a Key code to enter into WinDaq Data Acquisition software.
- Page 37 DI-4730 Series Hardware Manual 6. Dimensional Drawing side view 2.450" 7.450" 9.900" front view 1.802" 7.500" Dimensional Drawing...
