- Page 1 INFORMATION CONTAINED IN THIS MANUAL IS BELIEVED TO BE ACCURATE AND RELIABLE, HOWEVER, NO RESPONSIBILITY IS ASSUMED BY RIPLEY ODM FOR ITS USE NOR FOR ANY INFRINGEMENTS OF PATENTS OR OTHER RIGHTS OF THIRD PARTIES THAT MAY RESULT FROM ITS USE. NO LICENSE IS GRANTED BY IMPLICATION OR OTHERWISE UNDER ANY PATENT RIGHTS OF RIPLEY ODM.

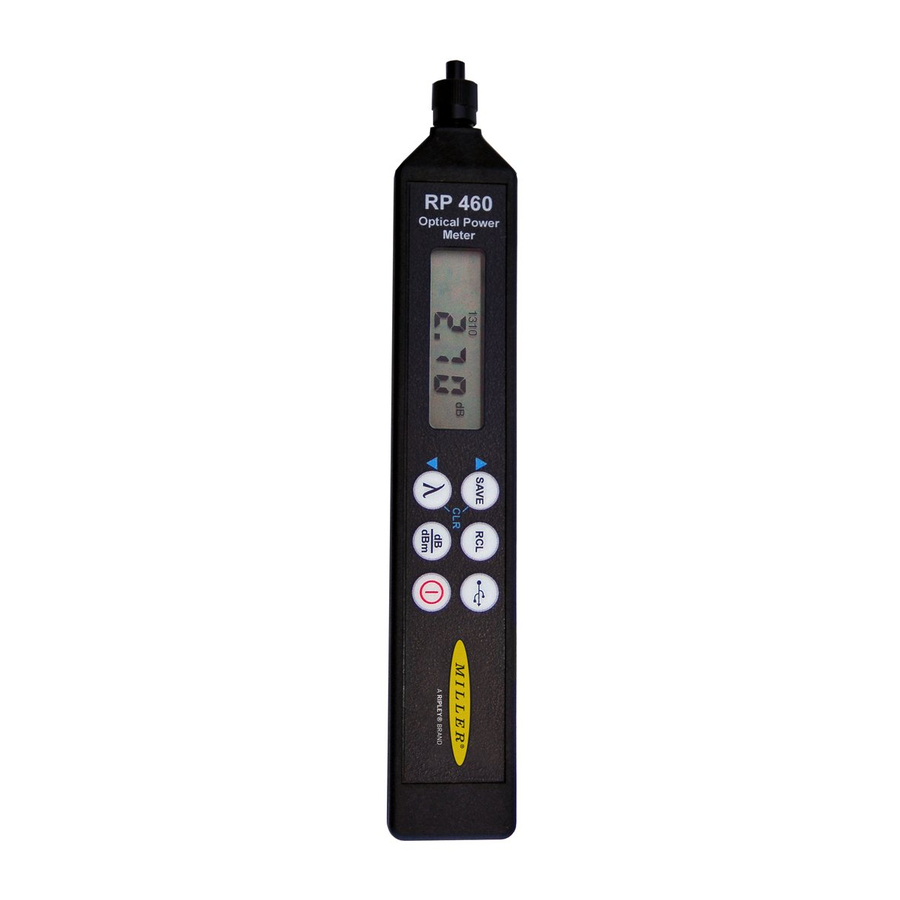

- Page 2 1. Connector Adapter - Interchangeable The RP 460 comes with a 2.5mm universal adapter. Additional adapters are available from Ripley. Refer to page 5 for more information. 2. Low Battery Indicator “BATT” will appear on the LCD screen when the CR2 3V battery needs to be recharged or replaced, depending on the battery type.
- Page 3 11. Power Button Press the button once to turn the RP 450 on. Press once again to turn the RP 460 off. The RP 460 will automatically turn off after 5 minutes if inactive. Important Safety Information WARNING! Read and understand all of the instructions and safety information in this manual before operating this tool.
- Page 4 The RP 460 is supplied with a soft carry case, 2.5 mm adapter installed on the unit, 3.0V CR2 battery, USB cable, and an instruction card. Contact Ripley immediately if any part of the unit or packaging is damaged, or otherwise unsatisfactory.
- Page 5 Specifications Optical Power Meter DETECTOR TYPE -02: InGaAs / -04: Filtered InGaAs MEASUREMENT RANGE -02: +6 to -70 dBm / -04: +23 to -45 dBm 850 nm to 1650 nm WAVELENGTH RANGE 850 / 1300 / 1310 / 1490 / 1550 / 1611 / 1625 nm SELECTABLE WAVELENGTHS RESOLUTION 0.01 dB...
- Page 6 Contact Ripley Tools for information on recalibration and repair of test equipment. Ripley makes every effort to ensure that all information in this data sheet is accurate. Ripley Tools assumes no responsibility for any errors or omissions and reserves the right to modify this document at any time without notice.
