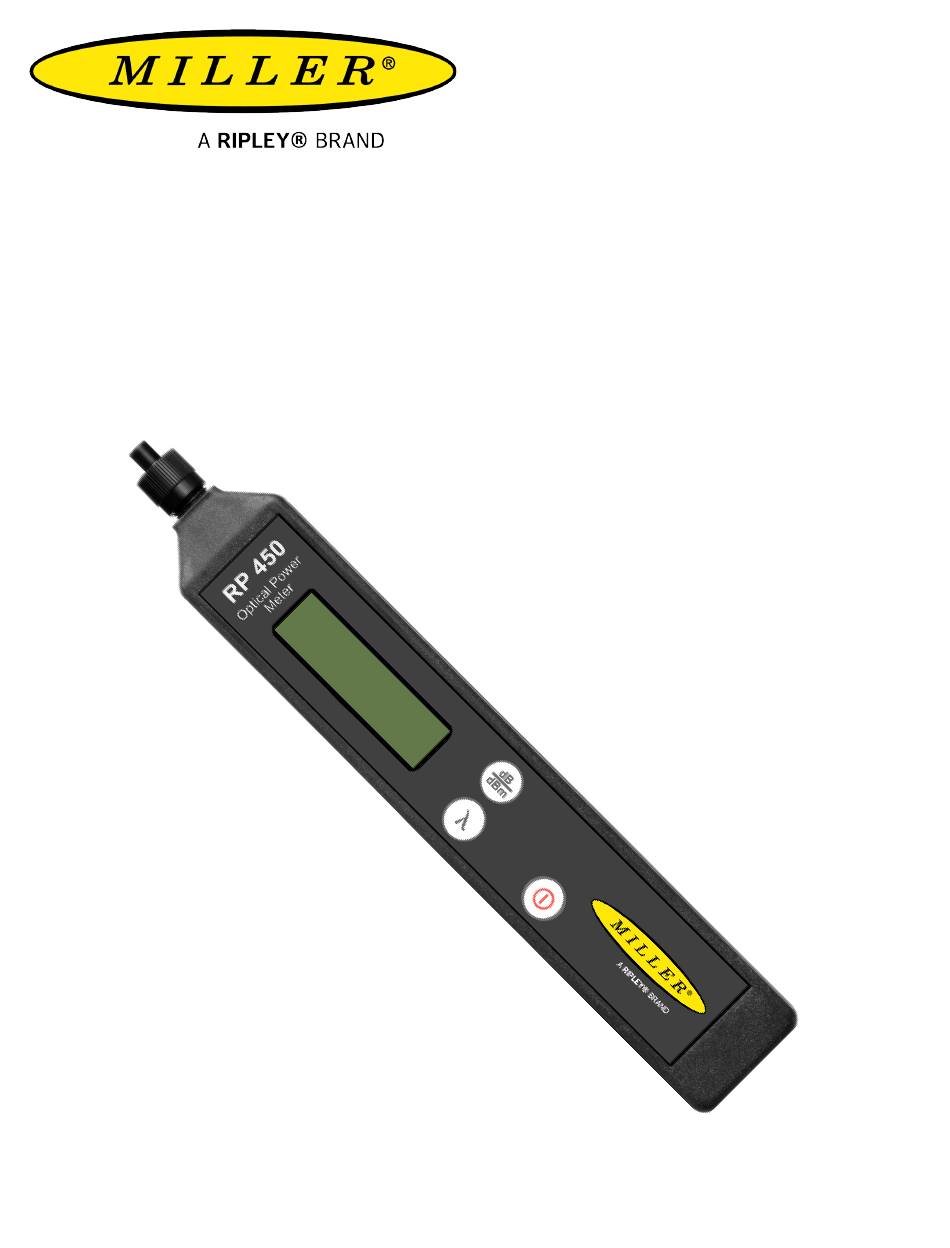

- Page 1 RP450 Optical Power Meter User Guide RP450 User Guide Page 1...
-
Page 2: Table Of Contents
Contents Introduction Device Overview Important Safety Information Setting a Reference Basic Testing Maintenance Certifications and Contact Information RP450 User Guide Page 2... -
Page 3: Introduction
Introduction The RP460 Optical Power Meter is an ultra low cost, and compact power meter used for verifying both absolute and relative power across any given fiber. This document will serve as an overview of the major features and functions of the device and will offer tips for trouble shooting common issues in optical networks. -
Page 4: Important Safety Information
Important Safety Information Read and understand all of the instructions and safety information in this manual before operating this tool. Laser/LED Hazard Avoid eye exposure to open fiber connectors and interfaces when working with fiber systems. They may be connected to a live laser source. -
Page 5: Setting A Reference
Setting Reference Caution: Invisible LED/Laser Radiation Please note that wavelengths used by optical laser sources are not visible to the human eye. Do not look directly into any fiber connector that may be live or any companion light source. Since the light is invisible to the eye, the eye’s natural blink reflex is suppressed. This can cause damage to the retina. To set a reference first connect the RP45 and companion light source as shown below. -
Page 6: Maintenance
Care must be taken to avoid objects that may damage the glass surface of the detector mount. if scratches or breaks occur on the surface, please contact Ripley for proper repair and re-calibration. RP450 User Guide... -
Page 7: Certifications And Contact Information
Certifications,Accessories, and Contact Info Calibration Certificates The RP450 comes calibrated and should be recalibrated every 2 years. Included with the RP450 is a calibration certificate, and free recalibration within 2 years of the date of purchase. To start the calibration process simply call or email technical support! Warranty The RP450 comes with a 2 year warranty for any manufacturer defects or damage due to reasonable use. - Page 8 • Consult the dealer or an experienced radio/TV technician for help. Contact Support ontact us with any questions pertaining to this or any other Ripley product. Call Us: Email Us: (603) 524-8350 tech.support@odm.ripley-tools.com Visit Us Online: www.ripley-tools.com...
