RP 460 Optical Power Meter
Quick-Start Guide

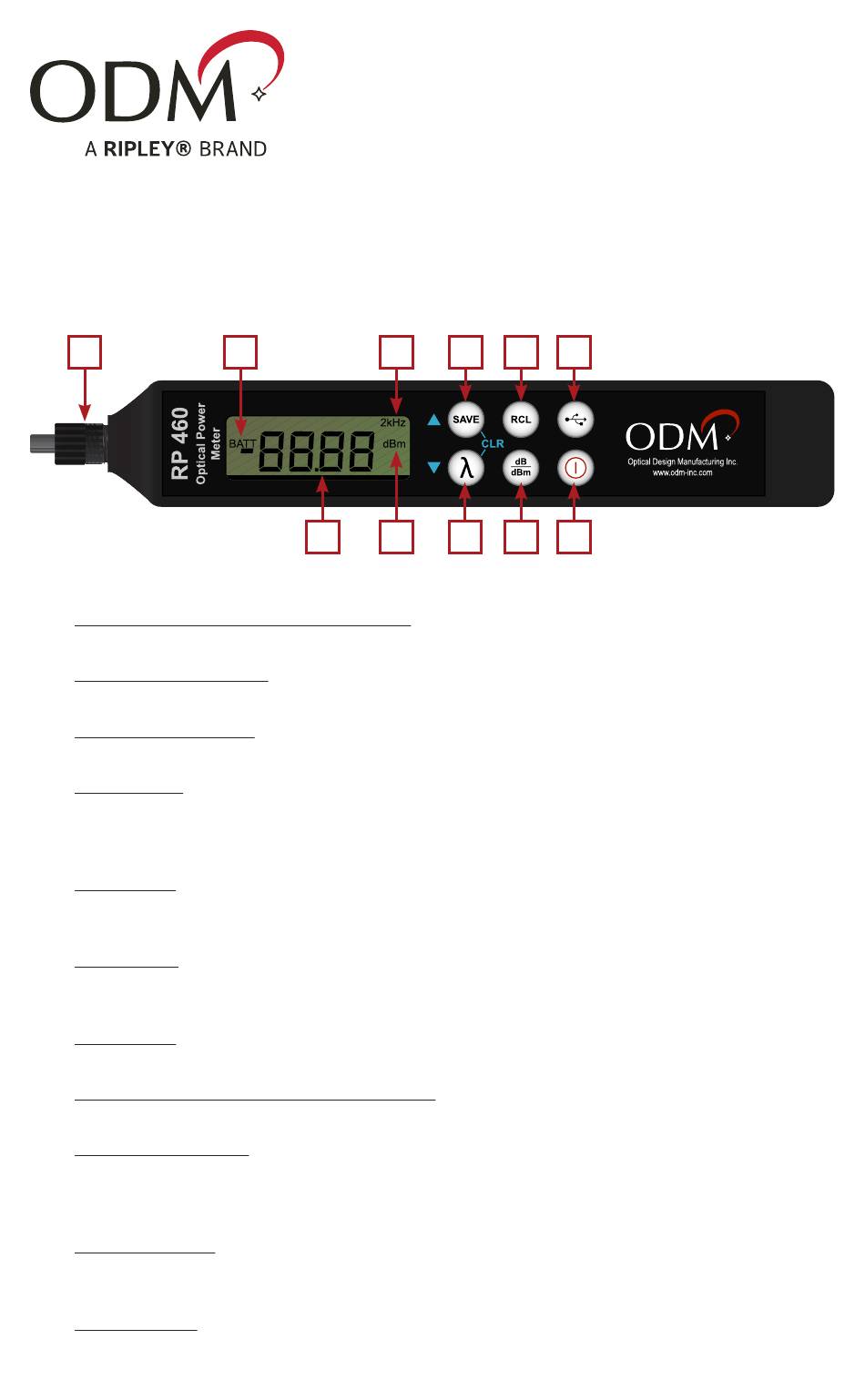

Device Overview
1
1.
Connector Adapter - Interchangeable
The RP 460 comes with a 2.5mm universal adapter. Contact ODM for additional adapter options.
2.
Low Battery Indicator
"BATT" will appear on the LCD when the CR2 3V battery needs to be replaced.
3.
2kHz Tone Indicator
The RP 460 will beep and show "2kHz" on the LCD when a 2kHz modulated signal is recognized.
4.
Save Button
Over 4000 readings may be saved on the RP 460. Each time the Save button is pressed, the current
reading will be saved to internal storage. The display flashes the indexed location where the
reading has been saved.
5.
RCL Button
Pressing this button allows the user to toggle through the saved readings on the RP 460. The
indexed location, wavelength, and reading will flash onscreen.
6.
USB Button
When the RP 460 is connected via USB to a computer running ODM's software, pressing this
button will transfer all saved data points into the software for reporting.
7.
LCD Screen
This screen displays the measured value, currently-selected wavelength, and status indicators.
8.
Measurement Mode Indicator - dB/dBm
dB is a loss measurement. dBm is an absolute power measurement.
9.
Wavelength Button
Hold this button to switch the RP 460 between the 850, 1300, 1310, 1490, 1550, 1611, and
1625nm wavelengths. Press the button once to immediately display the current wavelength. The
currently-selected wavelength will briefly appear onscreen every 8 seconds.
10.
dB/dBm Button
Press this button to toggle between dB and dBm modes. Hold this button down when in dBm
mode to set a reference on the RP 460.
11.
Power Button
Press this button once to turn the RP 450 on. Press once again to turn the RP 460 off. The RP 460 is
set to turn off after 5 minutes.
2
3
7
8
4
5
6
9
10
11
M-UM016-03 Page 1
Advertisement
Table of Contents
Related Manuals for Ripley ODM RP 460
Summary of Contents for Ripley ODM RP 460
-
Page 1: Device Overview
RP 460 Optical Power Meter Quick-Start Guide Device Overview Connector Adapter - Interchangeable The RP 460 comes with a 2.5mm universal adapter. Contact ODM for additional adapter options. Low Battery Indicator “BATT” will appear on the LCD when the CR2 3V battery needs to be replaced. 2kHz Tone Indicator The RP 460 will beep and show “2kHz”... - Page 2 Read and understand all of the instructions and safety information in this manual before operating this tool. Electric Shock hazard Contact with live circuits could result in severe injury or death. Laser Hazard Avoid eye exposure to open fiber connectors and interfaces when working with fiber systems.
- Page 3 Function Tips Audible Alerts The RP 460 will emit an audible beep each time a major function is used. To disable most beeps, start with the unit OFF. Press and hold the Save button, then turn the unit ON while holding the Save button.
-
Page 4: Specifications
Maintenance Unpacking and Inspection The RP 450 comes supplied with a soft carry case, 2.5mm adapter (on the unit), 3.0V CR2 battery, USB cable, and instruction card. Contact ODM immediately if any part of the unit or packaging is damaged or otherwise unsatisfactory. Low Battery The RP 450 will provide over 1000 operations under normal conditions. - Page 5 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Contact us with any questions pertaining to this or any other ODM product. Call 603-524-8350 Email tech.support@odm.ripley-tools.com Visit us online at www.odm-inc.com M-UM016-03 Page 5...
