Communication Ports
The RUGGEDCOM M2200 can be equipped with various types of communication
ports to enhance its abilities and performance. With five available slots, the RUGGED-
COM M2200 supports a variety of one- or two-port fiber or copper Ethernet module
of various speeds with up to nine Gigabit Ethernet (1 Gbps) ports.

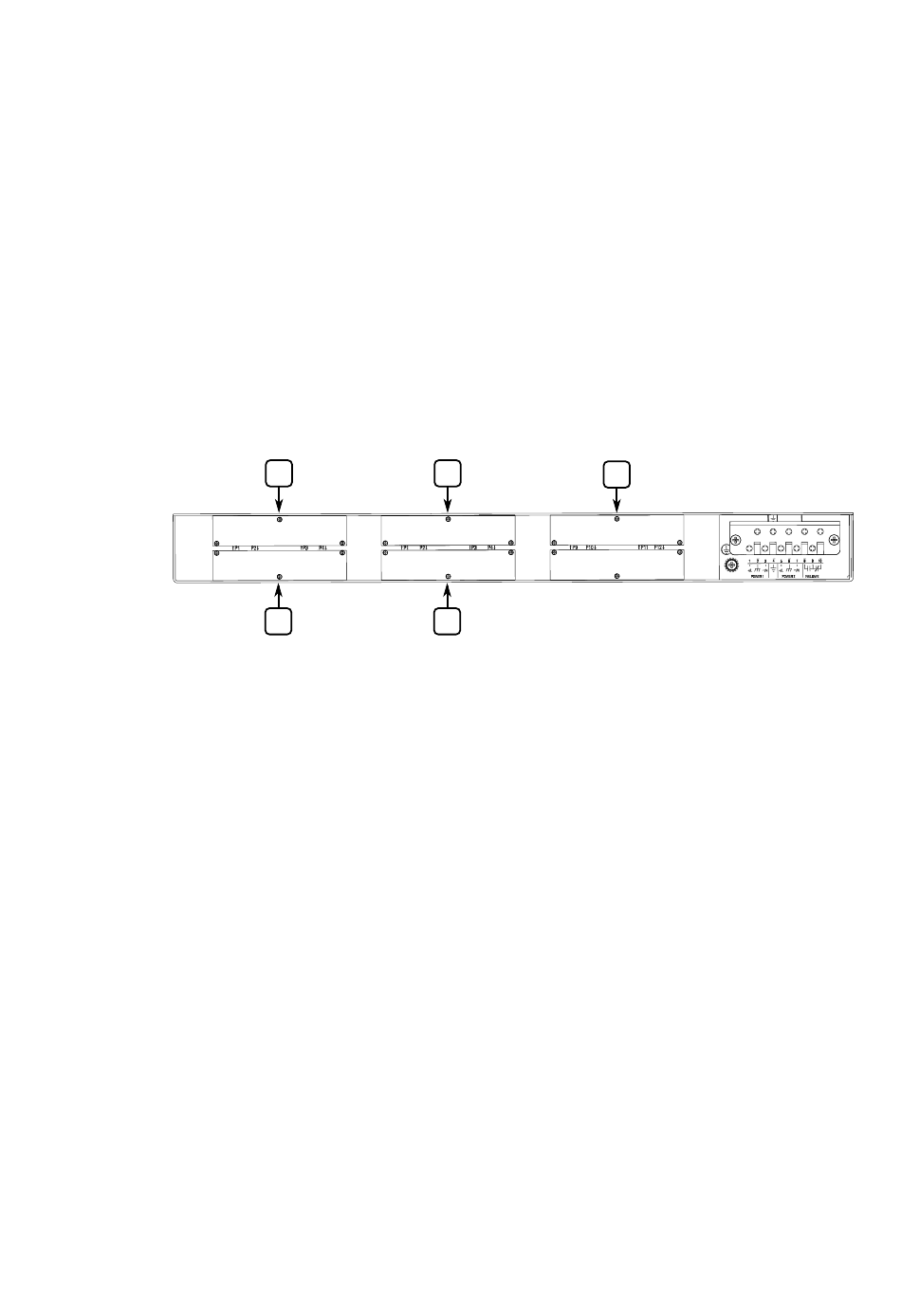

Module Assignment
Figure 4.1
Each type of module has a specific location in the RUGGEDCOM M2200 chassis:
•
•
The exact configuration of the device can be determined by reading the factory da-
ta file through the RUGGEDCOM M2200 user interface. For more information about
how to read the factory data file, refer to the RUGGEDCOM ROS Configuration Man-
ual for the RUGGEDCOM M2200.
Port LEDs
Each communication port is equipped with an LED that indicates the link/activity
state of the port.
RUGGEDCOM M2200
Installation Manual, 03/2020, C79000-G8976-1044-16
1
2
Module Assignment
Slot 5 supports a one-port fiber or copper Ethernet module up to 1 Gbps
All other ports support any combination of fiber or copper Ethernet connectors
up to 1 Gbps
3
5
4
4
21
