Refrigerator Shelf Parts - Whirlpool ED2FHEXVB00 Parts List

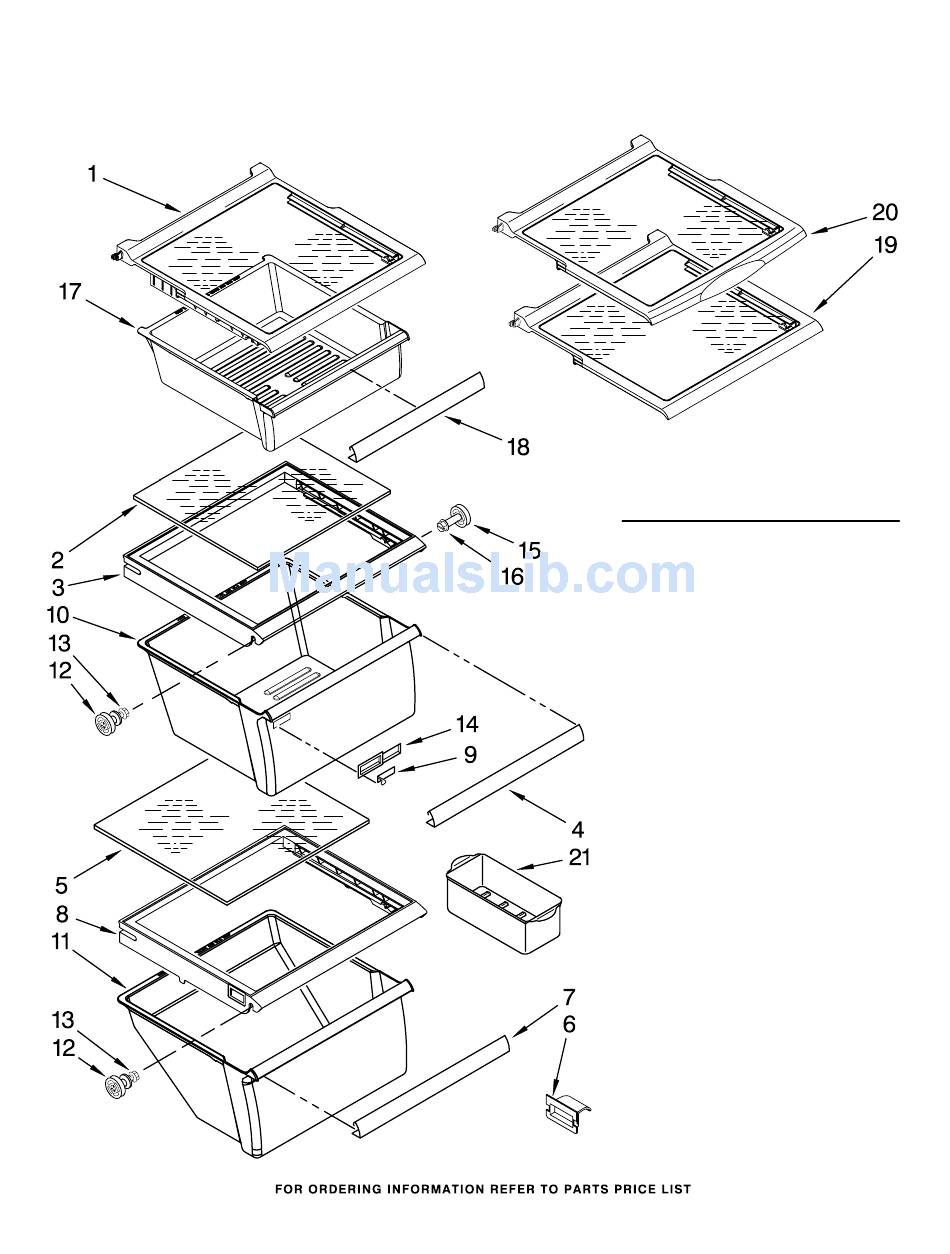

REFRIGERATOR SHELF PARTS

For Models: ED2FHEXVQ00, ED2FHEXVT00, ED2FHEXVB00, ED2FHEXVL00, ED2FHEXVS00
(White) (Biscuit) (Black)
4
(Stainless VCM) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 2309523 Shelf, Snack Pan
2 2174150 Glass, Cover
3 2209698 Cover, Crisper
4 2255593 Trim, Pan
5 2179259 Glass, Cover
6 2179350 Deflector
7 2255592 Trim, Meat Pan
8 2311726 Cover, Meat Pan
9 2179342 Slide, Humidity
Control
10 2188652 Crisper Pan
11 2188654 Meat Pan
12 2196485 Stud Assembly
13 3400894 Screw
14 2179343 Housing, Humidity
Control
15 2196483 Stud Assembly
16 8281158 Screw
17 2309518 Snack Pan
18 2309519 Trim, Handle
19 2309561 Shelf Assembly,
Spillguard
20 2309524 Shelf Assembly,
Slide−Out
21 2311722 Egg Bin
W10177406
