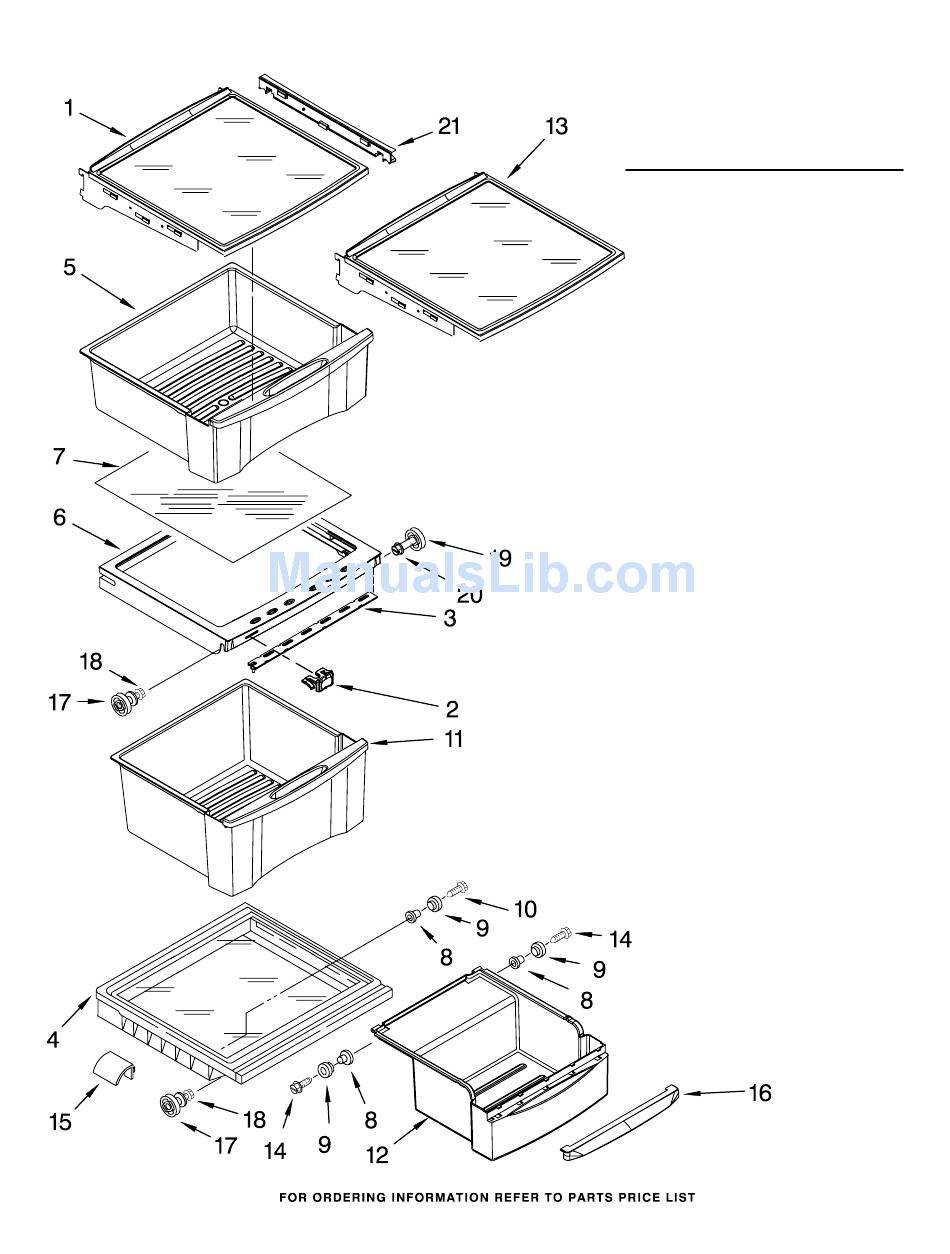

REFRIGERATOR SHELF PARTS
For Models: GC5NHAXVQ00, GC5NHAXVB00, GC5NHAXVS00, GC5NHAXVY00
(White)
(Black)
(Stainless) (Monochromatic Stainless)
4
Illus.
Part
No.
No.
DESCRIPTION
1
2223288 Shelf Assembly
2
2223309 Button, Humidity
3
2223308 Slide, Humidity
4
2203027 Cover, Meat Pan
(Includes Items
8, 9, 10 & 15)
5
2223261 Snack Pan
6
2223307 Cover, Crisper
(Includes 2 & 3)
7
2223591 Glass, Cover
8
2174478 Eyelet, Roller
9
2188212 Roller
10
489211 Screw
11
2223235 Crisper Pan
(Includes 8,
9 & 10)
12
2223526 Meat Pan
(Includes 8,
9, 14 & 16)
13
2224059 Shelf and Frame
Assembly (3)
14
489261 Screw
15
2223487 Deflector
16
2203029 Handle
17
2196485 Stud Assembly
18
3400894 Screw
19
2196483 Stud Assembly
20
8281158 Screw
21
2223320 Slide, Pan
