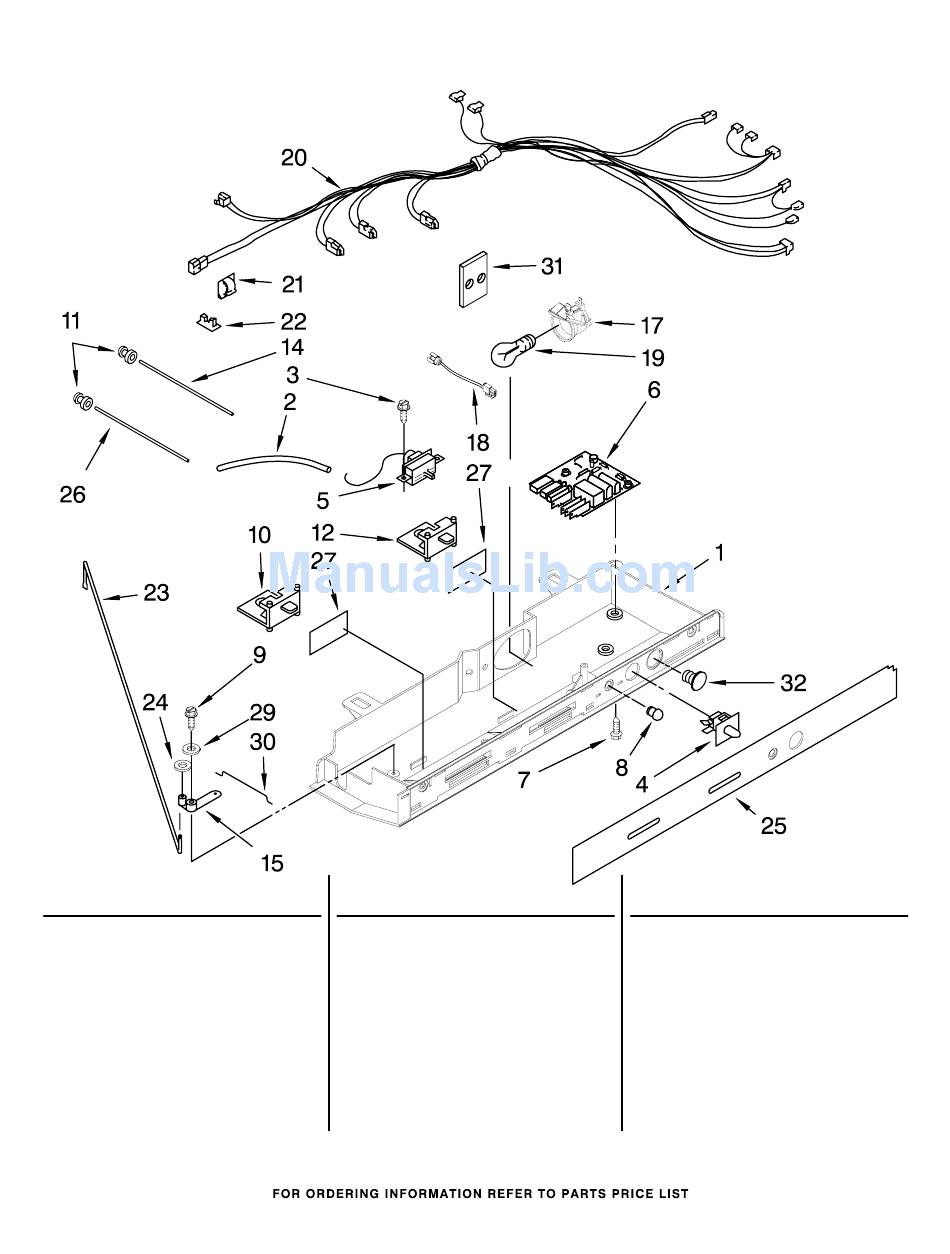

Control Parts - Whirlpool ED2FHEXVB00 Parts List

For Models: ED2FHEXVQ00, ED2FHEXVT00, ED2FHEXVB00, ED2FHEXVL00, ED2FHEXVS00
Illus. Part
No. No. DESCRIPTION
1 2311721 Control Box
2 2196001 Tube Barrier,
Thermostat
3 489214 Screw (2)
4 2149705 Light Switch
5 2161282 Thermostat
6 2303822 Electronic
Control
7 489398 Screw (2)
8 2200096 Cover, Light
Lens
9 627068 Screw

CONTROL PARTS

(White) (Biscuit)
Illus. Part
No. No.
10 2181741 Slide, Air Control
11 2172906 Grommet, Light Bar
12 2161466 Slide, Thermostat
14 2179920 Light Bar (RC)
15 2161306 Pivot Arm
17 2162085 Light Socket
18 2213462 Harness, Indicator
19 2311792 Light Bulb
20 2311632 Control Box
21 1115374 Clip, Wiring
(Black) (Stainless VCM) (Stainless)
Illus.
DESCRIPTION No.
22
23
24
25
26
27
29
Light
30
31
Harness
32
18
Part
No. DESCRIPTION
1115375 Clip, Wiring
2161308 Connecting Rod
489391 Fastener, Push−On
2311803 Front Cover,
Control Box
2179921 Light Bar (FC)
2175513 Window
489203 Spring Washer
2161307 Connecting Rod,
Short
2172931 Heat Shield
940014 Hole Plug
W10177406
