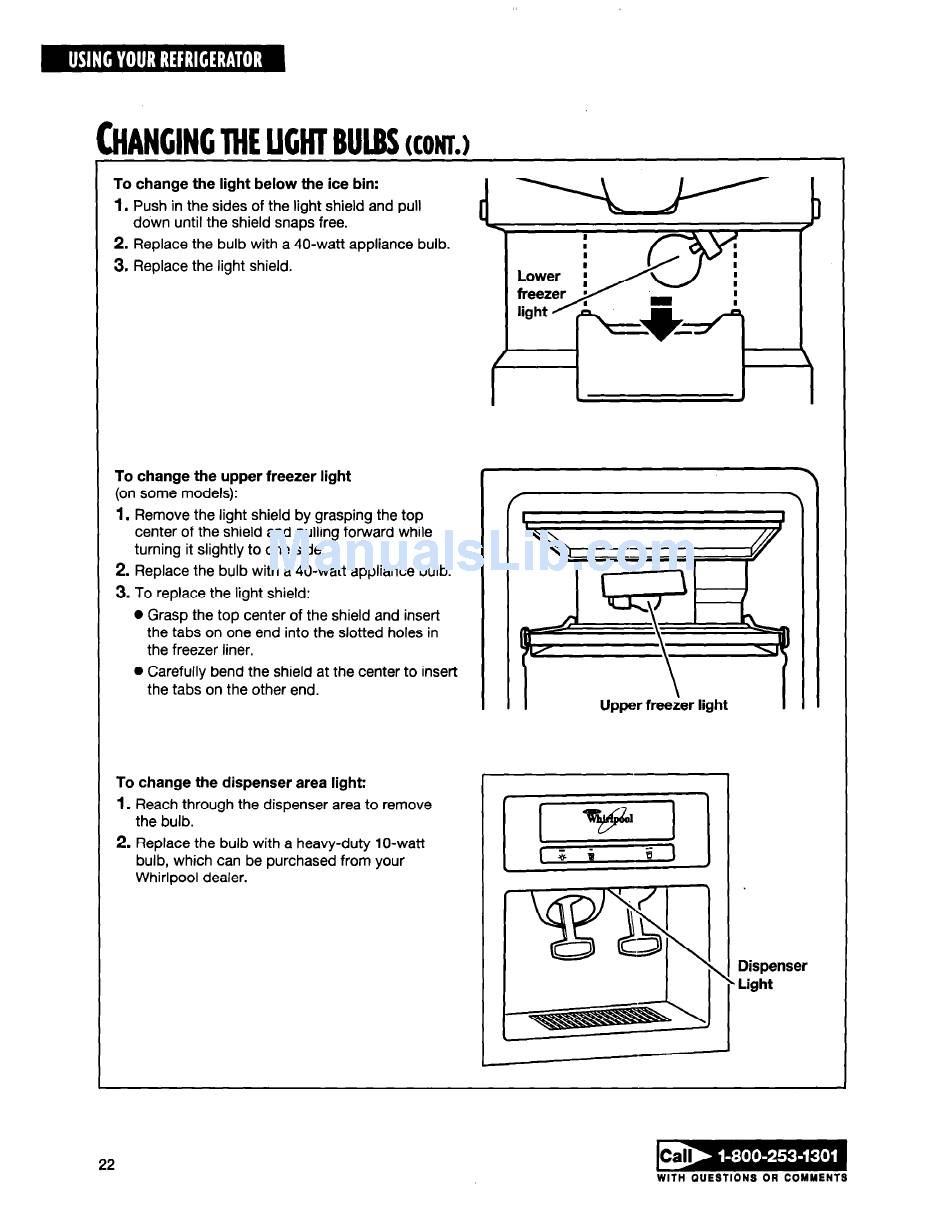

Whirlpool TimeSmart ED20TWXDN02 Use & Care Manual page 22

To change the light below the ice bin:
1.
Push in the sides of the light shield and pull
down until the shield snaps free.
2. Replace the bulb with a 40-watt appliance bulb.
3. Replace the light shield.
To change the upper freezer light
(on some models):
1. Remove the light shield by grasping the top
center of the shield and pulling forward while
turning it slightly to one side.
2. Replace the bulb with a 40-watt appliance bulb.
3. To replace the light shield:
0 Grasp the top center of the shield and insert
the tabs on one end into the slotted holes in
the freezer liner.
0 Carefully bend the shield at the center to insert
the tabs on the other end.
To change the dispenser area light:
1. Reach through the dispenser area to remove
the bulb.
2. Replace the bulb with a heavy-duty lo-watt
bulb, which can be purchased from your
Whirlpool dealer.
I I
Upper freeier light
Dispenser
Light
22
WITH QUESTIONS OR COMMENTS
